GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL COVER,CYLINDER HEADCYLINDER HEADCYLINDERCRANKCASECRANKCASE COVERCRANKSHAFTSTARTER CLUTCHCRANK BALANCERCAMSHAFT/VALVEMUFFLEROIL PUMPCAM CHAINTHROTTLE BODYAIR CLEANERFUEL PUMPOIL COOLERCLUTCHTRANSMISSIONGEAR SHIFTING

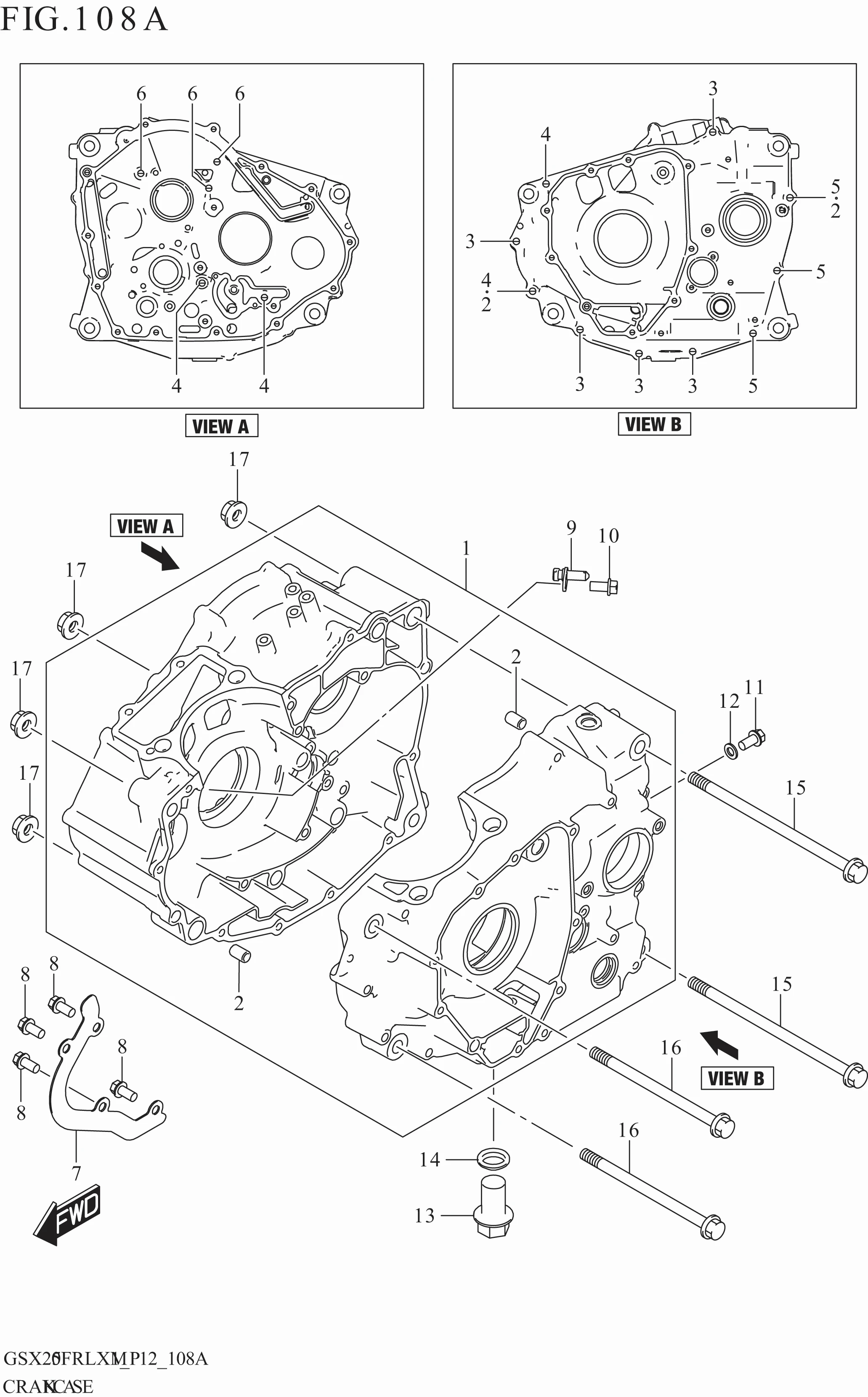

CRANKCASE

CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 11300-41880-000 CRANKCASE SET 1 Rp1.368.500
2 04211-09149-000 .PIN (8.5X18X2.3) 2 Rp3.000
3 01547-0645A-000 .BOLT 5 Rp7.000
4 01547-0655A-000 .BOLT 4 Rp7.500
5 01547-0665A-000 .BOLT 3 Rp7.500
6 01547-0680A-000 .BOLT 3 Rp4.000
7 11323-41K00-000 SEPARATOR,CRANKCASE OIL 1 Rp10.000
8 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 4 Rp3.000
9 11390-41K00-000 JET,PISTON COOLING 1 Rp61.500
10 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 1 Rp3.000
11 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 1 Rp3.000
12 09168-06004-000 GASKET (6.2X11X1.2) 1 Rp2.500
13 09247-12106-000 PLUG (12X20) 1 Rp8.500
14 09168-12L02-000 GASKET,TDC PLUG 1 Rp5.500
15 09103-10077-000 BOLT (10X140) 2 Rp61.000
16 09103-10709-000 BOLT (10X85) 2 Rp46.000
17 08319-3110A-000
SUB: 08319-3110B-000		 NUT 4 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
