GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body

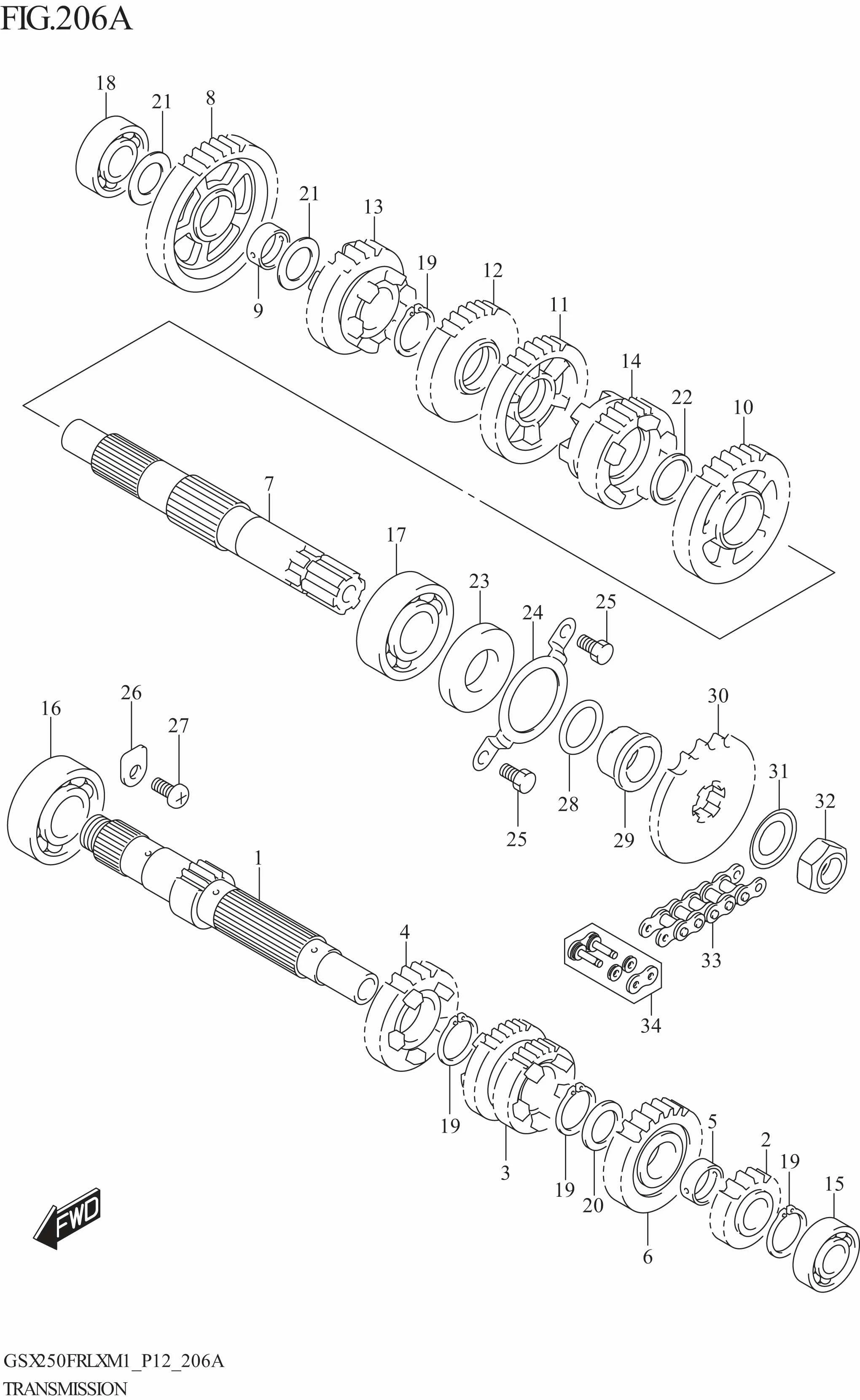

TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs
1	24121-41K00-000	SHAFT,COUNTER	1	Rp382.500
2	24221-41K00-000	GEAR,2ND DRIVE (NT:16)	1	Rp122.000
3	24231-41K00-000	GEAR,3RD & 4TH DRIVEÂ	1	Rp224.000
4	24251-41K00-000	GEAR,5TH DRIVE (NT:22)	1	Rp168.000
5	24252-41K00-000	BUSH,5TH DRIVE GEAR	1	Rp28.500
6	24261-41K00-000	GEAR,6TH DRIVE (NT:23)	1	Rp184.500
7	24130-41K00-000	SHAFT,DRIVE	1	Rp492.500
8	24311-41K01-000	GEAR,1ST DRIVEN (NT:30)	1	Rp151.500
9	24312-34J12-000	BUSH,1ST DRIVEN GEAR	1	Rp25.000
10	24321-41K02-000 SUB: 24321-41K01-000	GEAR,2ND DRIVEN (NT:17)	1	Rp140.000
11	24331-41K01-000	GEAR,3RD DRIVEN (NT:25)	1	Rp158.000
12	24341-41K01-000	GEAR,4TH DRIVEN (NT:20)	1	Rp154.500
13	24351-41K00-000	GEAR,5TH DRIVEN (NT:21)	1	Rp231.500
14	24361-41K00-000	GEAR,6TH DRIVEN (NT:19)	1	Rp219.500
15	09262-17055-000	BEARING,CNTR SHAFT LH	1	Rp68.000
16	08112-63040-000	BEARING,CNTR SHAFT RH	1	Rp97.000
17	09262-25189-000	BEARING,DRIVE SHAFT LH	1	Rp131.500
18	08110-62030-000	BEARING	1	Rp33.500
19	DISCONTINUE SUB: 09380-22018-000	CIRCLIP	4	-
20	09181-22167-000	SHIM (22X30X1.0)	1	Rp18.500
21	DISCONTINUE SUB: 09380-25016-000	CIRCLIP,2ND DRIVEN GEAR	1	-
22	08211-17241-000	WASHER	2	Rp14.000
23	09283-34016-000	SEAL,DRIVE SHAFT OIL	1	Rp63.500
24	24751-41K00-000	RETAINER,DRIVE SHAFT OIL SEAL	1	Rp9.000
25	01500-0610A-000	BOLT	2	Rp6.500
26	24741-20A10-000	RETAINER,SHIFT CAM R BEARING	2	Rp3.500
27	02112-0612A-000	SCREW	2	Rp3.500
28	09280-24015-000	O-RING	1	Rp8.500
29	27531-41K00-000	SPACER,ENGINE SPROCKET	1	Rp63.500
30	27511-41K00-000	SPROCKET,ENGINE (NT:13)	1	Rp137.500
31	09167-25019-000	WASHER,LOCK (25.3X41.6X1.0)	1	Rp13.500
32	09140-20022-000	NUT,ENGINE SPROCKET	1	Rp222.500
33	27600-41K00-108	CHAIN ASSY,DRIVE (DID520VF3)	1	Rp712.500
34	27620-41K00-000	JOINT SET,CHAIN	1	Rp228.500
