Preview Engine Transmission Electrical Suspension Body

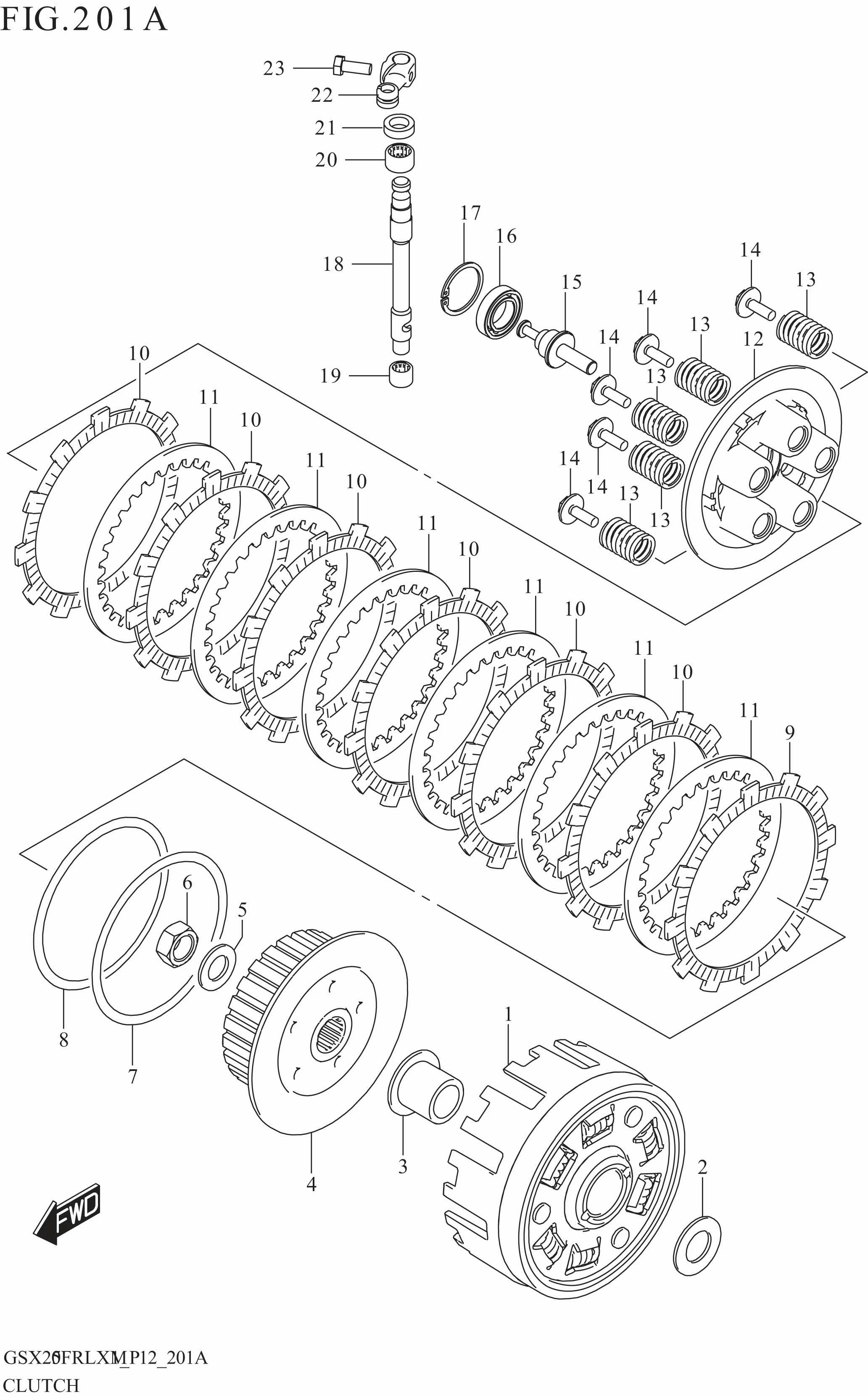

No	No. Part	Description	Qty	Price Per Pcs
1	21200-41K00-000	GEAR ASSY,PRIMARY DRIVENÂ	1	Rp1.548.500
2	DISCONTINUE SUB: 08211-20363-000	WASHER	1	-
3	21251-41K10-000	SPACER,PRIMARY DRIVEN GEAR	1	Rp134.500
4	21411-41K00-000	HUB,CLUTCH SLEEVE	1	Rp171.000
5	08211-16283-000	WASHER,CLUTCH SLEEVE HUB NUT	1	Rp9.000
6	09140-16038-000	NUT,CLUTCH SLEEVE HUB	1	Rp157.500
7	21471-41K00-000	SEAT,WAVE WASHER	1	Rp40.000
8	21472-41K00-000	WASHER,CLUTCH PLATE WAVE	1	Rp42.000
9	21442-41K00-000	PLATE,CLUTCH DRIVE NO.2	1	Rp133.500
10	21441-41K00-000	PLATE,CLUTCH DRIVE NO.1Â	6	Rp154.000
11	21451-41K00-000	PLATE,CLUTCH DRIVEN (T:1.6)	6	Rp24.000
12	21462-41K00-000	DISC,CLUTCH PRESSURE	1	Rp116.500
13	21481-41K00-000	SPRING,CLUTCH	5	Rp15.500
14	21482-41K00-000	BOLT,CLUTCH SPRING	5	Rp67.000
15	23121-41K00-000	PIECE,CLUTCH PULL	1	Rp29.500
16	08110-69030-000	BEARING,CLUTCH RELEASE	1	Rp63.000
17	08331-41309-000	CIRCLIP	1	Rp8.500
18	23122-41K00-000	CAMSHAFT,CLUTCH RELEASE	1	Rp62.500
19	09263-09002-000	BEARING,CL RELEASE PINION NO.2	1	Rp39.000
20	09263-12030-000	BEARING,CL RELEASE PINION NO.1	1	Rp29.000
21	09285-11001-000	OIL SEAL (11X17X5)	1	Rp10.500
22	23271-41K00-000	ARM,CLUTCH RELEASE	1	Rp29.000
23	01500-0616A-000 SUB: 01500-0616B-000	BOLT	1	Rp6.500
