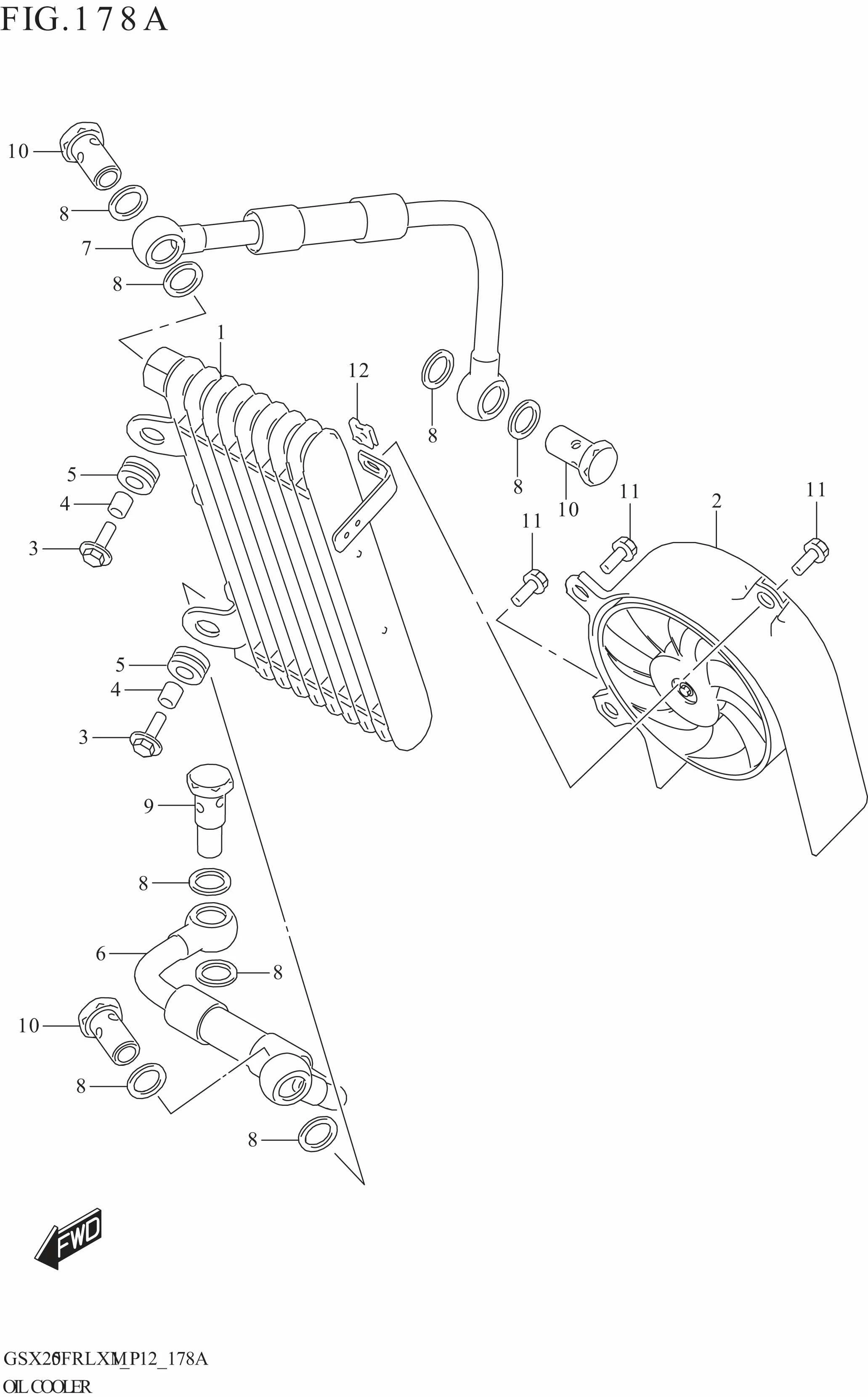

OIL COOLER

OIL COOLER
No No. Part Description Qty Price Per Pcs Remarks
1 16600-41K00-000 COOLER ASSY,OIL 1 Rp1.212.500
2 16800-41K00-000 FAN ASSY,OIL COOLER 1 Rp1.063.000
3 09116-06111-000 BOLT (6X20) 2 Rp7.000
4 09180-06310-000 SPACER (6.5X10X10) 2 Rp5.000
5 09320-10015-000 CUSHION 2 Rp5.500
6 16460-41K00-000 HOSE,OIL COOLER INLET 1 Rp1.406.000
7 16470-41K00-000 HOSE,OIL COOLER OUTLET 1 Rp1.448.500
8 09168-16002-000 GASKET (16X22X2) 8 Rp13.000
9 09360-14016-000 BOLT,OIL COOLER HOSE UNION 1 Rp72.000
10 09360-16002-000 UNION (16X32) 3 Rp52.500
11 01550-0612A-000 BOLT 3 Rp3.500
12 17802-41K00-000 NUT 3 Rp31.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
