GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL COVER,CYLINDER HEADCYLINDER HEADCYLINDERCRANKCASECRANKCASE COVERCRANKSHAFTSTARTER CLUTCHCRANK BALANCERCAMSHAFT/VALVEMUFFLEROIL PUMPCAM CHAINTHROTTLE BODYAIR CLEANERFUEL PUMPOIL COOLERCLUTCHTRANSMISSIONGEAR SHIFTING

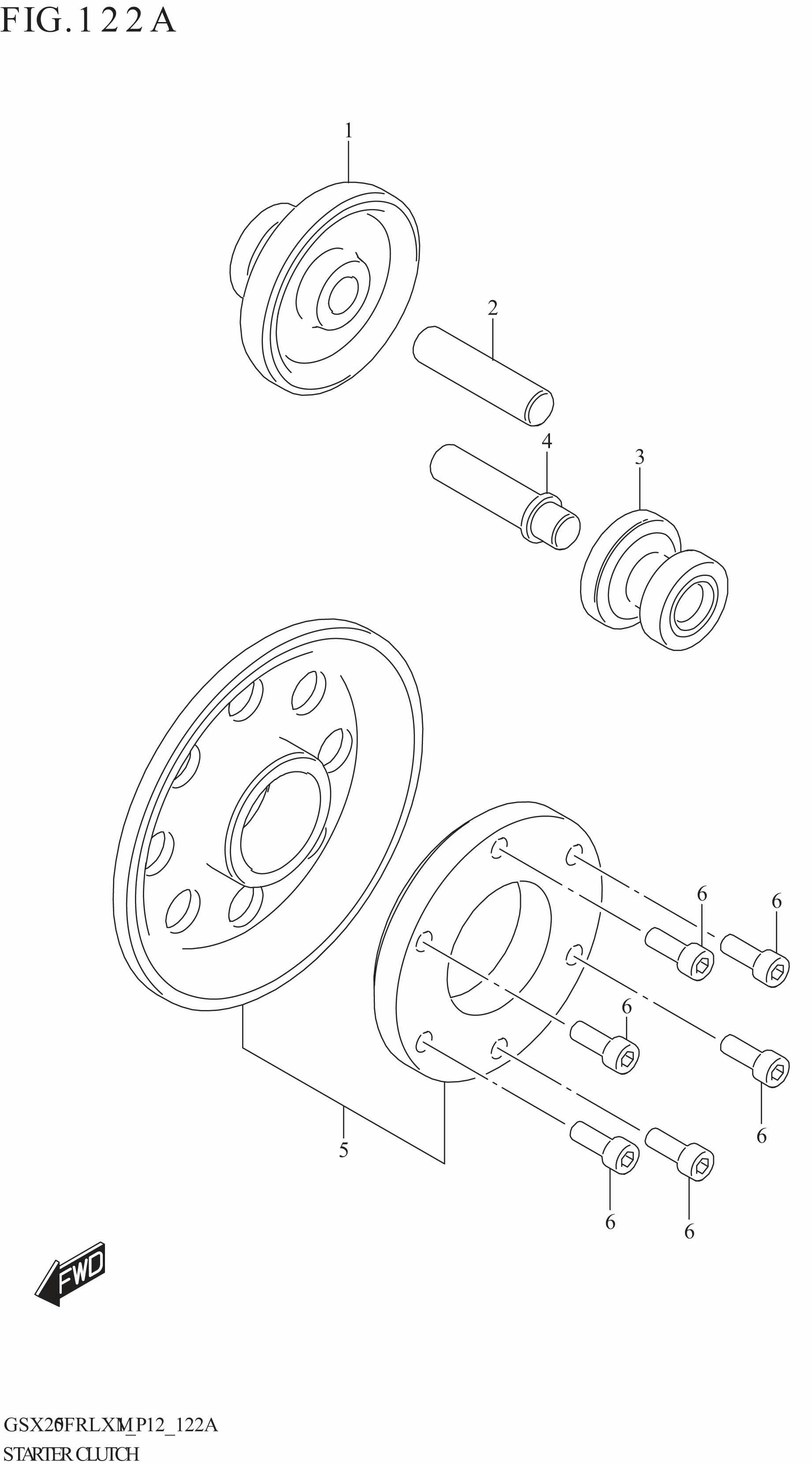

STARTER CLUTCH

STARTER CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 12611-41K00-000 GEAR,STARTER IDLE NO.1 1 Rp173.500
2 09202-12003-000 PIN (12X50.5) 1 Rp31.000
3 12612-41K00-000 GEAR,STARTER IDLE NO.2 1 Rp145.500
4 12616-41K00-000 SHAFT,STARTER IDLE GEAR NO.2 1 Rp20.500
5 12600-41870-000 CLUTCH SET,STARTER (NT:61) 1 Rp819.500
6 07130-0616A-000 BOLT 6 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
