DF4A 5A 6A

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 111A CYLINDER HEADFIG 113A CYLINDER BLOCKFIG 116A CRANKSHAFTFIG 122A INTAKE MANIFOLDFIG 128A CARBURETOR (DF4A)FIG 128B CARBURETOR (DF5A)FIG 128C CARBURETOR (DF6A)FIG 146A FUEL PUMP (DF4A)FIG 146B FUEL PUMP (DF5A)(DF6A)FIG 160A WATER PUMPFIG 167A RECOIL STARTERFIG 175A OIL PUMP

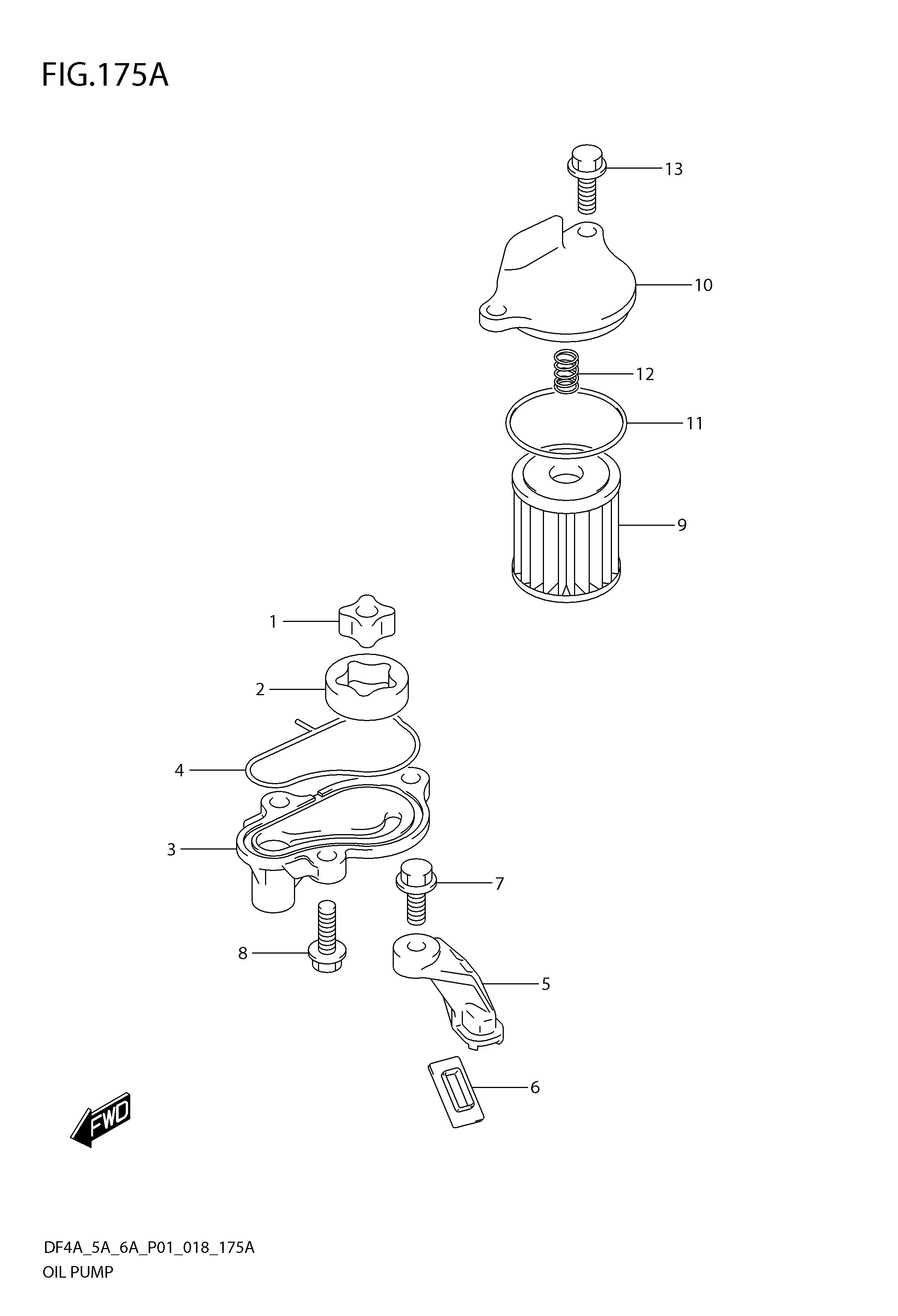

FIG 175A OIL PUMP

FIG 175A OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16131-97L00-000 ROTOR, OIL PUMP INNER 1 Rp53.500
2 16132-97L00-000 ROTOR, OIL PUMP OUTER 1 Rp53.500
3 16161-97L00-000 PLATE, OIL PUMP ROTOR 1 Rp149.500
4 16165-97L00-000 SEAL, OIL PUMP COVER 1 Rp66.500
5 16520-97L00-000 STRAINER, OIL 1 Rp78.000
6 16524-97L01-000
SUB: 16524-97L00-000		 GROMMET, OIL STRAINER 1 Rp33.000
7 01550-0620A-000 BOLT 1 Rp3.500
8 01547-0620C-000 BOLT 3 Rp13.000
9 16510-16H11-000
SUB: 16510B16H11N000		 FILTER, ENGINE OIL 1 Rp14.500
10 16512-97L00-000 CAP, OIL FILTER 1 Rp177.000
11 09280-39001-000 O RING (D:2,ID:38.5) 1 Rp19.000
12 09440-10038-000 SPRING 1 Rp19.500
13 01550-0616C-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
