Preview Engine Transmission Electrical Suspension Body

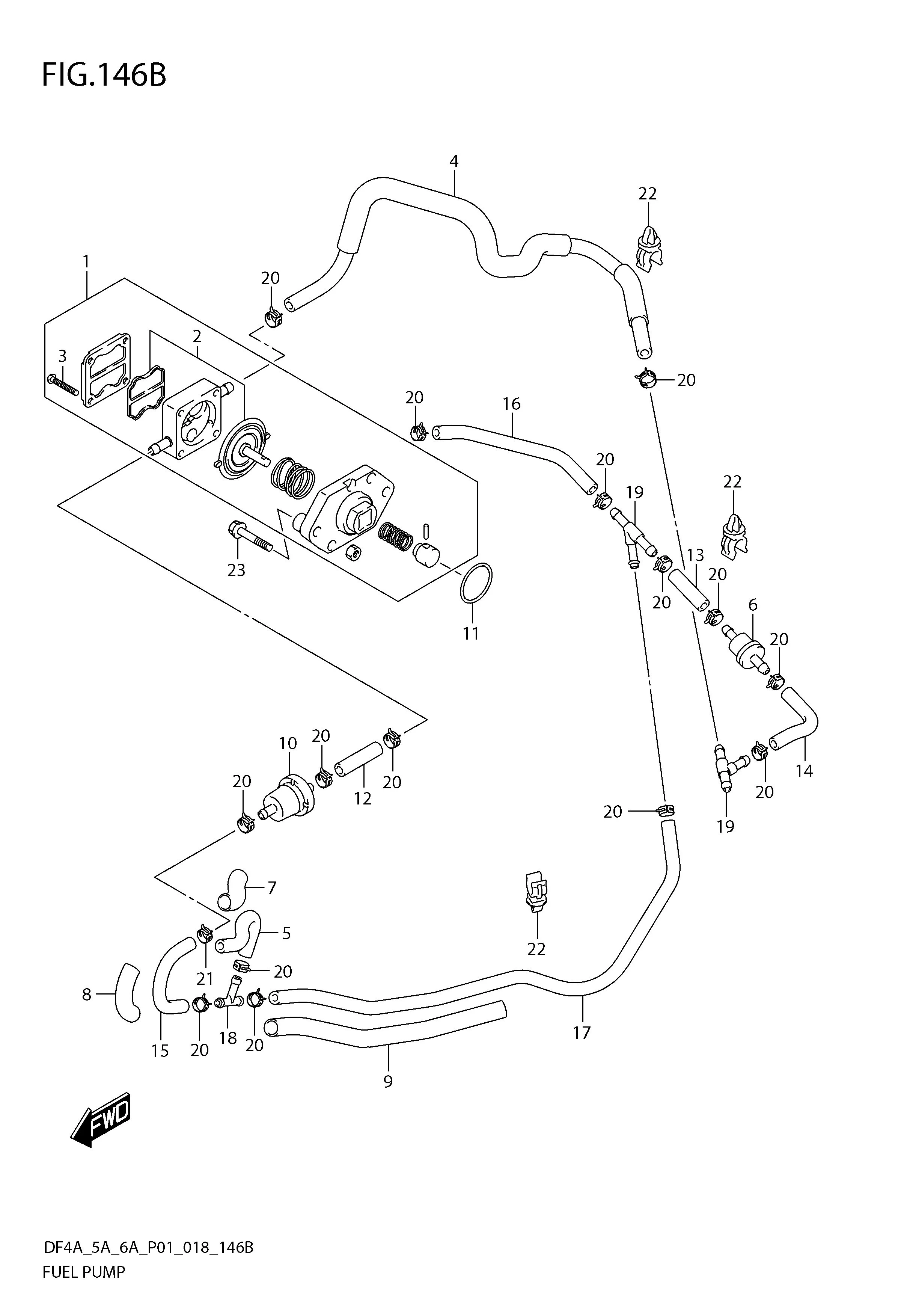

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15100-91J03-000 SUB: 15100-91J02-000	PUMP ASSY, FUEL	1	Rp1.265.500
2	15170-91J01-000	.DIAPHRAGM SET	1	Rp165.000
3	15251-91J00-000	.SCREW	4	Rp21.000
4	15191-97L00-000	HOSE, FUEL (PUMP TO ELB2)	1	Rp191.000
5	15192-97L00-000	HOSE, FUEL (CONN TO ELB3)	1	Rp69.000
6	15850-97L00-000	VALVE, FUEL RTN CHECK	1	Rp120.500
7	33833-97L00-000	PROTECTOR, FUEL HOSE	1	Rp14.000
8	33833-97L10-000	PROTECTOR, FUEL HOSE	1	Rp14.500
9	33833-97L20-000	PROTECTOR, FUEL HOSE	1	Rp28.000
10	44330-13H00-000 SUB: 44330B13H00N000	FILTER, FUEL	1	Rp142.000
11	DISCONTINUE SUB: 09280-27006-000	O RING (D:2, ID:27.5)	1	-	FILTER TO PUMP
12	09343-50L01-040	HOSE (5X10X40)	1	Rp19.500	3WAY TO VALVE
13	09343-50L01-040	HOSE (5X10X40)	1	Rp19.500	VALVE TO 3WAY
14	09343-50L01-080	HOSE (5X10X80)	1	Rp31.500	JOINT,3WAY TO FILTER
15	09343-50L01-110	HOSE (5X10X110)	1	Rp43.000	COCK TO 3WAY
16	09343-50L01-120	HOSE (5X10X120)	1	Rp46.500	3WAY TO JOINT,3WAY
17	09343-50L01-440	HOSE (5X10X440)	1	Rp181.500
18	09367-06002-000	JOINT, 3 WAY	1	Rp21.000
19	09367-06007-000	3 WAY	2	Rp30.500
20	09401-09404-000	CLIP	15	Rp16.000
21	09401-11424-000	CLIP	1	Rp16.000
22	09403-09001-000	CLAMP	3	Rp15.000
23	01550-0630C-000	BOLT	2	Rp15.000
