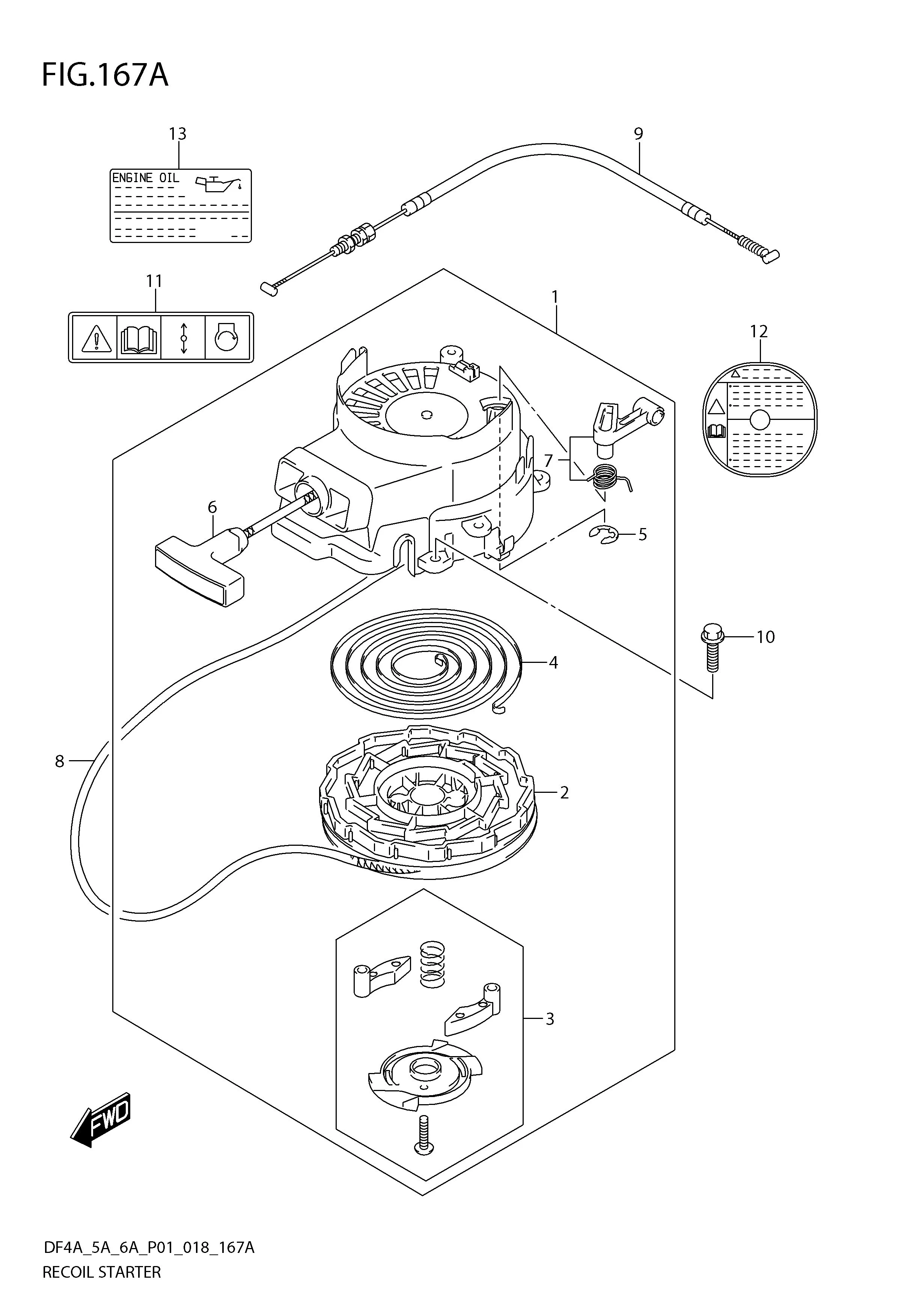

FIG 167A RECOIL STARTER

FIG 167A RECOIL STARTER
No No. Part Description Qty Price Per Pcs Remarks
1 18100-97L00-000 STARTER ASSY, RECOIL 1 Rp848.500
2 18121-97L00-000 .REEL 1 Rp141.500
3 18130-97L00-000 .RATCHET SET 1 Rp201.000
4 18142-97L00-000 .SPRING, SPIRAL 1 Rp108.500
5 18178-98310-000 .CIRCLIP 1 Rp7.500
6 18210-95L00-000 .GRIP ASSY 1 Rp114.000
7 18280-91J00-000 .NSI SET 1 Rp56.000 OPT
8 99000-81157-50M ROPE 1 Rp1.913.500 L:50000->1200
9 18290-97L00-000 CABLE ASSY, NSI 1 Rp106.500
10 01550-0620C-000 BOLT 3 Rp5.500
11 69711-91J10-000 LABEL, S.I.G.P 1 Rp11.500
12 61472-97L00-000 LABEL, RECOIL STARTER 1 Rp19.000
13 61494-97L00-000 LABEL, OIL & CLEARANCE 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
