DF4A 5A 6A

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 111A CYLINDER HEADFIG 113A CYLINDER BLOCKFIG 116A CRANKSHAFTFIG 122A INTAKE MANIFOLDFIG 128A CARBURETOR (DF4A)FIG 128B CARBURETOR (DF5A)FIG 128C CARBURETOR (DF6A)FIG 146A FUEL PUMP (DF4A)FIG 146B FUEL PUMP (DF5A)(DF6A)FIG 160A WATER PUMPFIG 167A RECOIL STARTERFIG 175A OIL PUMP

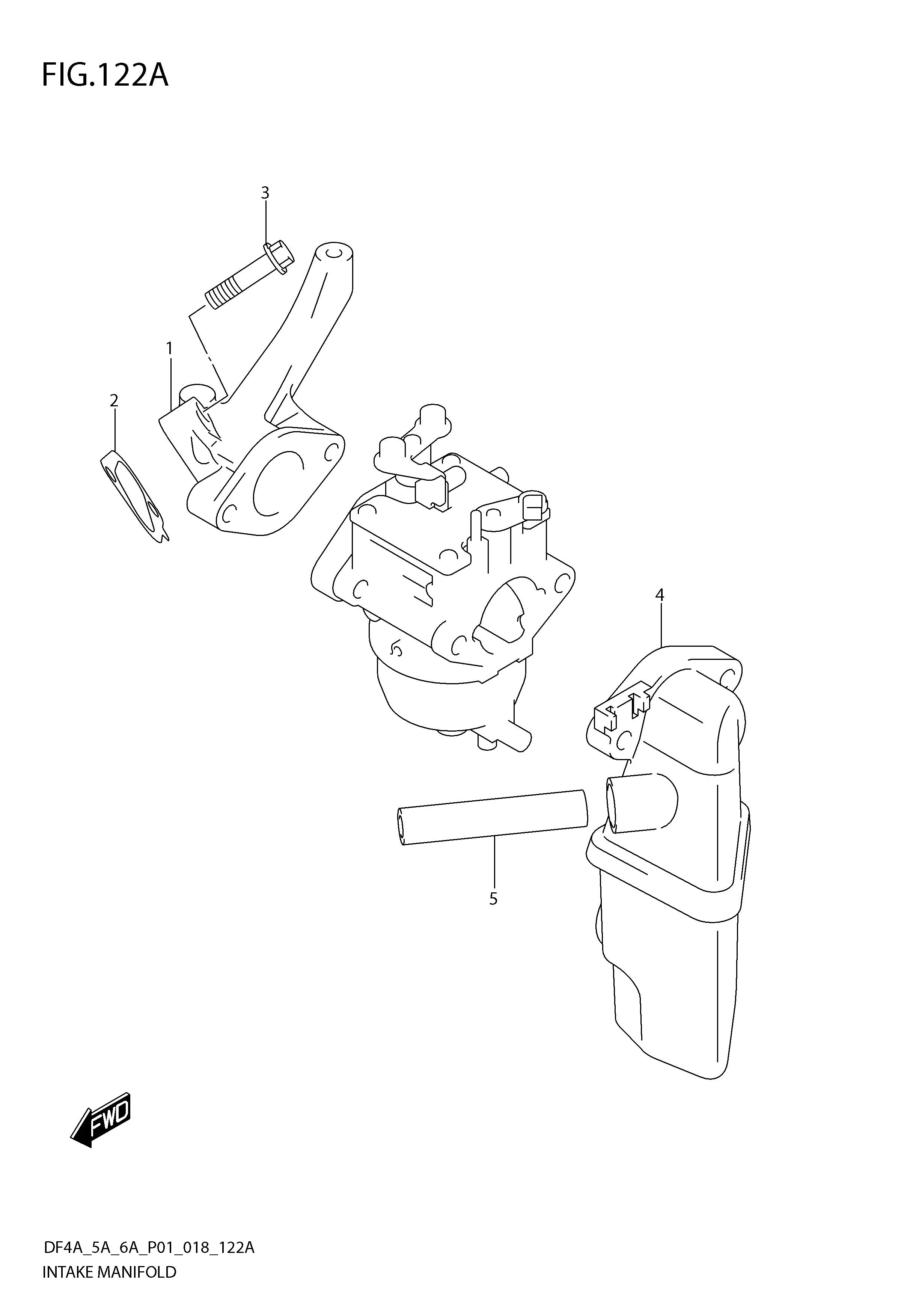

FIG 122A INTAKE MANIFOLD

FIG 122A INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 13111-97L00-000 MANIFOLD, INTAKE 1 Rp310.000
2 13119-97L00-000 GASKET, INLET MANIFOLD 1 Rp25.000
3 01547-0625C-000 BOLT 2 Rp13.000
4 13810-97L00-000 SILENCER 1 Rp404.000
5 11174-97L00-000 HOSE, BREATHER 1 Rp10.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
