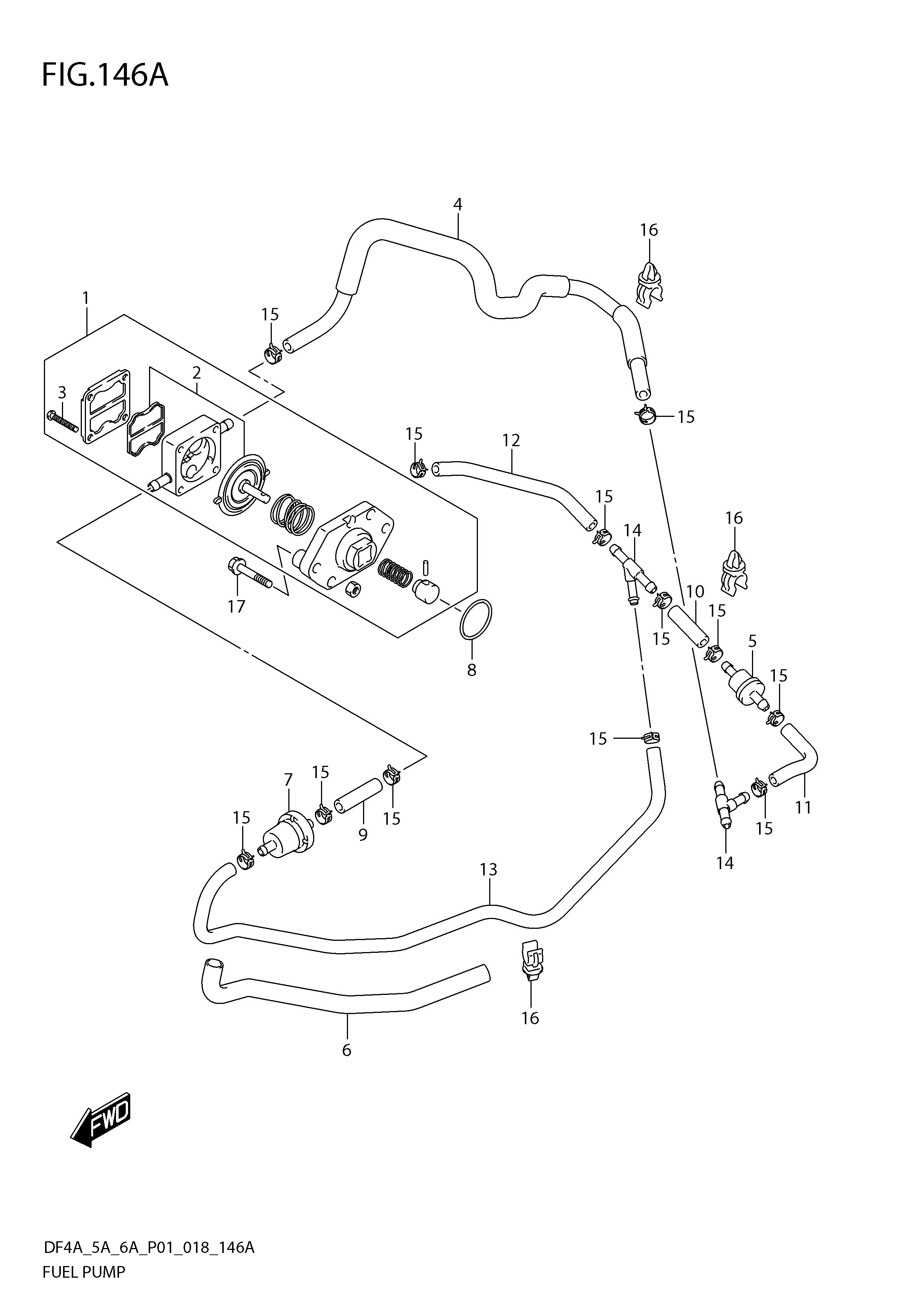

FIG 146A FUEL PUMP (DF4A)

FIG 146A FUEL PUMP (DF4A)
No No. Part Description Qty Price Per Pcs Remarks
1 15100-91J03-000
SUB: 15100-91J02-000		 PUMP ASSY, FUEL 1 Rp1.265.500
2 15170-91J01-000 .DIAPHRAGM SET 1 Rp165.000
3 15251-91J00-000 .SCREW 4 Rp21.000
4 15191-97L00-000 HOSE, FUEL (PUMP TO ELB2) 1 Rp191.000
5 15850-97L00-000 VALVE, FUEL RTN CHECK 1 Rp120.500
6 33833-97L30-000 PROTECTOR, FUEL HOSE 1 Rp42.000
7 44330-13H00-000
SUB: 44330B13H00N000		 FILTER, FUEL 1 Rp142.000
8 DISCONTINUE
SUB: 09280-27006-000		 O RING (D:2,ID:27.5) 1 - FILTER TO PUMP
9 09343-50L01-040 HOSE (5X10X40) 1 Rp19.500 3WAY TO VALVE
10 09343-50L01-040 HOSE (5X10X40) 1 Rp19.500 VALVE TO 3WAY
11 09343-50L01-080 HOSE (5X10X80) 1 Rp31.500 COCK TO 3WAY
12 09343-50L01-120 HOSE (5X10X120) 1 Rp46.500 3WAY TO FILTER
13 09343-50L01-550 HOSE (5X10X550) 1 Rp206.500
14 09367-06007-000 3 WAY 2 Rp30.500
15 09401-09404-000 CLIP 12 Rp16.000
16 09403-09001-000 CLAMP 3 Rp15.000
17 01550-0630C-000 BOLT 2 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
