DF4A 5A 6A

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 111A CYLINDER HEADFIG 113A CYLINDER BLOCKFIG 116A CRANKSHAFTFIG 122A INTAKE MANIFOLDFIG 128A CARBURETOR (DF4A)FIG 128B CARBURETOR (DF5A)FIG 128C CARBURETOR (DF6A)FIG 146A FUEL PUMP (DF4A)FIG 146B FUEL PUMP (DF5A)(DF6A)FIG 160A WATER PUMPFIG 167A RECOIL STARTERFIG 175A OIL PUMP

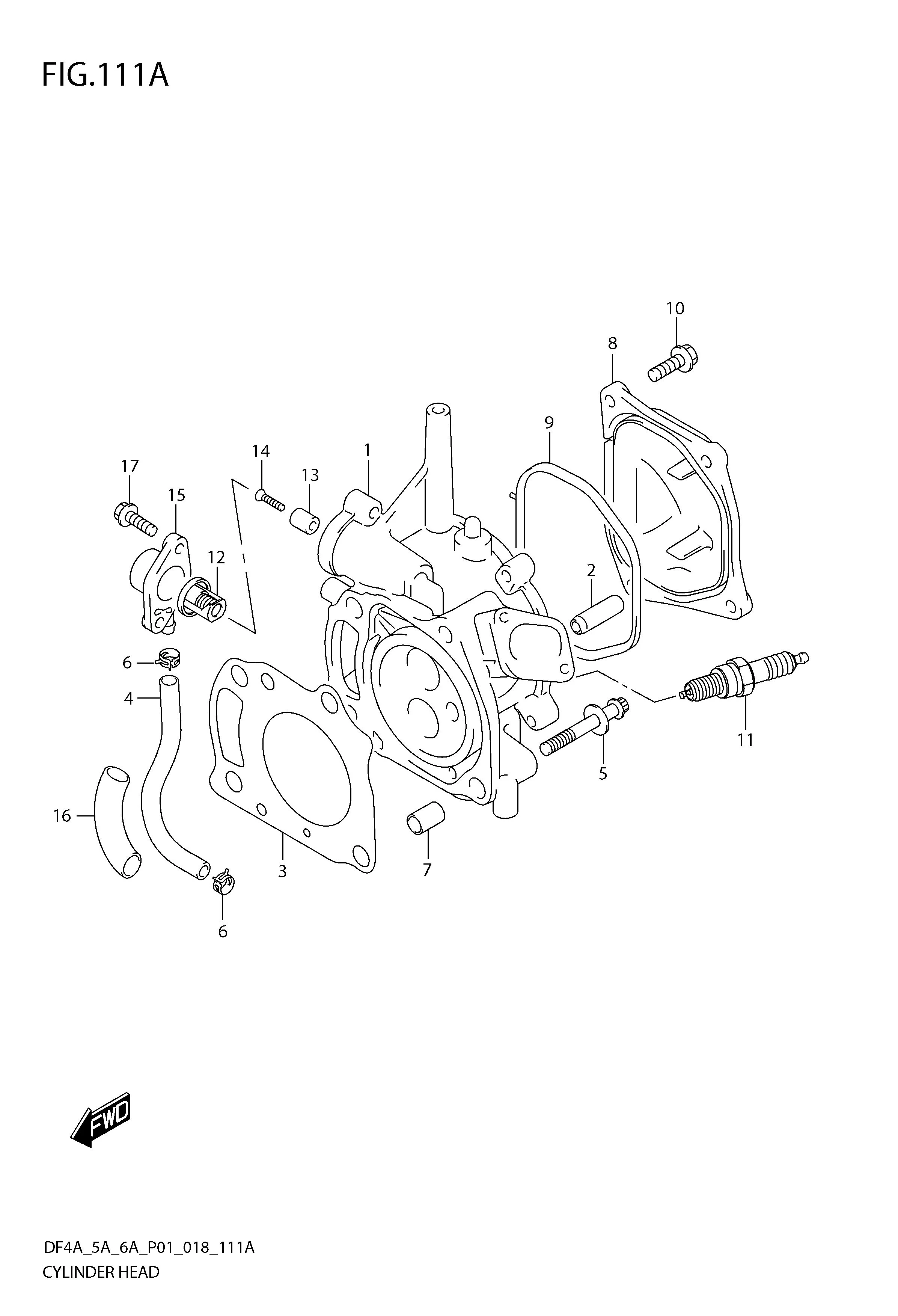

FIG 111A CYLINDER HEAD

FIG 111A CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11110-97L00-000 HEAD, CYLINDER 1 Rp2.894.000 OPT
2 11115-93E00-001 GUIDE, VALVE (OS:0.3) 2 Rp194.500
3 11141-97L00-000 GASKET, CYLINDER HEAD 1 Rp201.500 L:600->150
4 09352-70119-600
SUB: 09352-70113-600		 HOSE (7X11X600) 1 Rp86.500
5 11117-91JL0-000 BOLT, CYLINDER HEAD 4 Rp27.500
6 09401-10412-000 CLIP 2 Rp16.000
7 04211-11169-000 PIN 2 Rp2.000
8 11170-97L00-000 COVER, CYLINDER HEAD 1 Rp139.500
9 11189-97L00-000 GASKET, CYLINDER HEAD COVER 1 Rp72.500
10 01550-0620C-000 BOLT 4 Rp5.500 NGK
11 09482-00L04-000 SPARK PLUG (CPR6EA-9) 1 Rp85.000
12 17670-91J02-000
SUB: 17670-91J01-000		 THERMOSTAT (50?C) 1 Rp565.000
13 55321-95J00-000 ANODE, PROTECTION 1 Rp118.500
14 09126-05011-000 SCREW (5X20) 1 Rp13.000
15 17680-97L00-000 COVER, THERMOSTAT 1 Rp72.500
16 33833-97L40-000 PROTECTOR, WATER HOSE RETURN 1 Rp14.500
17 01550-0620C-000 BOLT 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
