Preview Engine Transmission Electrical Suspension Body

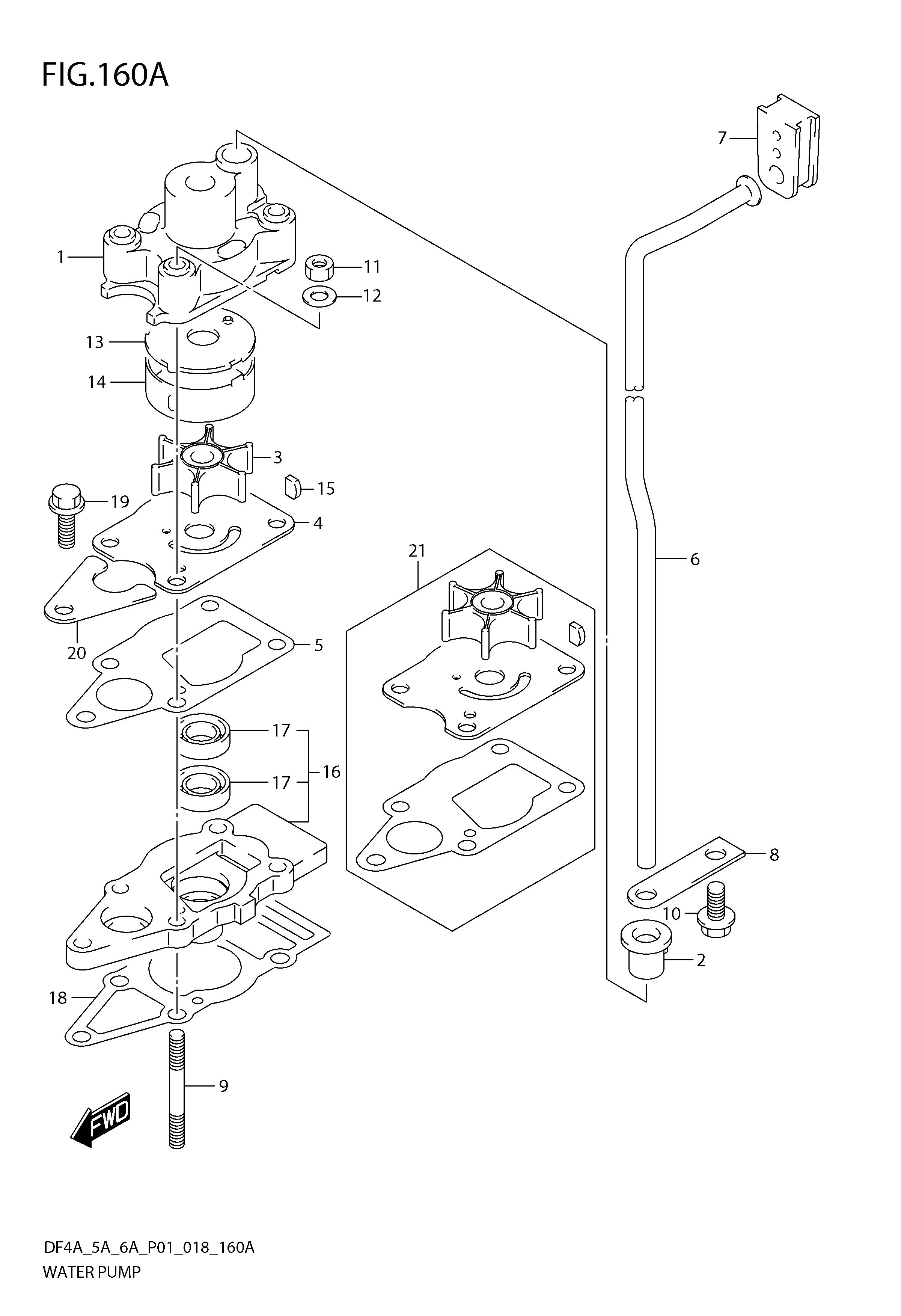

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	17410-91JL0-000	CASE ASSY, WATER PUMP	1	Rp189.500
2	DISCONTINUE SUB: 17415-98501-000	GROMMET, WATER PUMP CASE	1	-
3	17461-985M0-000	IMPELLER, WATER PUMP	1	Rp241.000
4	17471-98610-000	PANEL, PUMP CASE UNDER	1	Rp69.000
5	17472-91J00-000	GASKET, PUMP CASE PANEL	1	Rp9.407	W/TRANSOM(S)
6-1	17561-97L00-000	TUBE, WATER (S)	1	Rp145.000	W/TRANSOM(L)
6-2	17561-97L10-000	TUBE, WATER (L)	1	Rp122.000
7	17563-97L00-000	GROMMET, WATER TUBE UPPER	1	Rp37.500
8	17564-98600-000	GUIDE, WATER TUBE	1	Rp26.500
9	09108-06146-000	STUD BOLT	4	Rp35.000
10	09116-06225-000	BOLT (6X15)	1	Rp12.500
11	29141-93J00-000	NUT	4	Rp18.500
12	09160-06082-000	WASHER (6.5X13X1.0)	4	Rp10.500
13	17412-91JL0-000	PANEL, WATER PUMP CASE UPPER	1	Rp29.000
14	17413-91JL0-000	SLEEVE, WATER PUMP CASE	1	Rp41.000
15	DISCONTINUE SUB: 09420-03002-000	KEY	1	-
16	56130-91J20-000	HOUSING ASSY, DRIVE SHAFT BRG	1	Rp189.500
17	09282-10008-000	.OIL SEAL (10X21X4.5)	2	Rp31.500
18	56132-91J00-000	GASKET, DRIVE SHAFT HOUSING	1	Rp10.000
19	09116-06229-000	BOLT (6X25)	1	Rp20.500
20	25215-98601-000	STOPPER, SHIFT ROD GUIDE	1	Rp22.000	OPT
21	17400-986L1-000	KIT, WATER PUMP REPAIR	1	Rp170.200
