Preview Engine Transmission Electrical Suspension Body

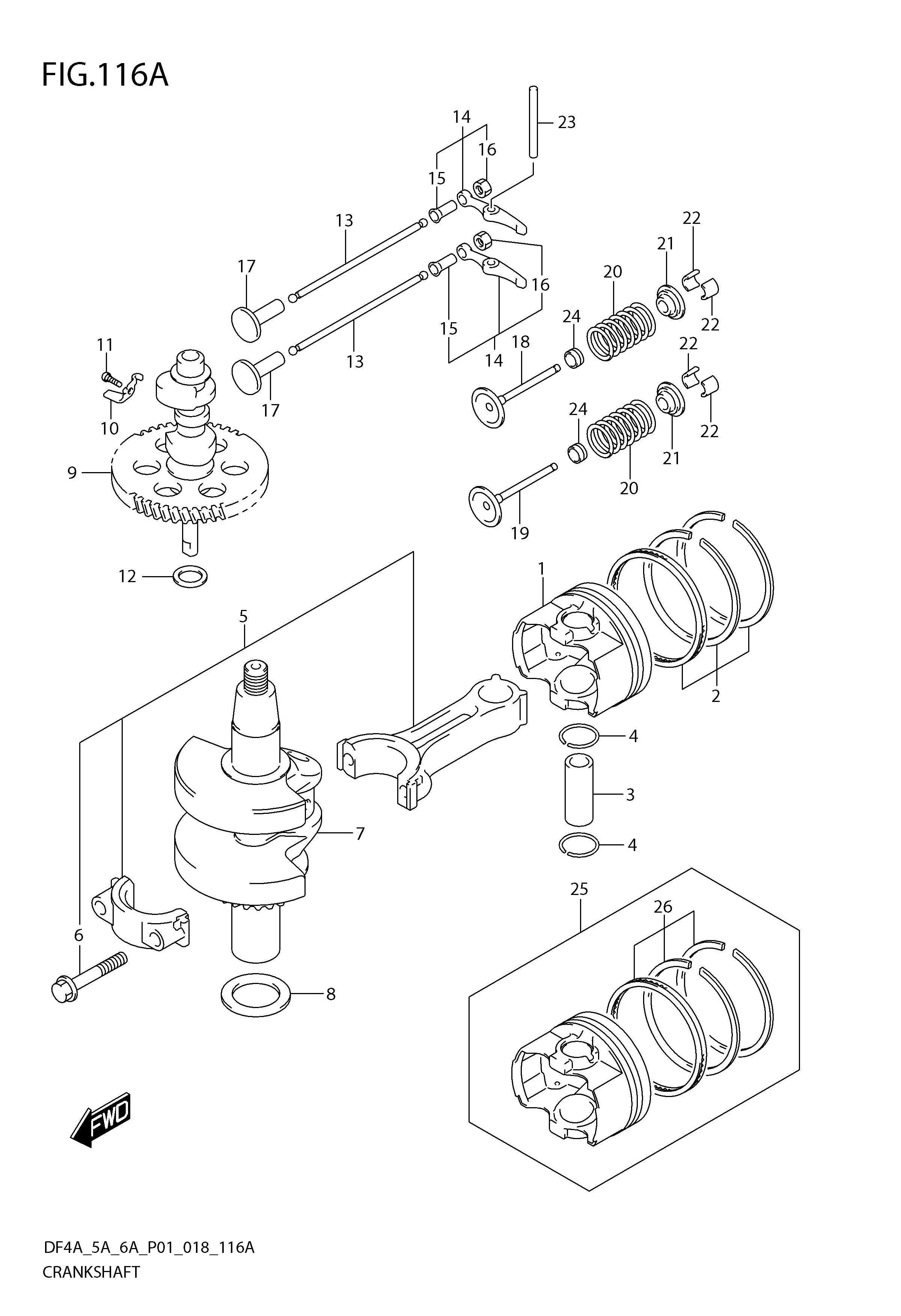

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12111-89L10-0B0 SUB: 12111-89L00-0B0	PISTON	1	Rp423.000
2	12140-89L20-000	RING SET, PISTON	1	Rp303.500
3	12151-89L00-000	PIN, PISTON	1	Rp52.500
4	09381-16001-000	SNAP RING	2	Rp2.500
5	12160-97L00-000	CONNROD ASSY	1	Rp775.500
6	12163-97L00-000	.BOLT CONNROD	2	Rp18.500
6	12843-27A00-000	.NUT, TAPPET ADJUSTING	2	Rp19.000
7	12200-97L00-000	CRANKSHAFT ASSY	1	Rp2.160.500
8	DISCONTINUE SUB: 08211-25361-000	WASHER	1	-
9	12711-97L00-000	CAMSHAFT (NT:46)	1	Rp1.262.500
10	12951-91J01-000	CAM, DECOMPRESSION	1	Rp56.500
11	09106-02001-000	BOLT (2X9.8)	1	Rp16.000
12	08211-17251-000	WASHER	1	Rp14.000
13	12894-91JL0-000	ROD, PUSH	2	Rp46.500
14	12840-97L00-000	ARM ASSY, VALVE ROCKER	2	Rp196.000
15	12842-97L00-000	.SCREW, TAPPET ADJUSTING	2	Rp69.500
17	12891-87C00-000	TAPPET	2	Rp76.500
18	12911-91J02-000	VALVE, INTAKE	1	Rp204.000
19	12915-91J02-000	VALVE, EXHAUST	1	Rp329.500
20	12921-91J00-000	SPRING, VALVE	2	Rp50.500
21	12931-78G00-000	RETAINER, VALVE SPRING	2	Rp35.500
22	12932-24400-000	COTTER, VALVE	4	Rp13.000
23	09261-04017-000	SHAFT, VALVE ROCKER ARM	1	Rp19.000
24	09289-05013-000 SUB: 09289-05012-000	OIL SEAL (5.5X11.5X9.3)	2	Rp16.500	OPT
25	12100-97L00-050	PISTON SET (OS:0.50)	1	Rp593.500	OPT
26	12140-89L20-050	.RING SET, PISTON (OS:0.50)	1	Rp235.500
