DF4A 5A 6A

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 111A CYLINDER HEADFIG 113A CYLINDER BLOCKFIG 116A CRANKSHAFTFIG 122A INTAKE MANIFOLDFIG 128A CARBURETOR (DF4A)FIG 128B CARBURETOR (DF5A)FIG 128C CARBURETOR (DF6A)FIG 146A FUEL PUMP (DF4A)FIG 146B FUEL PUMP (DF5A)(DF6A)FIG 160A WATER PUMPFIG 167A RECOIL STARTERFIG 175A OIL PUMP

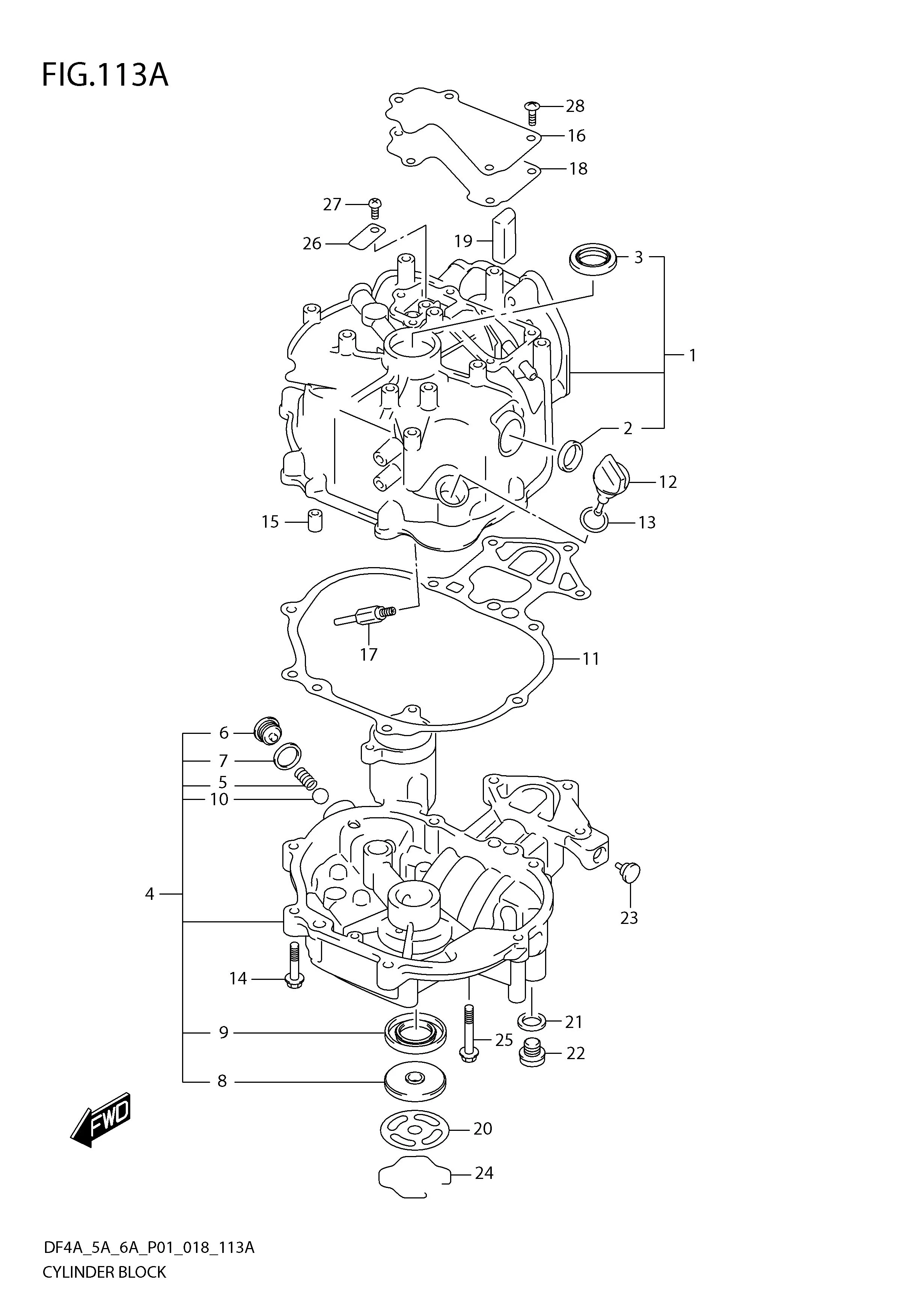

FIG 113A CYLINDER BLOCK

FIG 113A CYLINDER BLOCK
No No. Part Description Qty Price Per Pcs Remarks
1 11200-97L00-000 BLOCK ASSY, CYLINDER 1 Rp3.998.000
2 11971-97L00-000 .LENS, OIL CHECK 1 Rp96.000
3 09283-21009-000 .OIL SEAL (19.7X33X6) 1 Rp72.500
4 11300-97L00-000 CASE ASSY, CRANKSHAFT 1 Rp1.695.000
5 16152-97L00-000 .SPRING, OIL RELIEF VALVE 1 Rp18.000
6 16153-97L00-000 .RETAINER, RELIEF VALVE SPRING 1 Rp78.500
7 09168-16009-000 .GASKET (16X22X0.8) 1 Rp15.500
8 09283-10009-000 .OIL SEAL (10X45X5) 1 Rp71.000 LOWER
9 09283-25076-000 .OIL SEAL (25X45X5) 1 Rp60.500
10 06111-15004-000 .BALL 1 Rp11.000
11 11351-97L00-000 GASKET, CRANKCASE 1 Rp107.500
12 11381-91J10-000 GAUGE, OIL LEVEL (YELLOW) 1 Rp10.000
13 09280-15007-000 O RING (D:2.4,ID:15.8) 1 Rp9.500
14 01550-0630C-000 BOLT 8 Rp15.000
15 04211-09149-000 PIN 2 Rp3.000
16 11173-97L00-000 PLATE, BREATHER 1 Rp72.500
17 11177-97L00-000 PIPE, BREATHER OIL DRAIN 1 Rp54.000
18 11179-97L00-000 GASKET, BREATHER PLATE 1 Rp12.500
19 11186-97L00-000 SEPARATOR, OIL BREATHER 1 Rp27.000
20 11431-97L00-000 PLATE, UNDER OIL SEAL 1 Rp39.500
21 09168-12017-000 GASKET (12X17X1) 1 Rp13.000
22 09248-12009-000 PLUG (12X18.65) 1 Rp49.000
23 09321-08022-000 CUSHION 2 Rp14.500
24 09387-52002-000 RING 1 Rp27.000
25 01550-0640C-000 BOLT 1 Rp14.500
26 11452-91J00-000 VALVE, REED 1 Rp19.500
27 02112-0612A-000 SCREW 1 Rp3.500
28 02142-06127-000 SCREW 5 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
