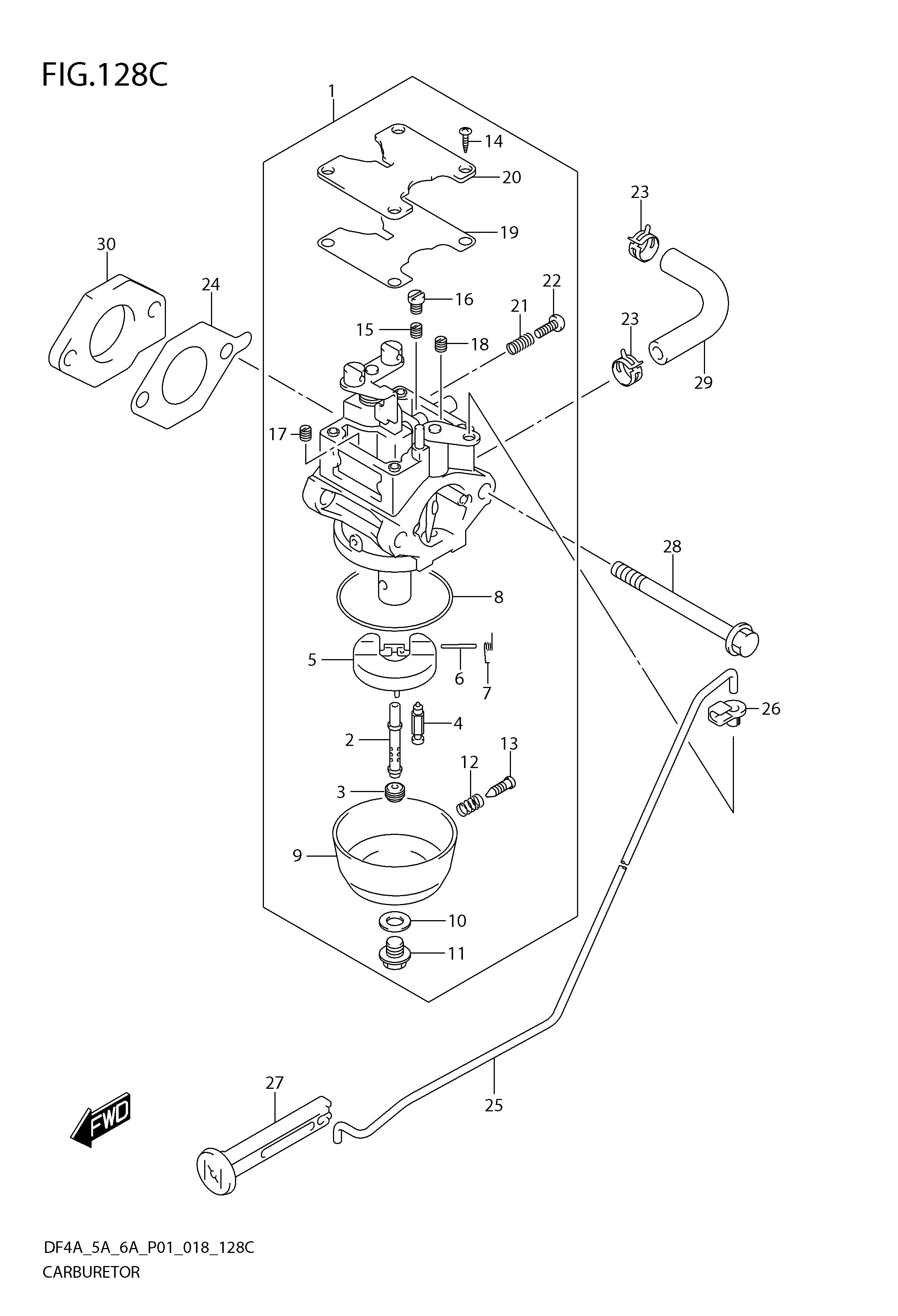

FIG 128C CARBURETOR (DF6A)

FIG 128C CARBURETOR (DF6A)
No No. Part Description Qty Price Per Pcs Remarks
1 13200-97L22-000
SUB: 13200-97L20-000		 CARBURETOR 1 Rp2.025.000
2 13236-97L20-000 .NOZZLE, MAIN 1 Rp855.500
3-1 DISCONTINUE
SUB: 09491-70018-000		 .JET, MAIN (70) 1 -
3-2 DISCONTINUE
SUB: 09491-72015-000		 .JET, MAIN (72) 1 -
4 13371-91J20-000 .VALVE, NEEDLE 1 Rp189.500
5 13250-97J21-000
SUB: 13250-97J20-000		 .FLOAT 1 Rp428.000
6 13254-97J00-000 .PIN, FLOAT 1 Rp8.500
7 13268-97J30-000 .SPRING 1 Rp298.500
8 13251-97J00-000 .GASKET 1 Rp58.000
9 13245-97J00-000 .CHAMBER, FLOAT 1 Rp117.000
10 13249-97J00-000 .GASKET 1 Rp19.500
11 13247-97J00-000 .SCREW 1 Rp66.000
12 13268-97J10-000 .SPRING 1 Rp12.000
13 13616-97J00-000 .SCREW 1 Rp131.500
14 13267-97J00-000 .SCREW 4 Rp70.500
15-2 09492-41004-000 .JET, PILOT (41) 1 Rp89.000
15-1 09492-39003-000 .JET, PILOT (39) 1 Rp89.000
16 13267-97J10-000 .SCREW 1 Rp14.000
17 09493-22L01-000 .JET, MAIN AIR (110) 1 Rp392.500
18 09493-80015-000 .JET, SLOW AIR (80) 1 Rp116.500
19 13249-97J10-000 .GASKET 1 Rp67.500
20 13248-97J00-000 .PLATE 1 Rp102.500
21 13268-97J20-000 .SPRING 1 Rp56.000
22 13534-97J10-000 .SCREW 1 Rp26.000
23 09401-09404-000 CLIP 2 Rp16.000
24 13125-91J10-000 GASKET, CARBURETOR 2 Rp28.500
25 13413-97L01-000 ROD, CHOKE 1 Rp52.000
26 13436-91J00-000 CONNECTOR, CHOKE ROD 1 Rp19.500
27 13631-97L00-000 KNOB, CHOKE 1 Rp56.000
28 09103-06521-000 BOLT (8X85) 2 Rp24.000
29 09343-50L01-060 HOSE (5X10X60) 1 Rp24.500
30 13124-91JL0-000 INSULATOR, CARBURETOR 1 Rp52.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
