  5. FIG.31 WIRING HARNESS

V-Storm 650

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 STARTING MOTOR FIG.24 MAGNETO FIG.25 BATTERY FIG.26 ELECTRICAL FIG.27 SPEEDOMETER FIG.28 HEADLAMP FIG.29 TURNSIGNAL LAMP FIG.30 REAR COMBINATION LAMP FIG.31 WIRING HARNESS FIG.32 HANDLE SWITCH

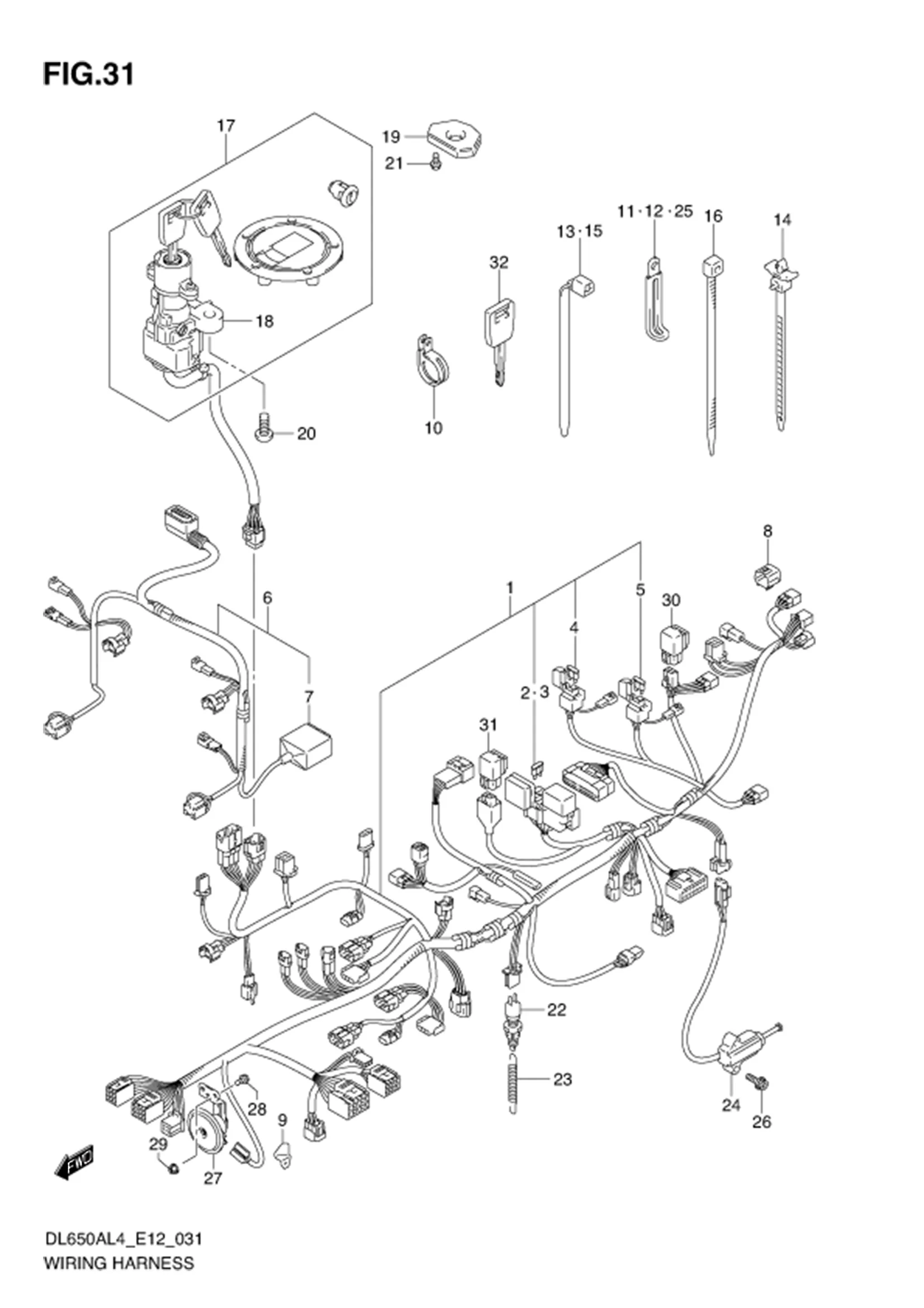

FIG.31 WIRING HARNESS

FIG.31 WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1 36610-11JD0-000 HARNESS, WIRING NO.1 1 Rp6.694.500
2 09481-10501-000 ?FUSE (10A) 2 Rp12.000
3 09481-15501-000 ?FUSE (15A) 4 Rp12.000
4 09481-15101-000 ?FUSE (15A) 2 Rp12.000
5 09481-25103-000 ?FUSE (25A) 2 Rp19.500
6 36620-11J00-000 HARNESS, WIRING NO.2 1 Rp1.549.500
7 36618-47H00-000 ?CAP 1 Rp121.500
8 36654-06J00-000 CAP, TS 1 Rp75.500
9 36711-11J00-000 GUIDE, WIRING HARNESS 1 Rp64.500
10 09403-26401-000 CLAMP 1 Rp29.500
11 09404-06429-000 CLAMP (L:45) 1 Rp15.000
12 DISCONTINUE
SUB: 09404-06433-000		 CLAMP (L:80) 1 -
13 36990-25G00-000
SUB: 09407-14403-000		 CLAMP (L:125) 2 Rp13.000
14 09407-17402-000
SUB: 09407-14408-000		 CLAMP (L:120) 1 Rp39.000
15 09407-18402-000 CLAMP (L:165) 2 Rp8.000
16 09407-14407-000 CLAMP (L:145) 2 Rp18.500
17 37000-11850-000 LOCK SET 1 Rp2.867.500
18 37100-11J10-000 ?LOCK ASSY, STEERING 1 Rp1.275.500
19 37180-15H00-000 COVER, STEERING LOCK 1 Rp266.500
20 09139-08016-000 BOLT (8X20) 2 Rp24.500
21 01547-0512B-000 BOLT 2 Rp20.500
22 37740-45D00-000 SWITCH ASSY, STOP LAMP 1 Rp18.500
23 09443-06012-000 SPRING 1 Rp17.000
24 37840-06G01-000
SUB: 37840-06G00-000		 SWITCH ASSY, SIDE STAND 1 Rp235.000
25 09404-06429-000 CLAMP (L:45) 1 Rp15.000
26 01550-0616B-000 BOLT 2 Rp5.500
27 38500-11J00-000 HORN ASSY 1 Rp448.500
28 09118-06017-000 BOLT (6X16) 2 Rp5.500
29 08316-1006A-000
SUB: 08316-1006B-000		 NUT 2 Rp2.000
30 38740-24X50-000 RELAY ASSY 1 Rp251.000
31 38740-24X50-000 RELAY ASSY 1 Rp251.000
32 37146-11J00-000 KEY, BLANK 1 Rp989.500 OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
