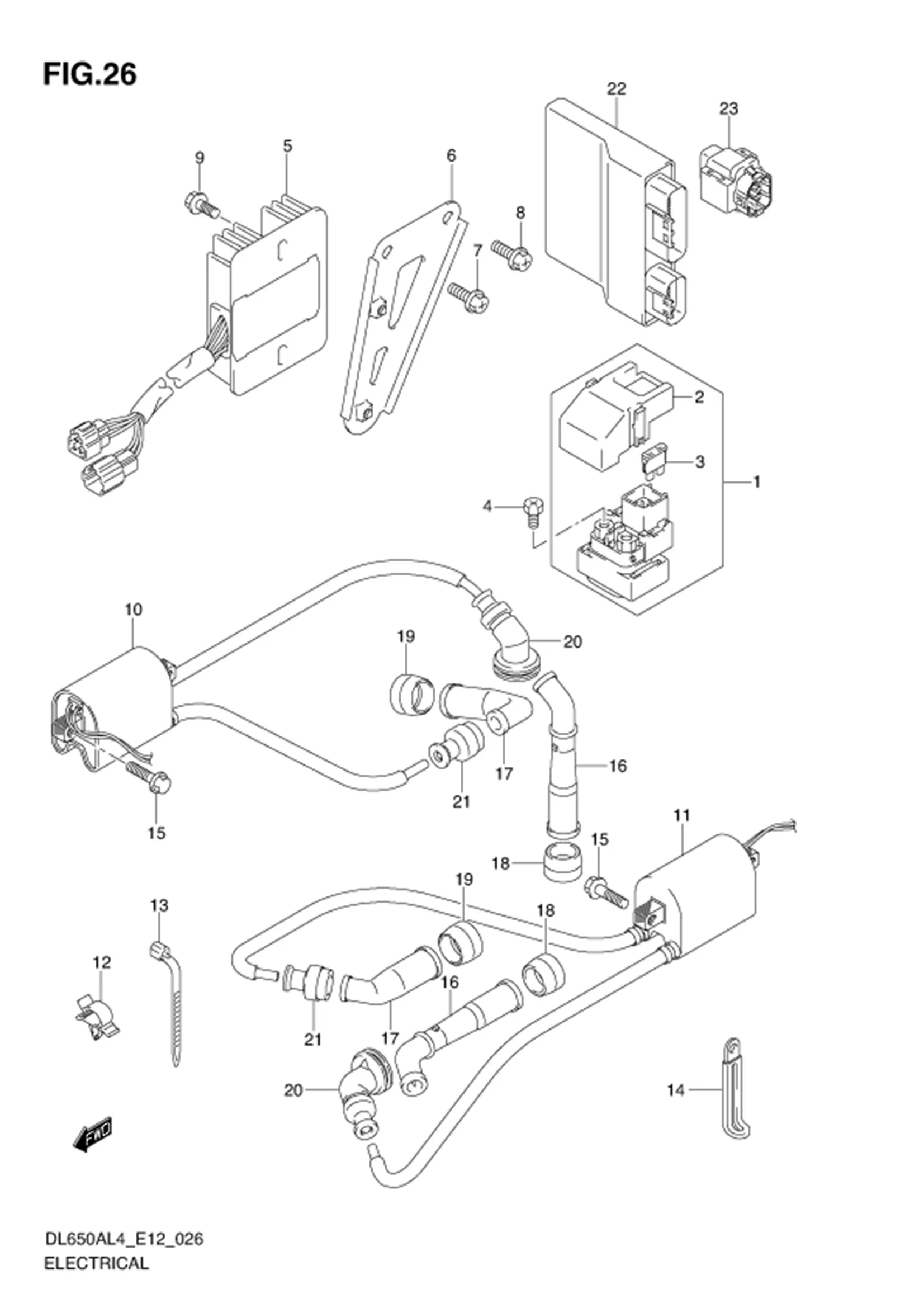

FIG.26 ELECTRICAL

FIG.26 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-06G02-000
SUB: 31800-06G00-000		 RELAY ASSY, STARTING MOTOR 1 Rp616.500
2 31861-47E00-000 ?COVER, RELAY ASSY 1 Rp7.000
3 09481-30101-000 ?FUSE (30A) 2 Rp14.000
4 09128-06013-000 SCREW (6X8) 2 Rp5.500
5 32800-47H00-000 RECTIFIER ASSY 1 Rp2.140.000
6 32830-11J00-000 BRACKET, RECTIFIER 1 Rp75.500
7 02162-0616A-000 SCREW 1 Rp3.000
8 02162-0610A-000 SCREW 1 Rp5.000
9 02162-0616A-000 SCREW 2 Rp3.000
10 33410-27G02-000
SUB: 33410-27G00-000		 COIL ASSY, IGNITION 1 Rp907.500
11 33420-27G03-000
SUB: 33420-27G00-000		 COIL ASSY, IGNITION 1 Rp907.500
12 09403-10319-000 CLAMP 1 Rp23.500
13 09407-18402-000 CLAMP (L:165) 1 Rp8.000
14 09404-06429-000 CLAMP (L:45) 1 Rp15.000
15 01547-0625A-000 BOLT 4 Rp6.500
16 33510-17G00-000 CAP, SPARK PLUG 2 Rp227.500 FOR CENTER
17 33500-41H00-000
SUB: 33510-20E00-000		 CAP, SPARK PLUG 2 Rp47.000 FOR SIDE
18 33541-23E10-000 SEAL, SPARK PLUG CAP 2 Rp45.000 FOR CENTER
19 33541-47D00-000 SEAL, SPARK PLUG CAP 2 Rp38.500 FOR SIDE
20 33542-17G01-000 SEAL, HIGH TENSION CORD 2 Rp46.500 FOR CENTER
21 33542-38B00-000 SEAL, HIGH TENSION CORD 2 Rp27.500 FOR SIDE
22 32920-11JA0-000 CONTROL UNIT, FI 1 Rp11.039.500
23 DISCONTINUE
SUB: 33960-27G00-000		 SENSOR ASSY, FUEL CUT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
