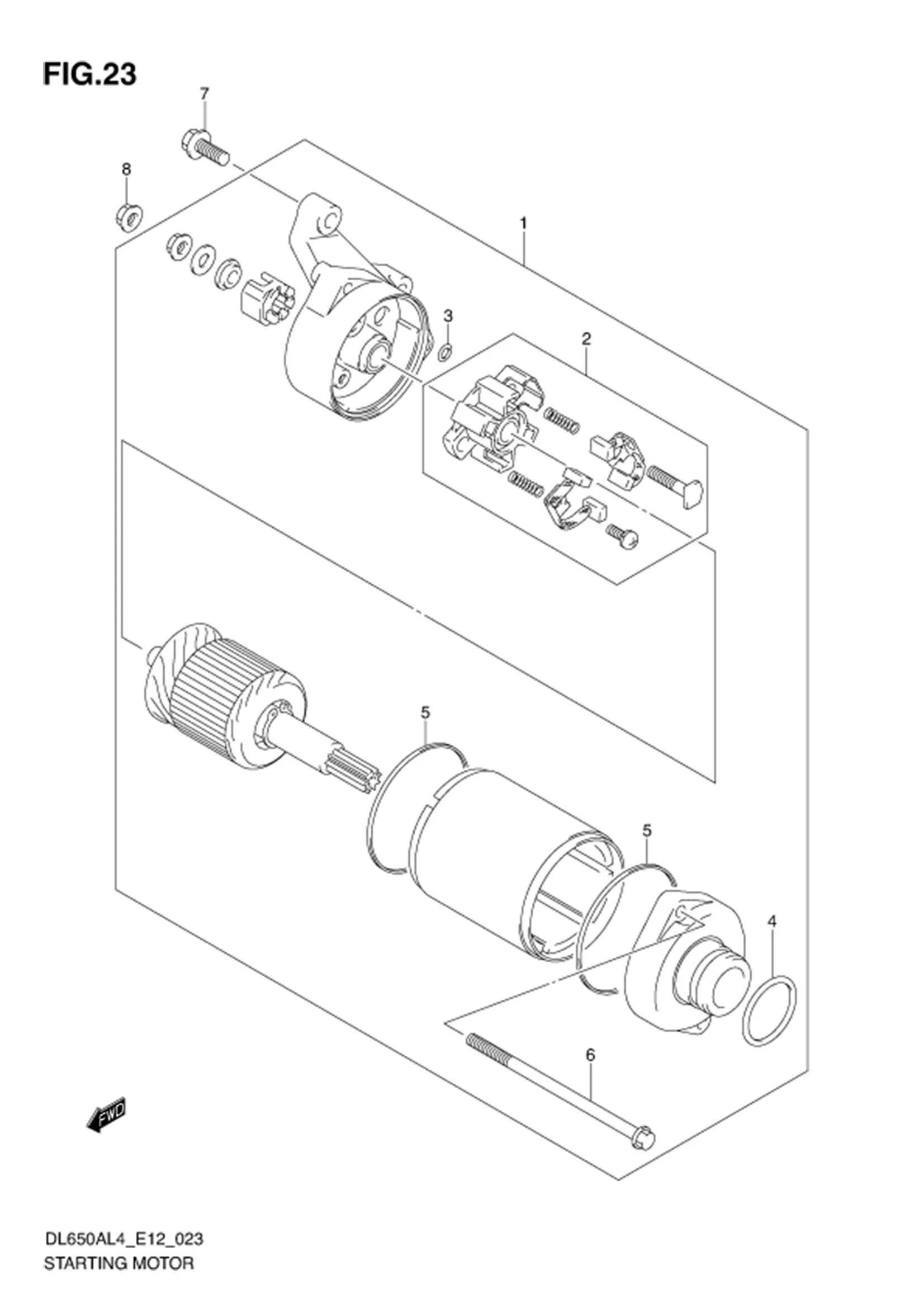

FIG.23 STARTING MOTOR

FIG.23 STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-19F10-000 MOTOR ASSY, STARTING 1 Rp3.784.500
2 31132-18H00-000 ?BRUSH HOLDER SET 1 Rp368.500
3 DISCONTINUE
SUB: 31143-49040-000		 ?O RING 1 -
4 31156-98E00-000 ?O RING 1 Rp3.000
5 31264-38F10-000 ?SQUARE RING 2 Rp45.000
6 31280-19F10-000 ?SET BOLT 2 Rp107.000
7 09103-06212-000 BOLT (6X25) 2 Rp19.000
8 08361-3506A-000 NUT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
