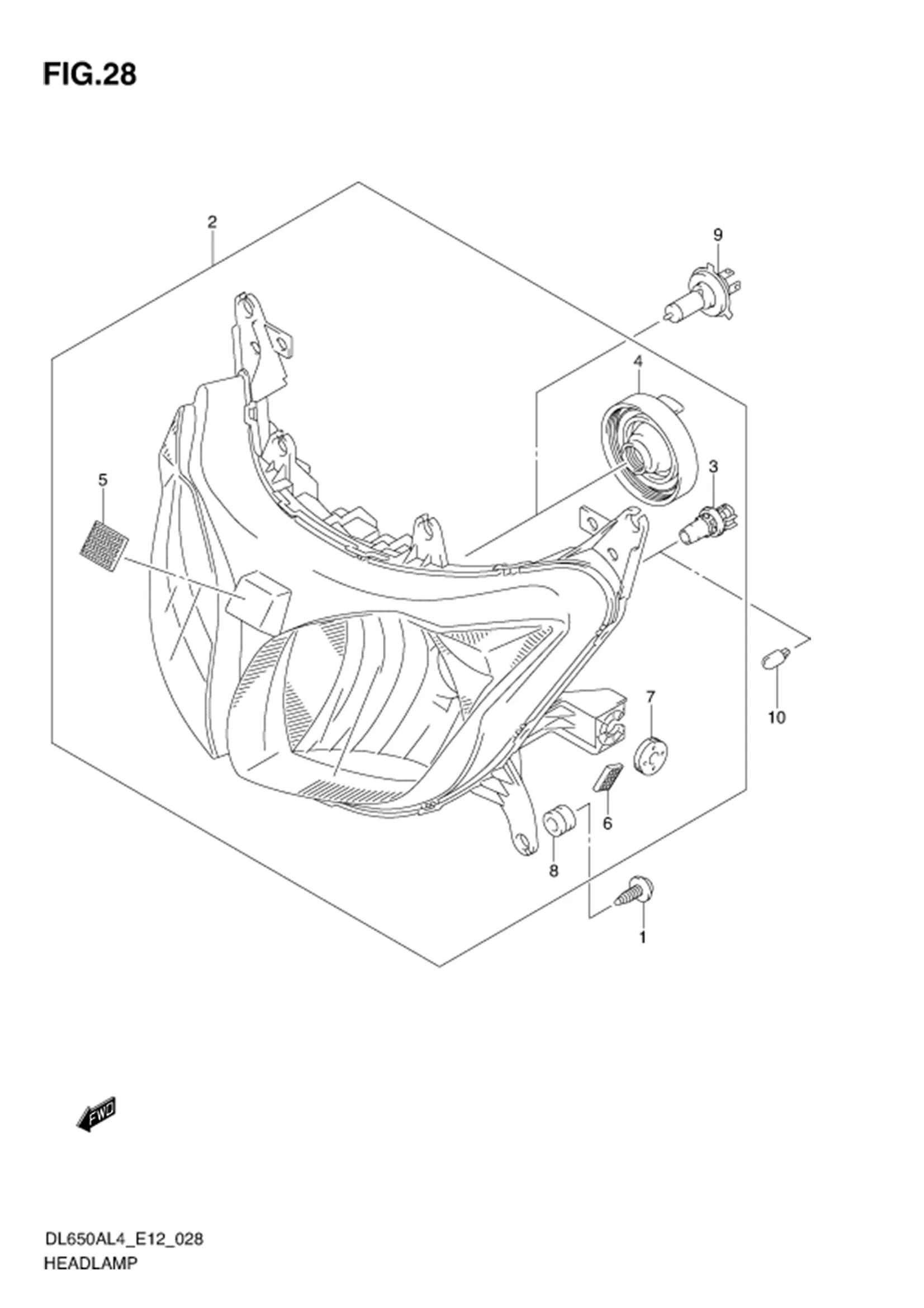

FIG.28 HEADLAMP

FIG.28 HEADLAMP
No No. Part Description Qty Price Per Pcs Remarks
1 09136-05062-000 SCREW (5X15) 7 Rp17.500
2 35100-11J00-999 HEADLAMP ASSY 1 Rp3.413.500
3 35118-68K00-000 ?SOCKET, POSITION LAMP 2 Rp110.500
4 35179-58J00-000 ?COVER, SOCKET 2 Rp95.500
5 44572-02F01-000 ?FASTENER 1 Rp68.500
6 44572-37H00-000 ?FASTENER, COWLING 2 Rp61.500
7 09320-08028-000 ?CUSHION 2 Rp11.500
8 09320-09059-000
SUB: 09320-09039-000		 ?CUSHION 7 Rp26.000
9 09471-12182-000 BULB (12V,60/55W) 2 Rp70.000
10 09471-12216-000 BULB (12V5W) 2 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
