V-Storm 650

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 STARTING MOTOR FIG.24 MAGNETO FIG.25 BATTERY FIG.26 ELECTRICAL FIG.27 SPEEDOMETER FIG.28 HEADLAMP FIG.29 TURNSIGNAL LAMP FIG.30 REAR COMBINATION LAMP FIG.31 WIRING HARNESS FIG.32 HANDLE SWITCH

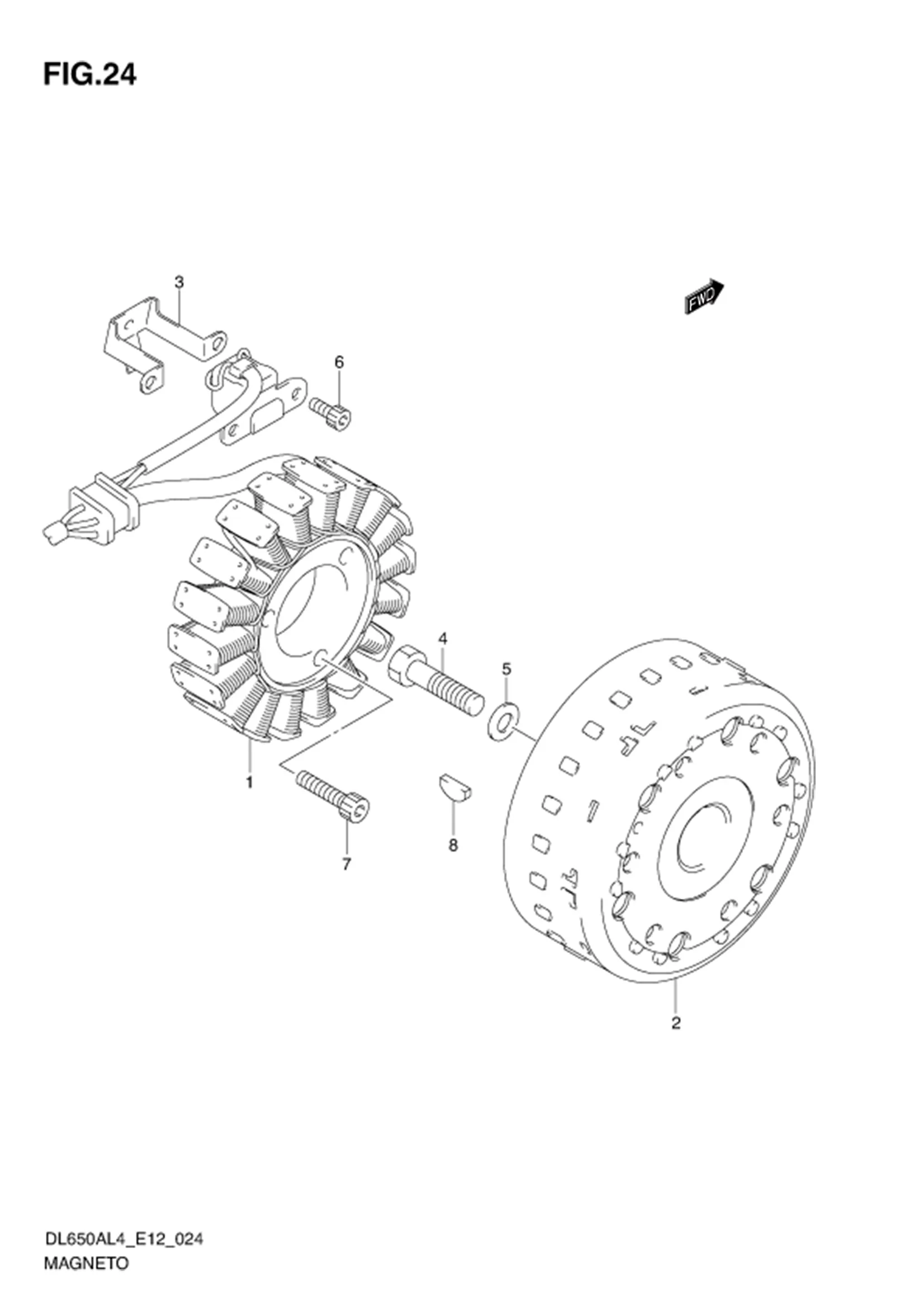

FIG.24 MAGNETO

FIG.24 MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1 32101-17G13-000
SUB: 32101-17G11-000		 STATOR ASSY 1 Rp3.471.000
2 32102-17G10-000 ROTOR ASSY 1 Rp4.528.500
3 32371-19F10-000 CLAMP, MAGNETO LEAD 1 Rp36.000
4 09103-12004-000 BOLT (12X40) 1 Rp24.500
5 09160-12036-000 WASHER (12X30X3) 1 Rp23.500
6 07130-0512A-000 BOLT 2 Rp4.000
7 07130-0635A-000 BOLT 3 Rp21.500
8 09420-04008-000 KEY 1 Rp23.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
