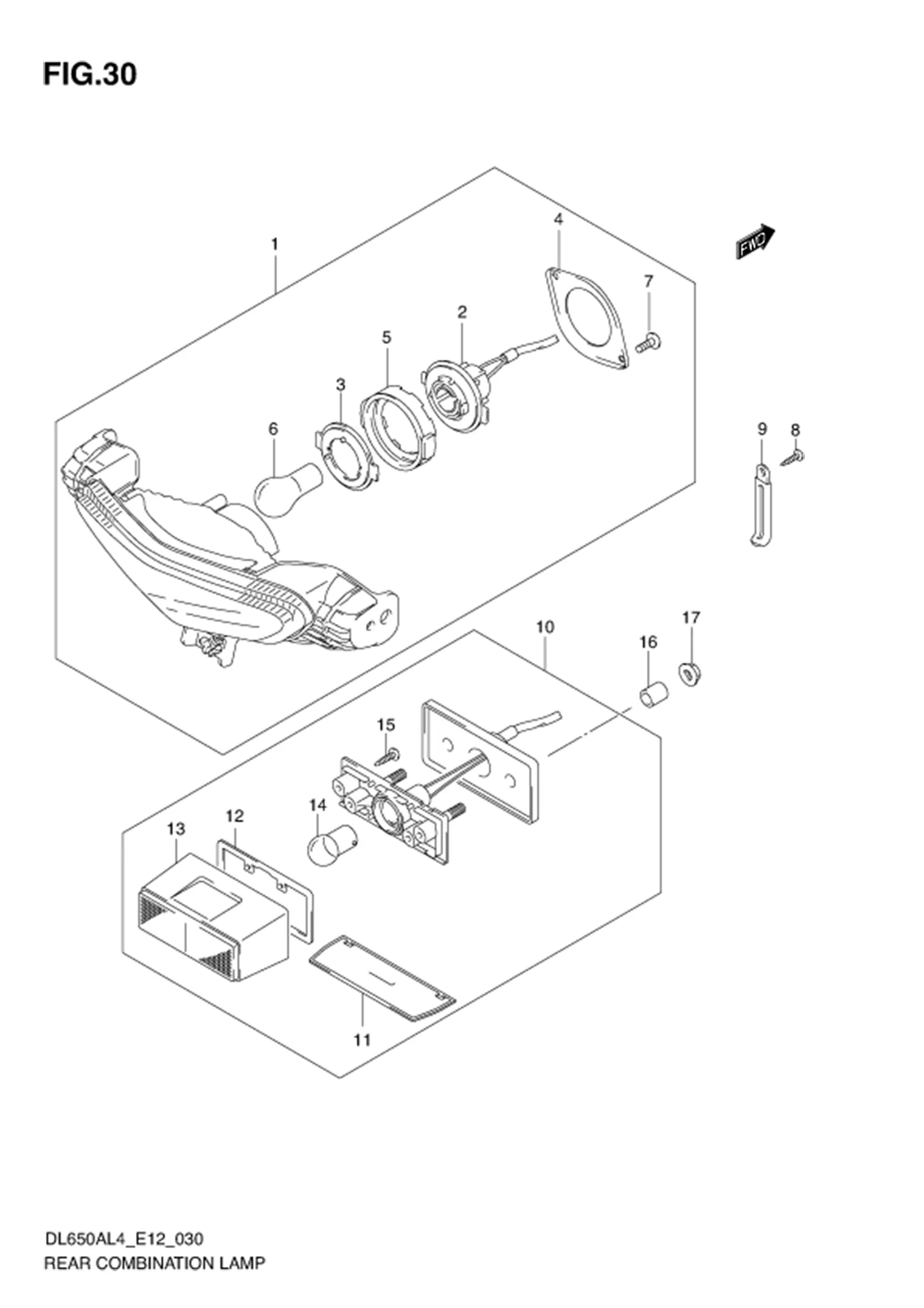

FIG.30 REAR COMBINATION LAMP

FIG.30 REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35710-11J01-000 LAMP ASSY, REAR COMBINATION 1 Rp2.448.000
2 35718-11J01-000 ?SOCKET & CORD 1 Rp915.500
3 35716-48B21-000 ?PLATE, NO.1 1 Rp231.500
4 35736-48B21-000 ?PLATE, NO.2 1 Rp149.500
5 35765-42E00-000 ?CUSHION 1 Rp79.500
6 09471-12083-000 ?BULB (12V,21/5W) 1 Rp62.000
7 03211-0412A-000 ?SCREW 2 Rp11.500
8 03541-0616A-000 SCREW 1 Rp13.500
9 09404-06429-000 CLAMP (L:45) 1 Rp15.000
10 35910-41G01-000 LAMP ASSY, LICENSE 1 Rp409.000
11 35912-41G01-000 ?LENS 1 Rp179.500
12 35913-41G00-000 ?GASKET 1 Rp178.000
13 35917-41G00-000 ?COVER 1 Rp246.000
14 09471-12140-000 ?BULB (12V,5W) 1 Rp37.000
15 03211-0416A-000 ?SCREW 2 Rp4.500
16 09180-06263-000 SPACER (6.5X9X9) 2 Rp12.500
17 09159-06096-000 NUT 2 Rp25.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
