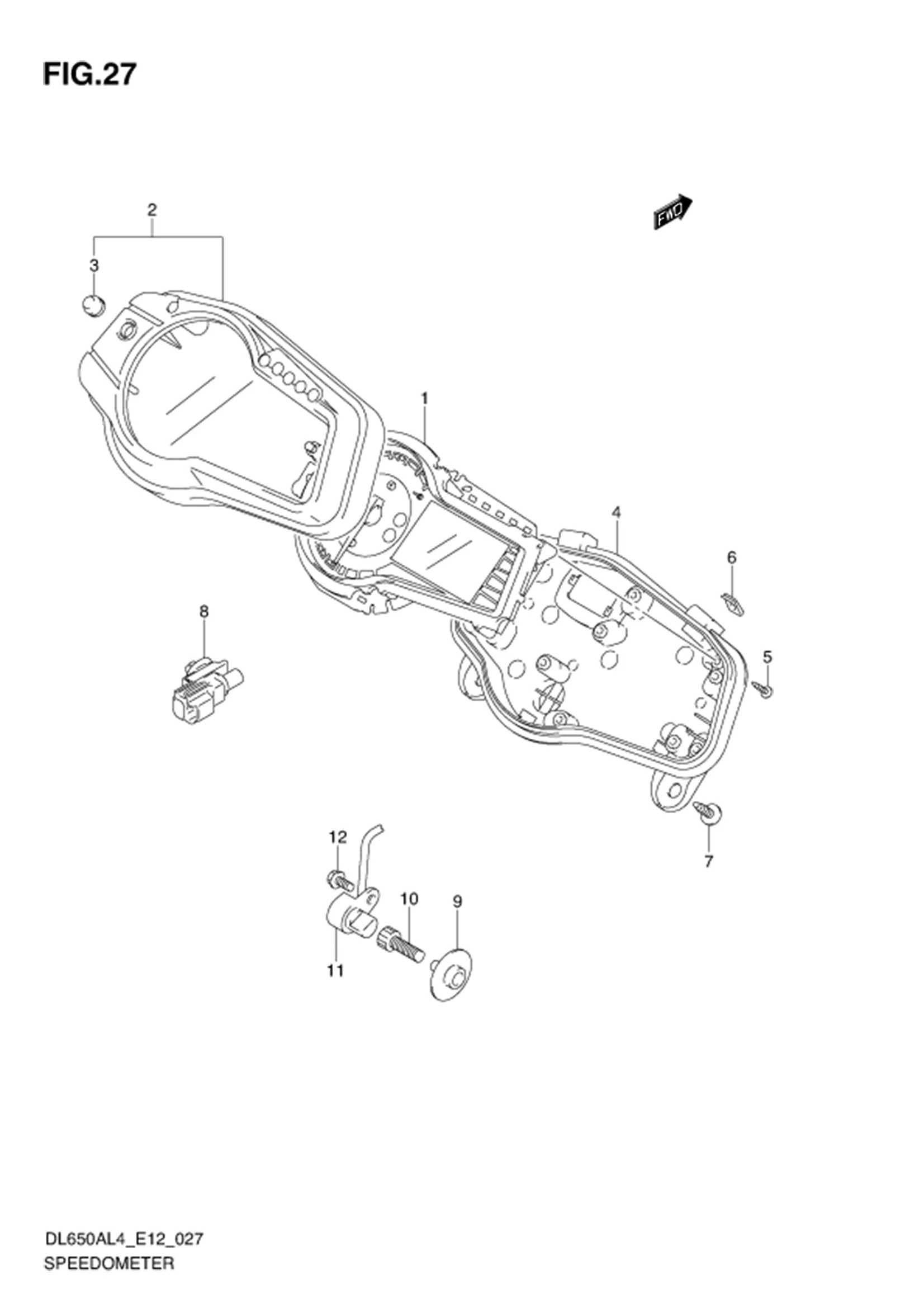

FIG.27 SPEEDOMETER

FIG.27 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 34120-11J02-000
SUB: 34120-11J01-000		 SPEEDOMETER 1 Rp7.673.000
2 34150-11J00-000 CASE, UPPER 1 Rp1.237.000
3 34124-38G00-000 ?RUBBER, SWITCH 1 Rp56.000
4 34111-11J00-000 CASE, LOWER 1 Rp597.500
5 09132-03008-000 SCREW (3X16) 11 Rp13.500
6 DISCONTINUE
SUB: 09148-05052-000		 NUT 2 -
7 03541-0516A-000 SCREW 2 Rp3.500
8 95643-58J00-000 SENSOR, AMBIENT AIR TEMP 1 Rp262.000
9 34981-38G01-000 ROTOR, SPEED 1 Rp138.000
10 07130-0825A-000
SUB: 07130-0825B-000		 BOLT 1 Rp4.000
11 34990-35F00-000 SENSOR, SPEED 1 Rp1.022.000
12 07120-0512B-000 BOLT 1 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
