V-Storm 650

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 STARTING MOTOR FIG.24 MAGNETO FIG.25 BATTERY FIG.26 ELECTRICAL FIG.27 SPEEDOMETER FIG.28 HEADLAMP FIG.29 TURNSIGNAL LAMP FIG.30 REAR COMBINATION LAMP FIG.31 WIRING HARNESS FIG.32 HANDLE SWITCH

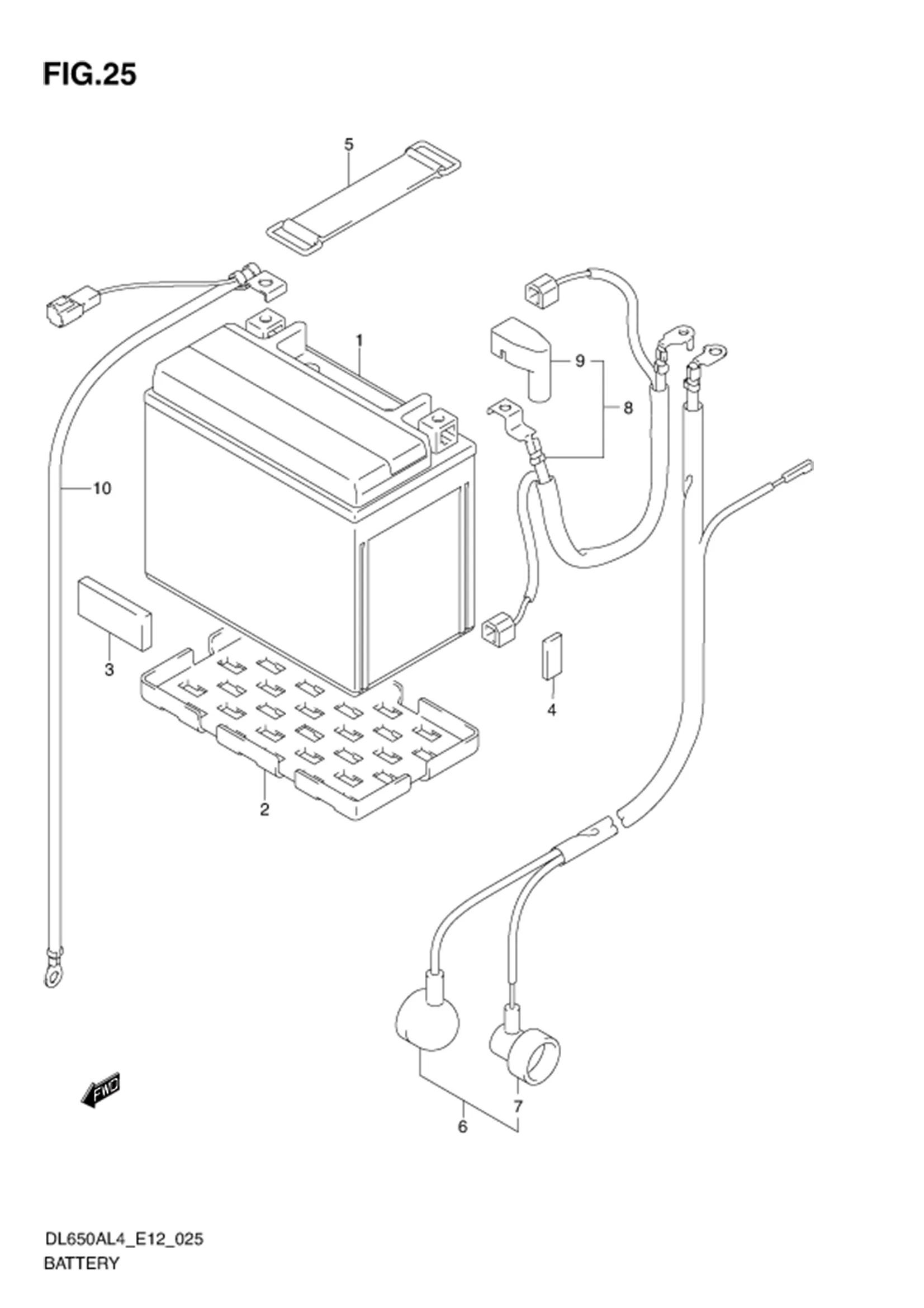

FIG.25 BATTERY

FIG.25 BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 33610-48E21-000		 BATTERY ASSY (FTX12-BS,120V10.5AH) 1 -
2 33652-16G00-000 PROTECTOR, BATTERY 1 Rp67.000
3 33652-08420-000 PROTECTOR (70X100X6) 1 Rp31.500 CUT AS REQUIRED
4 44543-10G00-000 PROTECTOR (20X40X3.0) 1 Rp40.000 CUT AS REQUIRED
5 09462-00007-000 BAND 1 Rp11.500
6 33810-27G20-000 WIRE, STARTER MOTOR LEAD 1 Rp269.000
7 36618-43410-000 ?CAP, OIL PRESSURE SWITCH 1 Rp20.500
8 33820-27G10-000 WIRE, BATTERY (+)LEAD 1 Rp336.500
9 33624-27G00-000 ?CAP, BATTERY (+) 1 Rp53.000
10 33860-27G10-000 WIRE, BATTERY (-)LEAD 1 Rp368.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
