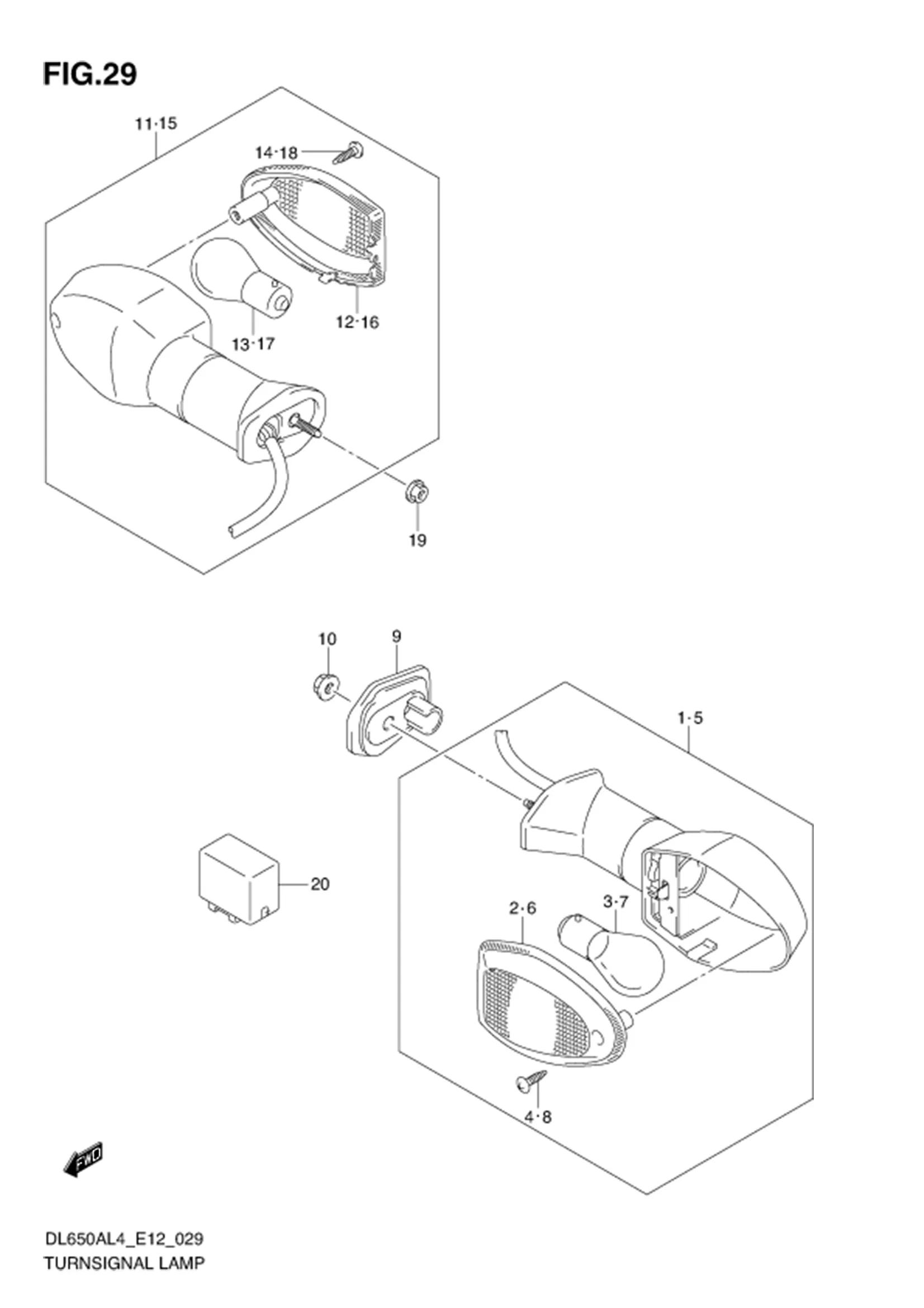

FIG.29 TURNSIGNAL LAMP

FIG.29 TURNSIGNAL LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35601-08J01-000 LAMP ASSY, FR TURNSIGNAL RH 1 Rp566.500
2 35612-08J01-000 ?LENS 1 Rp72.500
3 09471-12045-000 ?BULB (12V,21W) 1 Rp13.500
4 03211-0414B-000 ?SCREW 1 Rp30.000
5 35602-08J01-000 LAMP ASSY, FR TURNSIGNAL LH 1 Rp566.500
6 35632-08J01-000 ?LENS 1 Rp72.500
7 09471-12045-000 ?BULB (12V,21W) 1 Rp13.500
8 03211-0414B-000 ?SCREW 1 Rp30.000
9 35629-18G00-000 PLATE, FRONT TURNSIGNAL 2 Rp41.500
10 08316-1005A-000 NUT 2 Rp2.500
11 35603-08J11-000 LAMP ASSY, RR TURNSIGNAL RH 1 Rp2.065.500
12 35632-08J01-000 ?LENS 1 Rp72.500
13 09471-12045-000 ?BULB (12V,21W) 1 Rp13.500
14 03211-0414B-000 ?SCREW 1 Rp30.000
15 35604-08J11-000 LAMP ASSY, RR TURNSIGNAL LH 1 Rp2.065.500
16 35612-08J01-000 ?LENS 1 Rp72.500
17 09471-12045-000 ?BULB (12V,21W) 1 Rp13.500
18 03211-0414B-000 ?SCREW 1 Rp30.000
19 08319-3105A-000 NUT 2 Rp25.000
20 38610-03F01-000
SUB: 38610-03F00-000		 RELAY ASSY, TURNSIGNAL LAMP 1 Rp684.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
