THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.18 KICK STARTERFIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 ELECTRICALFIG.22 BATTERYFIG.23 SPEEDOMETERFIG.24 HEAD LAMPFIG.25 TURNSIGNAL LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESSFIG.28 HANDLE SWITCH

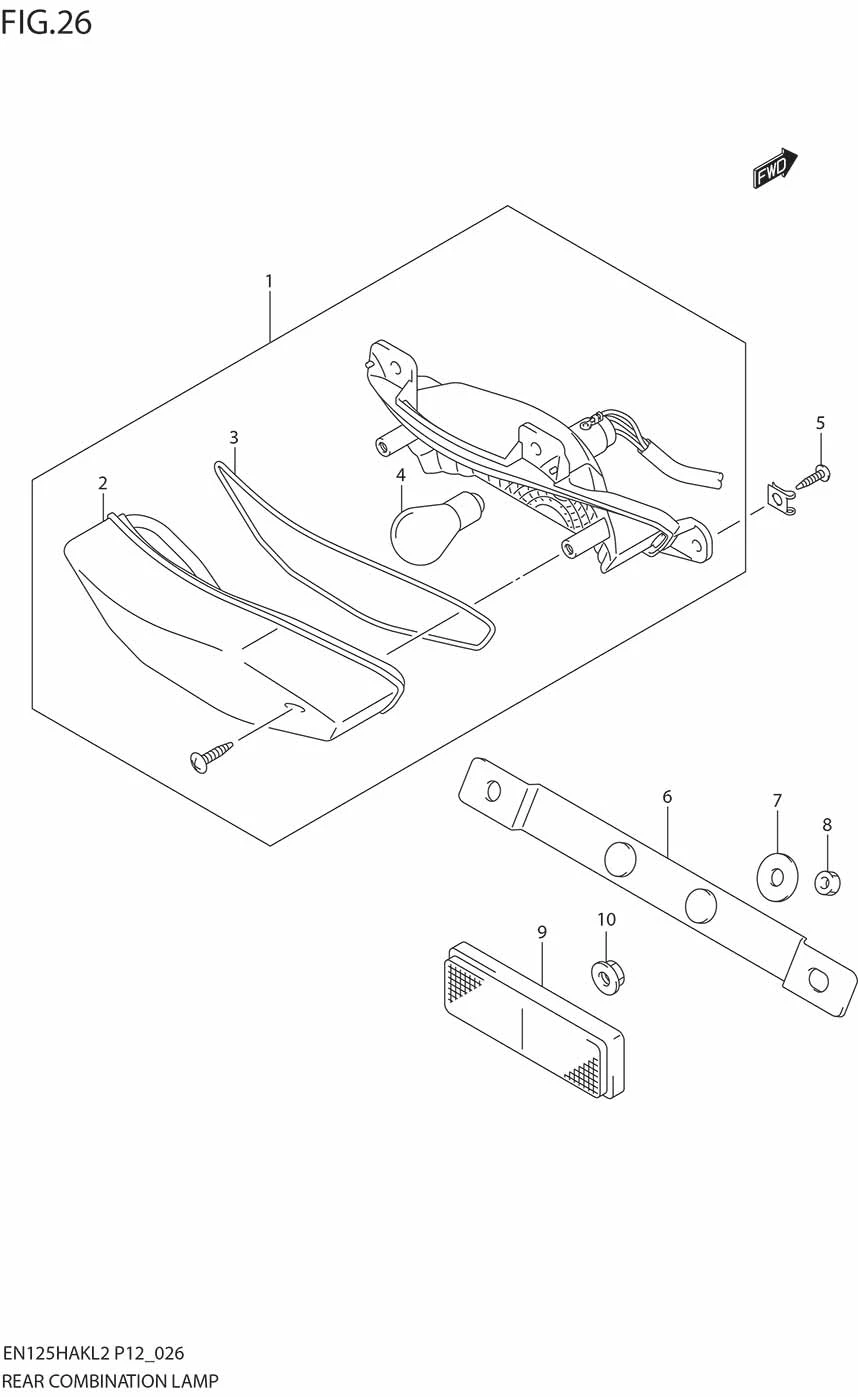

FIG.26 REAR COMBINATION LAMP

FIG.26 REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35710-26H20-000 LAMP ASSY, REAR COMB 1 Rp129.000
2 35712-26H10-000 ?LENS 1 -
3 35713-26H10-000 ?GASKET 1 -
4 DISCONTINUE
SUB: 09471-12128-000		 ?BULB,12V21/5W(BF141-49642A) 1 -
5 03241-0512A-000
SUB: 03241-0512B-000		 SCREW, RR COMB LAMP 4 Rp3.500
6 35927-05320-000 BRACKET, LICENSE PLATE 1 Rp21.500
7 09160-06088-000 WASHER, LICENSE BRACKET 2 Rp10.500 6.5X20X1.6
8 08310-0006A-000 NUT, LICENSE BRACKET 2 Rp2.500
9 35970-04H01-000 REFLEX REFLECTOR ASSY, RR 1 Rp28.000
10 08316-1005A-000
SUB: 08316-1005B-000		 NUT 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
