THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.18 KICK STARTERFIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 ELECTRICALFIG.22 BATTERYFIG.23 SPEEDOMETERFIG.24 HEAD LAMPFIG.25 TURNSIGNAL LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESSFIG.28 HANDLE SWITCH

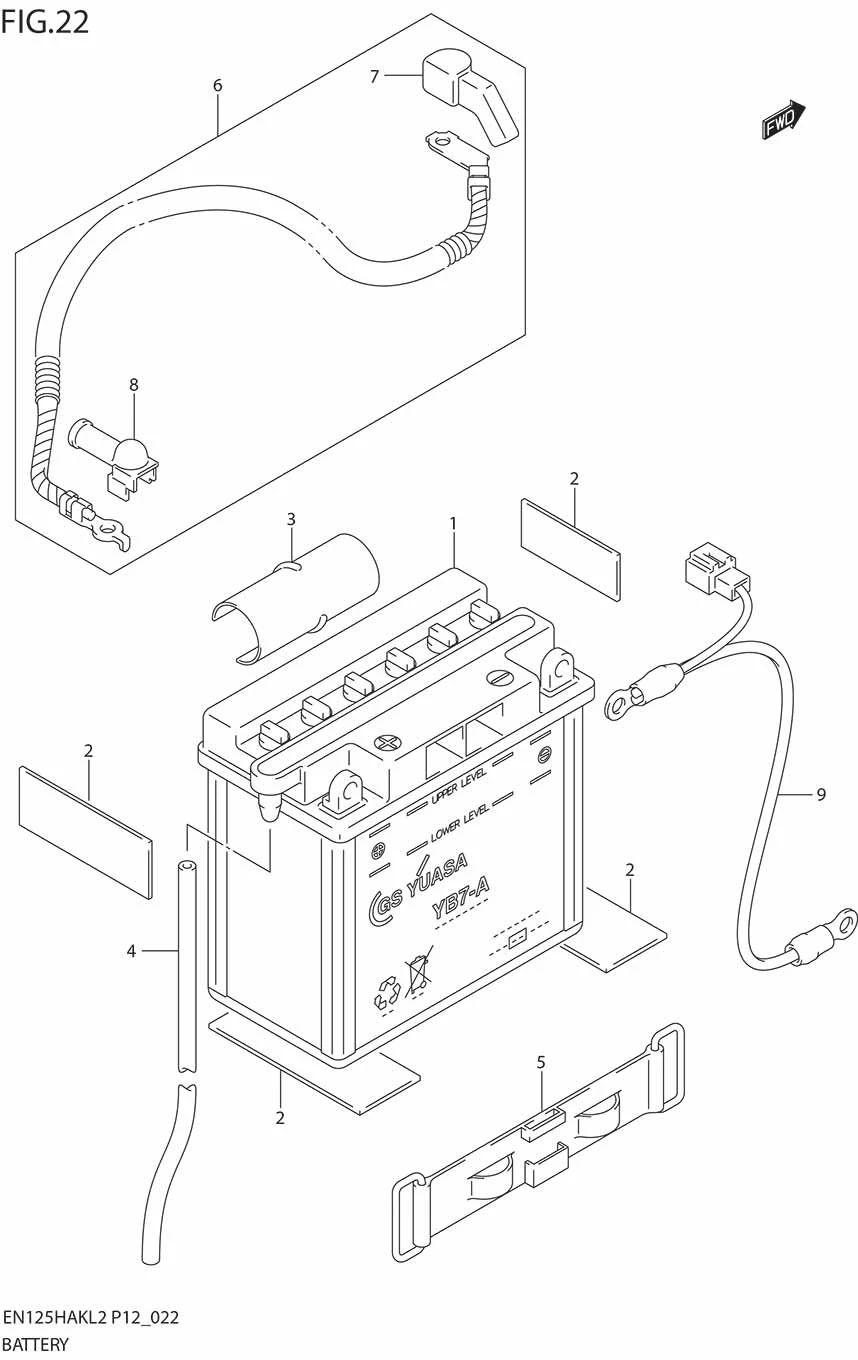

FIG.22 BATTERY

FIG.22 BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 33610-10310-000 BATTERY (12V,8AH) 1 - YB7-A
2 33652-38000-000 PROTECTOR (30X40X3) 4 Rp3.000
3 DISCONTINUE
SUB: 33652-05310-000		 PROTECTOR (20X45X6) 1 -
4 33680-08420-000 HOSE, BATTERY EXHAUST 1 Rp16.500
5 33651-45F12-000
SUB: 33651-45F10-000		 BAND, BATTERY 1 Rp38.000
6 33810-26H30-000 WIRE, STARTER MOTOR LEAD 1 -
7 31861-26H00-000 ?CAP, STARTER MOTOR 1 Rp16.000
8 31861-31500-000 ?CAP, STARTER RELAY 1 Rp12.000
9 33860-26H00-000 WIRE, BATTERY MINUS LEAD 1 Rp42.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
