Preview Engine Transmission Electrical Suspension Body

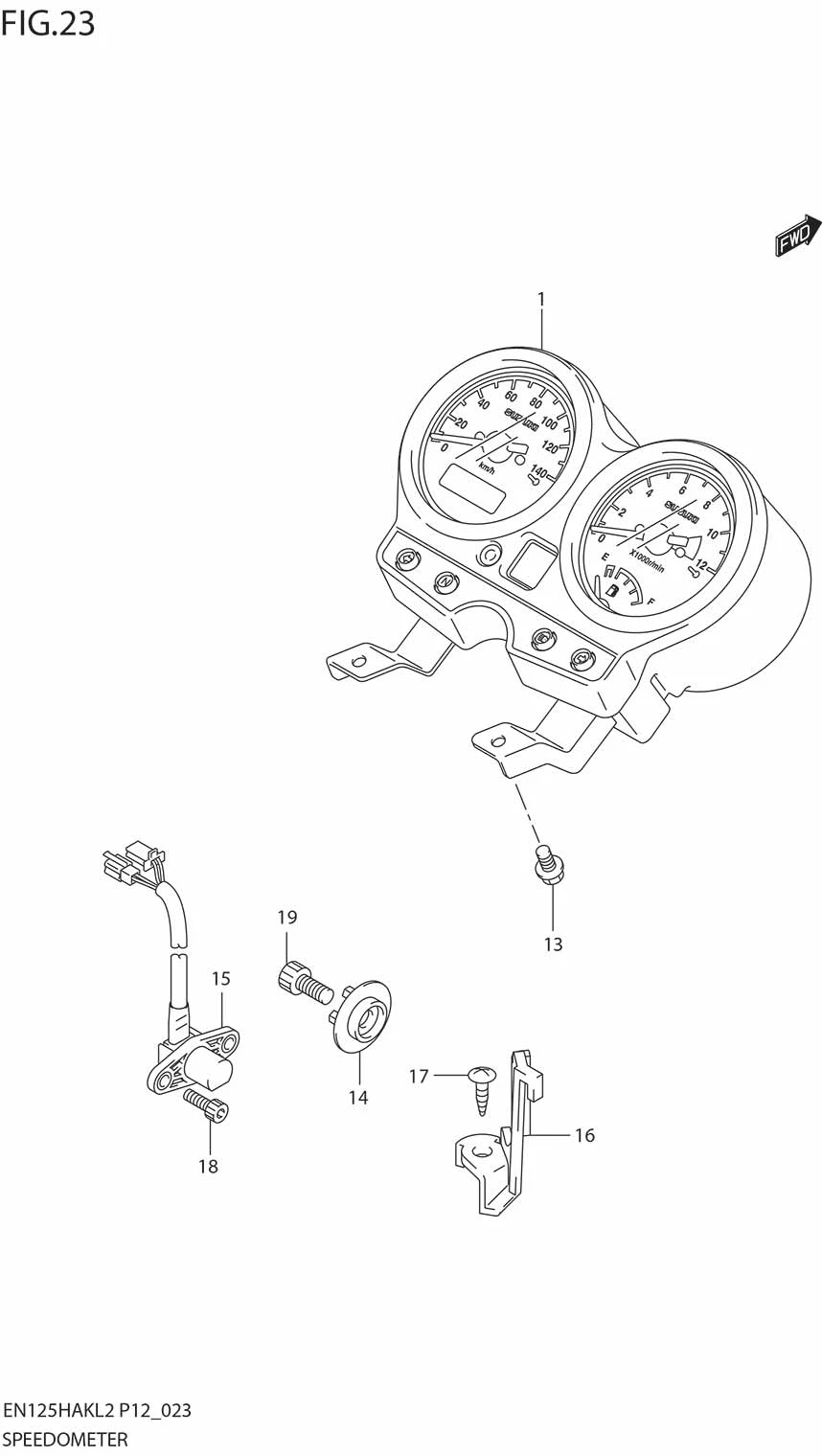

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	34100-26H70-000	SPEEDOMETER	1	Rp2.187.500
2	34111-26H42-000	?CASE,LOWER	1	-	NOT ILLUSTRATED
3	34149-03G00-000	?SCREW, 3X14	6	Rp3.500	NOT ILLUSTRATED
4	34149-17E10-000	?SCREW, 4X14	1	-	NOT ILLUSTRATED
5	34150-26H42-000	?CASE ASSY,UPPER	1	-	NOT ILLUSTRATED
6	34124-39G00-000	??RUBBER,SWITCH	1	Rp58.000	NOT ILLUSTRATED
7	34152-26H42-000	?COVER	1	-	NOT ILLUSTRATED
8	34176-19F20-000	?CLAMP	1	-	NOT ILLUSTRATED
9	34198-38G00-000	?GROMMET	1	-	NOT ILLUSTRATED
10	34955-26H10-000	?DAMPER	3	-	NOT ILLUSTRATED
11	DISCONTINUE SUB: 09160-05017-000	?WASHER	3	-	NOT ILLUSTRATED
12	08310-00057-000 SUB: 08310-11058-000	?NUT	3	Rp13.500	NOT ILLUSTRATED
13	01550-0816A-000 SUB: 01550-0816B-000	BOLT, SPEEDOMETER	2	Rp6.000
14	34981-26H00-000	ROTOR, SPEED	1	Rp45.000
15	34990-26H10-000	SENSOR, SPEED	1	-
16	34997-26H00-000	CLAMP, SPEED SENSOR	1	Rp7.500
17	03541-0512B-000	SCREW, SENSOR CLAMP	1	Rp4.000
18	07130-0512A-000 SUB: 07130-0512B-000	BOLT, SPEED SENSOR	2	Rp4.000
19	07130-0820B-000	BOLT, SPEED ROTOR	1	Rp13.000
