THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.18 KICK STARTERFIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 ELECTRICALFIG.22 BATTERYFIG.23 SPEEDOMETERFIG.24 HEAD LAMPFIG.25 TURNSIGNAL LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESSFIG.28 HANDLE SWITCH

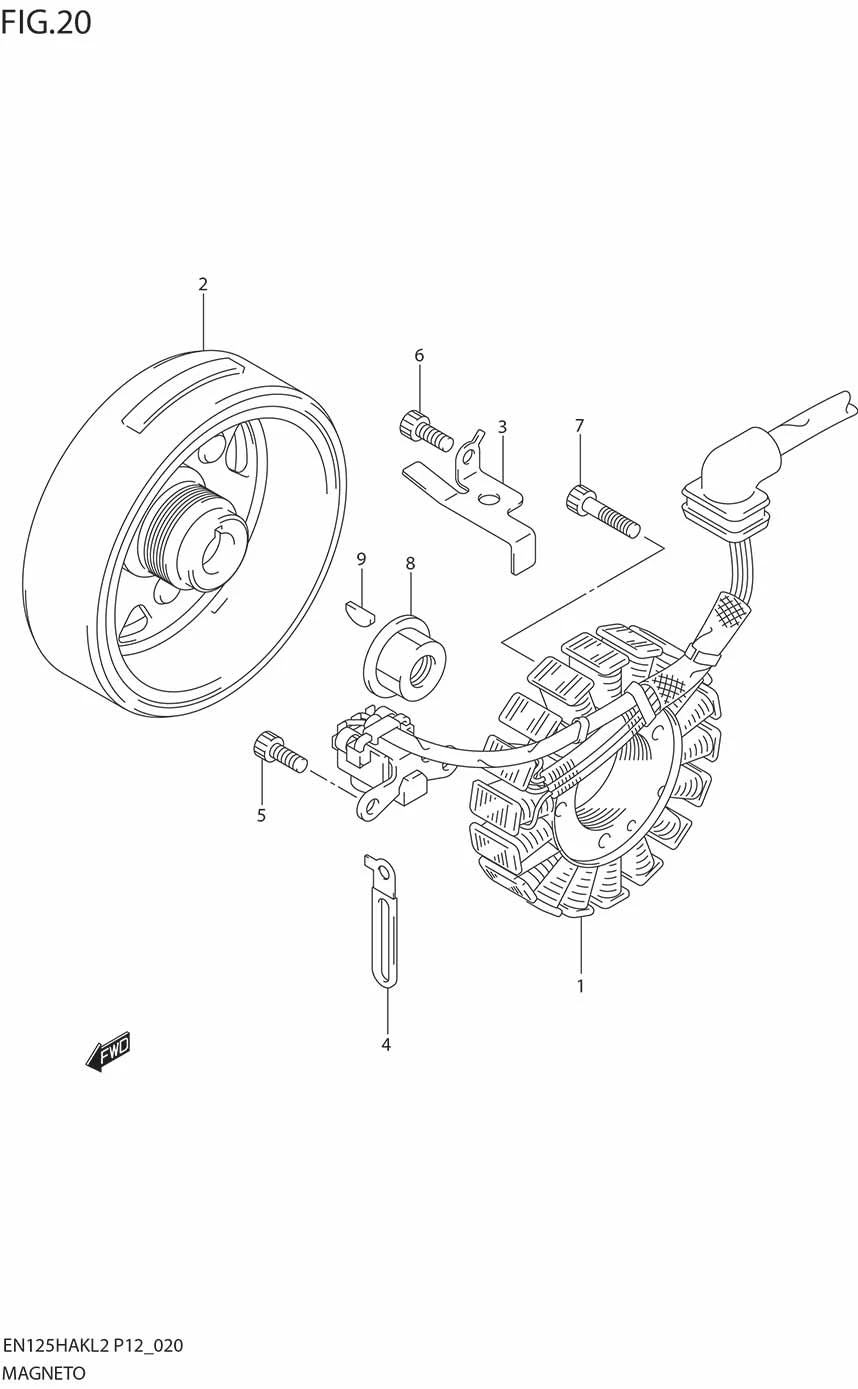

FIG.20 MAGNETO

FIG.20 MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1 32101-25H30-000 STATOR ASSY, MAGNETO 1 Rp413.000
2 32102-25H20-000 ROTOR ASSY, MAGNETO 1 Rp286.500
3 DISCONTINUE
SUB: 32371-25H00-000		 CLAMP, STATOR LEAD 1 -
4 36651-25H10-000 CLAMP, MAGNETO LEAD 1 Rp11.500
5 07130-0512A-000
SUB: 07130-0512B-000		 BOLT, SENSOR 2 Rp4.000
6 07130-0512A-000
SUB: 07130-0512B-000		 BOLT, MAGNETO CLAMP 1 Rp4.000
7 07130-0525B-000 BOLT, MAGNETO STATOR 3 Rp6.500
8 08316-1012B-000 NUT, MAGNETO ROTOR 1 -
9 08341-31039-000 KEY, MAGNETO ROTOR 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
