THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.18 KICK STARTERFIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 ELECTRICALFIG.22 BATTERYFIG.23 SPEEDOMETERFIG.24 HEAD LAMPFIG.25 TURNSIGNAL LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESSFIG.28 HANDLE SWITCH

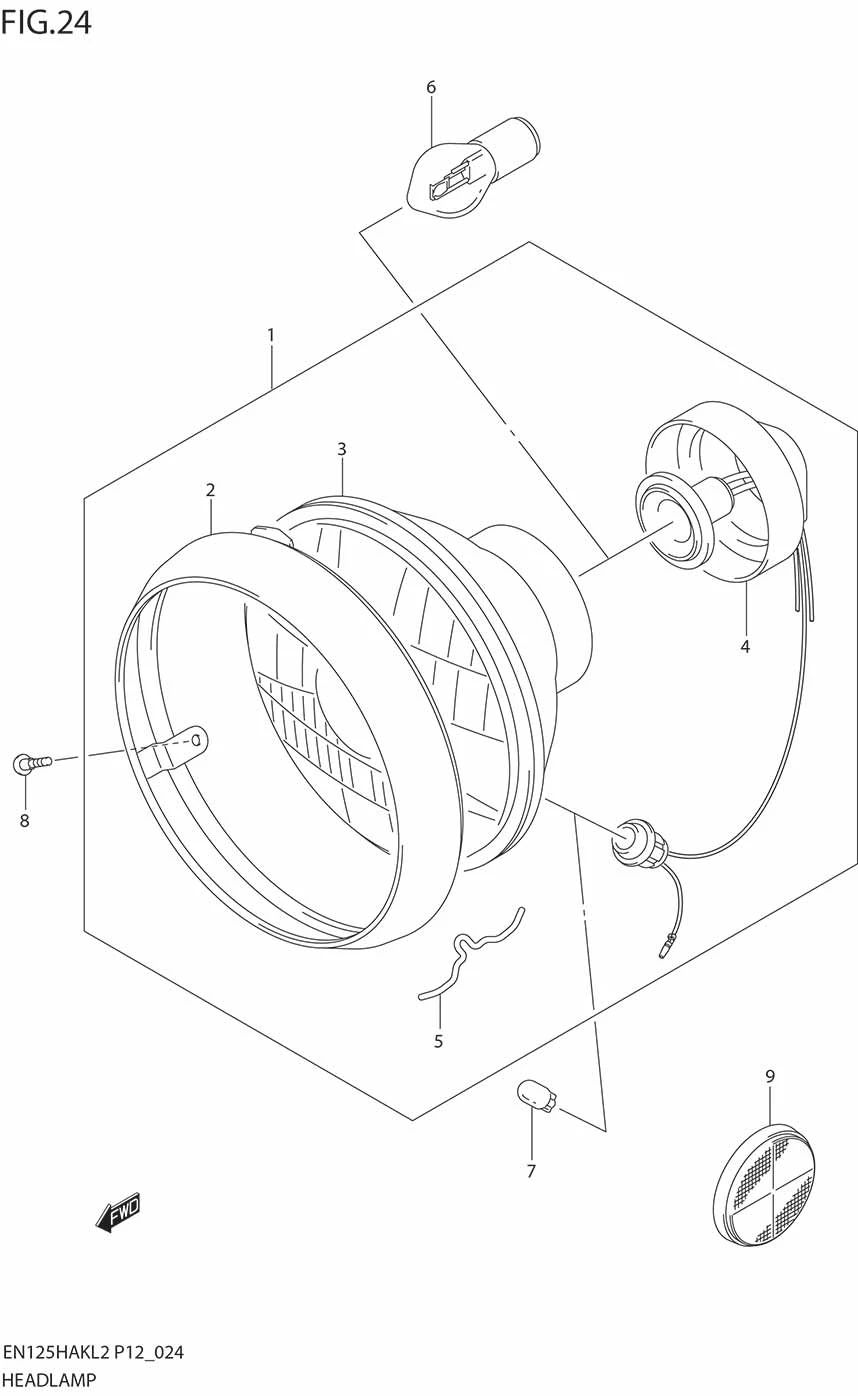

FIG.24 HEAD LAMP

FIG.24 HEAD LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35100H29B01H000
SUB: 35100-29B60-999		 HEADLAMP ASSY 1 Rp455.500
2 35111-29B60-000 ?RIM 1 Rp201.000
3 35121-29B60-000 ?UNIT 1 Rp196.500
4 35171-29B61-000
SUB: 35171-29B60-000		 ?CORD ASSY 1 Rp64.000
5 35172-29B60-000 ?SPRING 3 Rp9.000
6 09471-12020-000 BULB (12V35/35W) 1 Rp54.500
7 09471-12081-000 BULB (12V5W) 1 Rp11.000
8 35181-45F10-000 SCREW, HEADLAMP 2 Rp8.500
9 35950-04H01-000
SUB: 35950-04H11-000		 REFLEX REFLECTOR ASSY, FR 2 Rp30.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
