THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.18 KICK STARTERFIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 ELECTRICALFIG.22 BATTERYFIG.23 SPEEDOMETERFIG.24 HEAD LAMPFIG.25 TURNSIGNAL LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESSFIG.28 HANDLE SWITCH

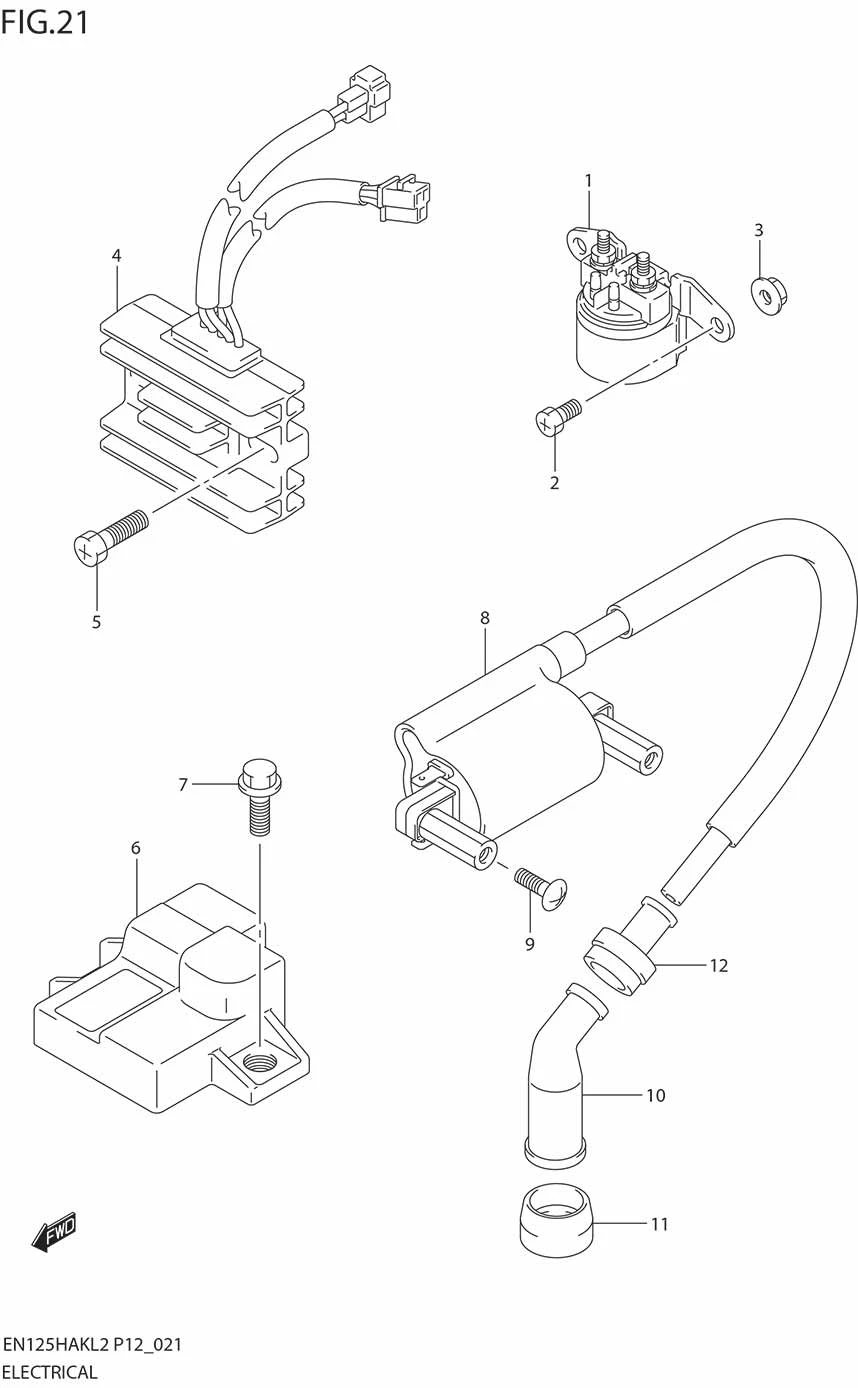

FIG.21 ELECTRICAL

FIG.21 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-49110-000 RELAY, STARTING MOTOR 1 Rp123.500
2 09128-06044-000
SUB: 09128-06004-000		 SCREW (6X10) 2 Rp9.500
3 08361-3506A-000 NUT 2 Rp4.000
4 32800-26H00-000 RECTIFIER, ASSY 1 -
5 09128-06057-000
SUB: 09128-06006-000		 B0LT (5X20) 2 Rp20.500
6 DISCONTINUE
SUB: 32900-26H60-000		 IGNITER ASSY 1 -
7 01550-0616B-000 SCREW, IGNITER 2 Rp5.500
8 33410-053K1-000
SUB: 33410-053D0-000		 COIL ASSY, IGNITION 1 Rp156.500
9 02142-0510A-000
SUB: 02142-0510B-000		 SCREW 2 Rp4.000
10 33510-04H10-000
SUB: 33510-04H00-000		 CAP, SPARK PLUG 1 Rp29.000
11 33541-38210-000 SEAL, SPARK PLUG 1 Rp11.000
12 33542-38B00-000 SEAL, HIGH TENSION CORD 1 Rp27.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
