THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.18 KICK STARTERFIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 ELECTRICALFIG.22 BATTERYFIG.23 SPEEDOMETERFIG.24 HEAD LAMPFIG.25 TURNSIGNAL LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESSFIG.28 HANDLE SWITCH

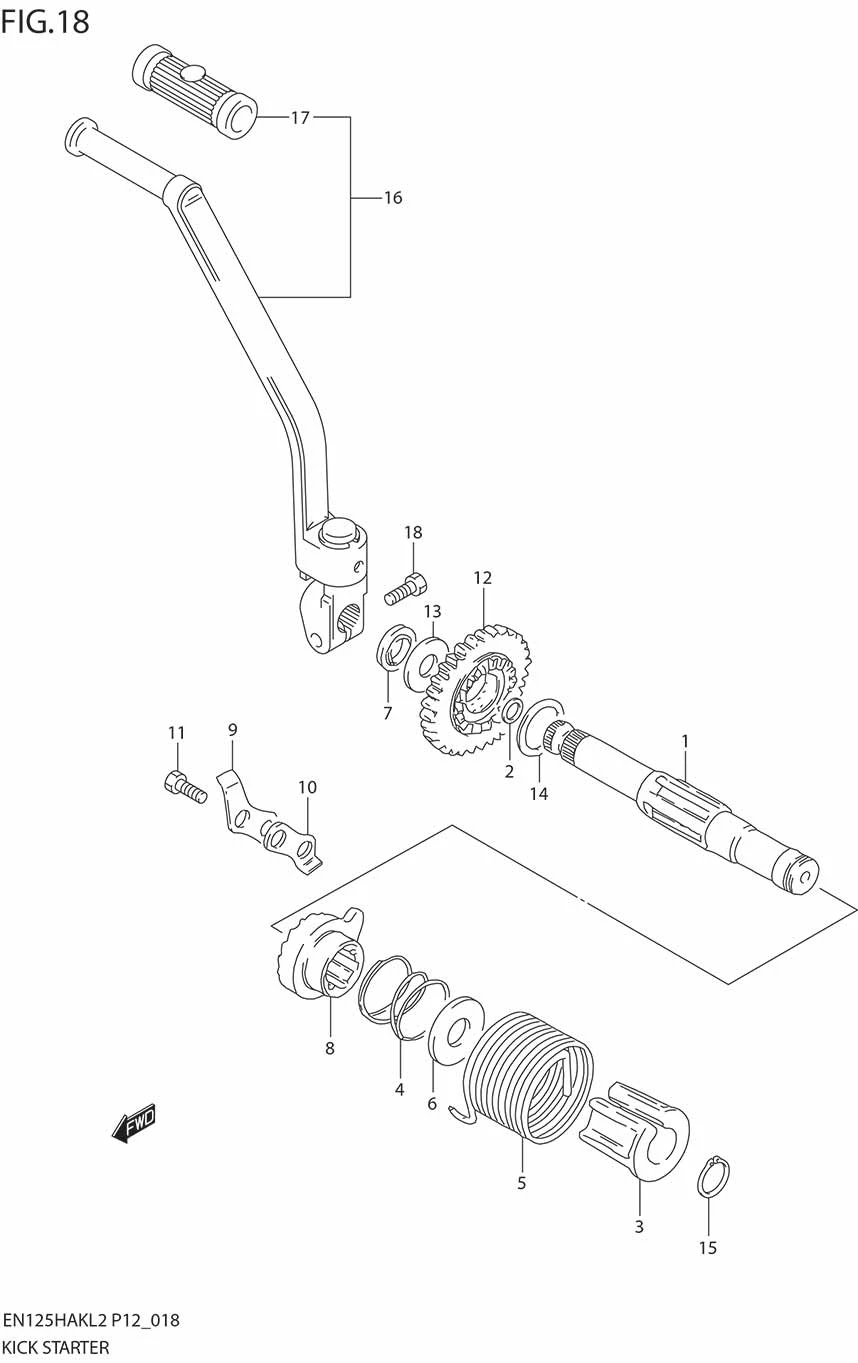

FIG.18 KICK STARTER

FIG.18 KICK STARTER
No No. Part Description Qty Price Per Pcs Remarks
1 26211-05210-000 SHAFT, KICK STARTER 1 Rp122.000
2 26213-26H00-000 SPACER, KICK START DRIVE GEAR 1 Rp6.500 16X22X2.9
3 26221-05200-000 GUIDE, KICK STARTER 1 Rp38.500
4 09440-32006-000 SPRING 1 Rp13.000
5 09448-45003-000 SPRING 1 Rp25.500
6 DISCONTINUE
SUB: 08211-17341-000		 PLATE, KICK STARTER 1 -
7 09285-16004-000 SEAL, KICK STARTER (16X24X5) 1 Rp15.500
8 26231-38202-000 STARTER, KICK 1 Rp204.500
9 DISCONTINUE
SUB: 26232-38200-000		 GUIDE, KICK STARTER 1 -
10 DISCONTINUE
SUB: 26233-32400-000		 STOPPER, KICK STARTER 1 -
11 01500-0820A-000
SUB: 01500-0820B-000		 BOLT 2 Rp5.500
12 26240-26H00-000
SUB: 26240-05202-000		 GEAR, DRIVE (NT:31) 1 Rp78.500
13 09160-16003-000 WASHER, RH (16X30.5X1.0) 1 Rp9.000
14 09181-20139-000 WASHER, LH (20X26X1.0) 1 Rp19.000
15 09380-17001-000 CIRCLIP 1 Rp13.500
16 26300-05320-000 LEVER ASSY, KICK STARTER 1 Rp227.500
17 DISCONTINUE
SUB: 26352-01000-000		 ?RUBBER 1 -
18 01500-08257-000 BOLT 1 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
