THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.18 KICK STARTERFIG.19 STARTING MOTORFIG.20 MAGNETOFIG.21 ELECTRICALFIG.22 BATTERYFIG.23 SPEEDOMETERFIG.24 HEAD LAMPFIG.25 TURNSIGNAL LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESSFIG.28 HANDLE SWITCH

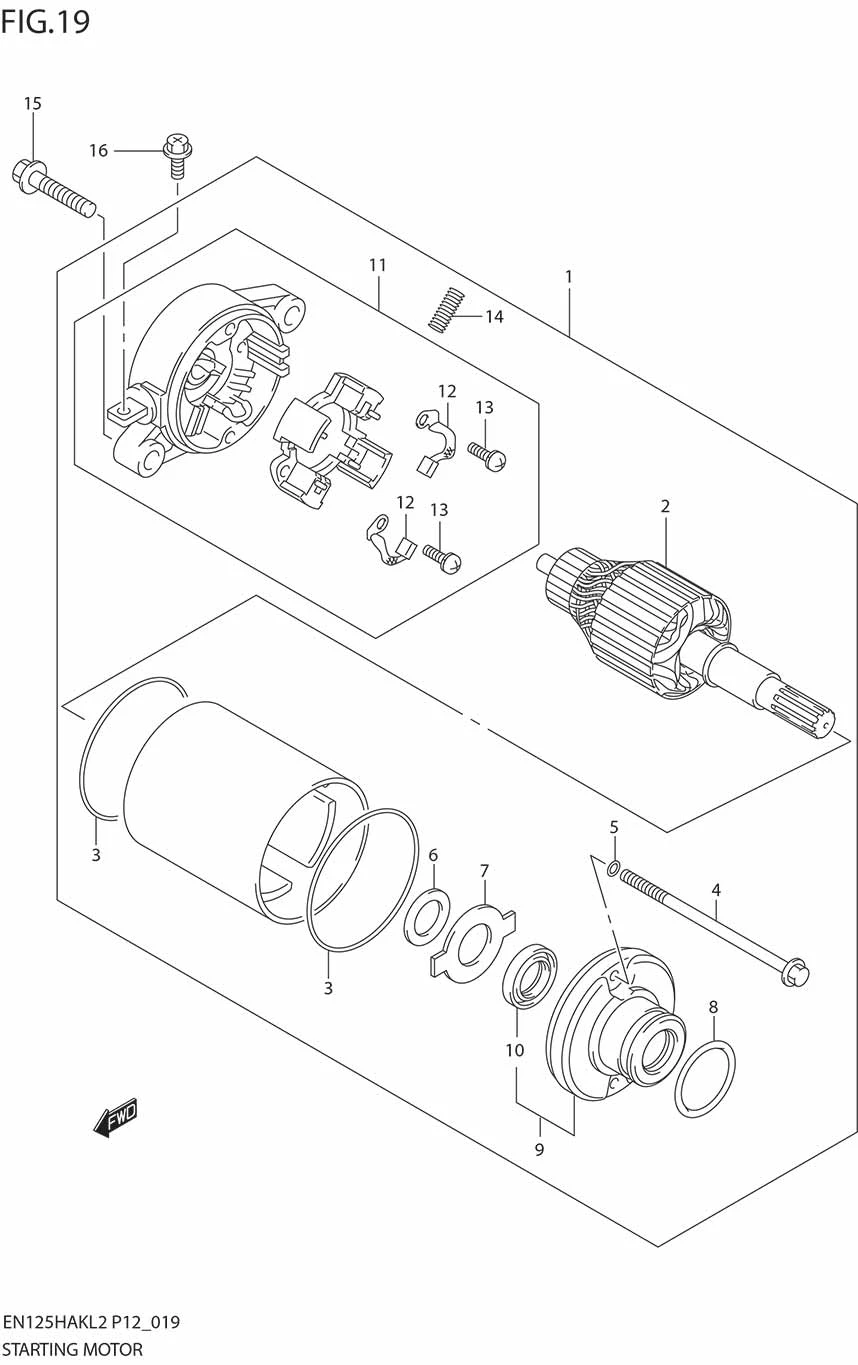

FIG.19 STARTING MOTOR

FIG.19 STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-25H01-000
SUB: 31100-25H00-000		 MOTOR ASSY, STARTING 1 Rp602.500
2 31310-25H00-000 ?AMATURE ASSY 1 -
3 31264-05530-000 ?O RING 2 Rp15.500
4 31281-25H00-000 ?BOLT, THROUTH 2 Rp42.000
5 31156-25H00-000 ?O RING 2 Rp21.000
6 DISCONTINUE
SUB: 31361-055A0-000		 ?SHIM 1 -
7 31361-25H00-000 ?PLATE LOCK 1 Rp18.000
8 09280-24003-000 ?O RING (D:3,ID:24.5) 1 Rp4.500
9 31150-25H00-000 ?BRACKET 1 -
10 31153-05530-000 ??OIL SEAL 1 Rp29.500
11 31175-25H00-000 ?FRAME ASSY 1 -
12 31132-25H00-000 ??BRUSH 2 Rp58.000
13 31134-25H00-000 ??SCREW 2 Rp15.000
14 31135-25H00-000 ?SPRING 4 Rp18.000
15 01547-0625A-000 BOLT 2 Rp6.500
16 DISCONTINUE
SUB: 09137-05004-000		 SCREW (5X8) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
