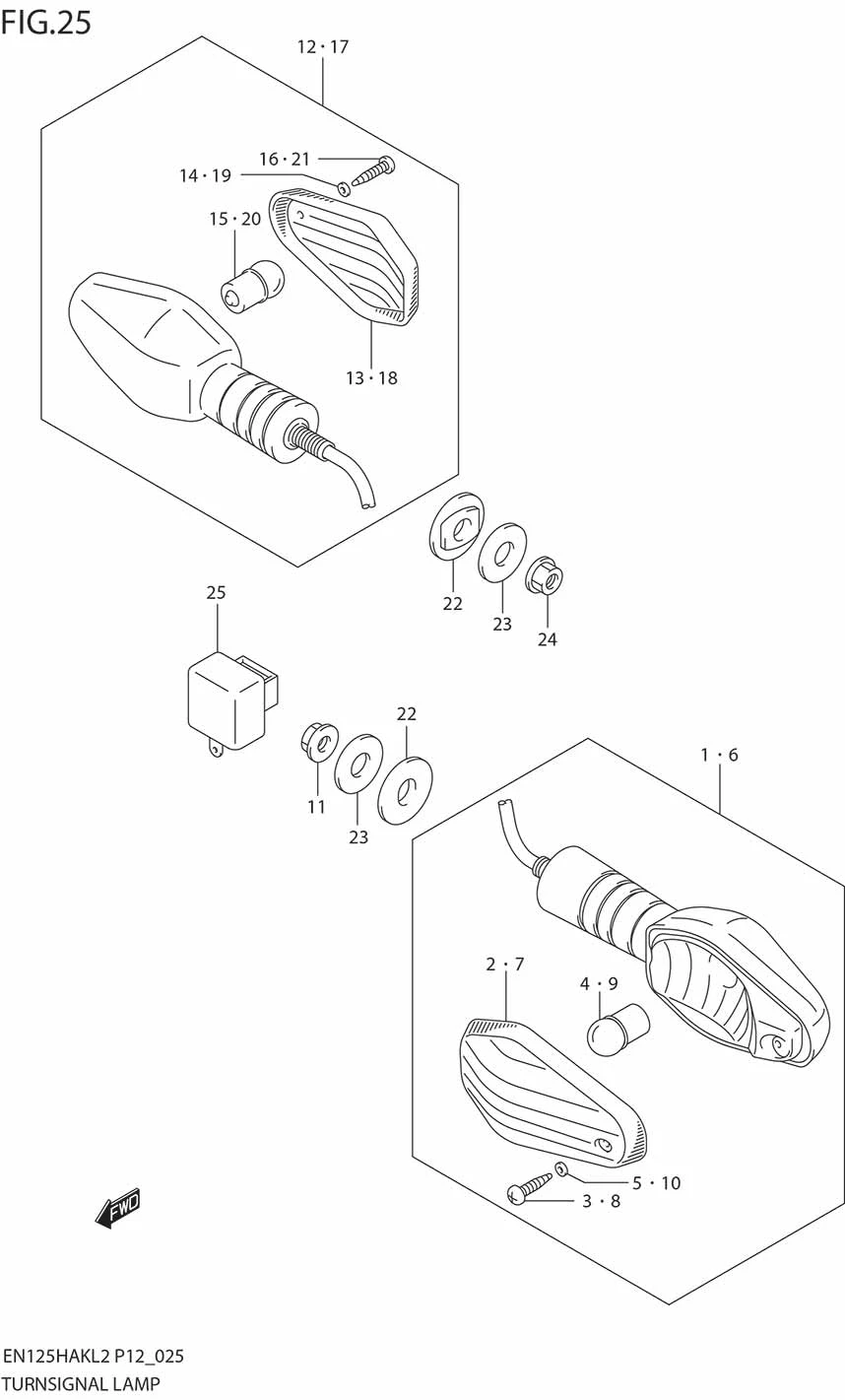

No	No. Part	Description	Qty	Price Per Pcs
1	35601-26H00-000	LAMP ASSY, FRONT TURNSIGNAL, RH	1	Rp112.000
2	35612-26H00-000	?LENS,R	1	-
3	35622-26H00-000	?GASKET	1	-
4	DISCONTINUE SUB: 09471-12062-000	?BULB,12V10W(TOKAI DENSO)	1	-
5	03211-0325B-000	?SCREW	1	-
6	35602-26H00-000	LAMP ASSY, FRONT TURNSIGNAL, LH	1	Rp112.000
7	35632-26H00-000	?LENS,L	1	-
8	35622-26H00-000	?GASKET	1	-
9	DISCONTINUE SUB: 09471-12062-000	?BULB,12V10W(TOKAI DENSO)	1	-
10	03211-0325B-000	?SCREW	1	-
11	08316-1010A-000	NUT, FRONT TURNSIGNAL LAMP	2	Rp3.500
12	35603-26H30-000	LAMP ASSY, REAR TURNSIGNAL, RH	1	Rp93.000
13	35652-26H00-000	?LENS,R	1	-
14	35669-26H00-000	?GASKET	1	-
15	DISCONTINUE SUB: 09471-12062-000	?BULB,12V10W(TOKAI DENSO)	1	-
16	03211-0325B-000	?SCREW	1	-
17	35604-26H30-000	LAMP ASSY, REAR TURNSIGNAL, LH	1	Rp93.000
18	35672-26H00-000	?LENS,L	1	-
19	35669-26H00-000	?GASKET	1	-
20	DISCONTINUE SUB: 09471-12062-000	?BULB,12V10W(TOKAI DENSO)	1	-
21	03211-0325B-000	?SCREW	1	-
22	35695-17C00-000	SPACER, RR TURNSIGNAL	2	Rp24.500
23	09160-10501-000	WASHER (10.5X30X2.3)	2	Rp13.000
24	08310-0010A-000 SUB: 08310-0010B-000	NUT, RR	2	Rp3.500
25	38610-26H02-000 SUB: 38610-26H01-000	RELAY ASSY, TURNSIGNAL	1	Rp82.500
