SPLASH

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.65 STARTING MOTOR (MT)FIG.66 STARTING MOTOR (AT)FIG.67 GENERATOR (MT)FIG.68 GENERATOR (AT)FIG.69 BATTERY (TYPE 1)FIG.70 BATTERY (TYPE 2)FIG.71 SPEEDOMETERFIG.72 ACHOMETERFIG.73 HEADLAMPFIG.74 FRONT FOG LAMPFIG.75 REAR LAMPFIG.76 ROOM LAMPFIG.77 WIRING HARNESS (TYPE 1)FIG.78 WIRING HARNESS (TYPE 2)FIG.79 ELECTRICAL CONTROL (TYPE 1)FIG.80 ELECTRICAL CONTROL (TYPE 2)FIG.81 LOCK SET (MT)FIG.82 LOCK SET (AT)FIG.83 FRONT WINDOW WIPERFIG.84 WINDOW WASHERFIG.85 RADIO (TYPE 1)FIG.86 RADIO (TYPE 2)

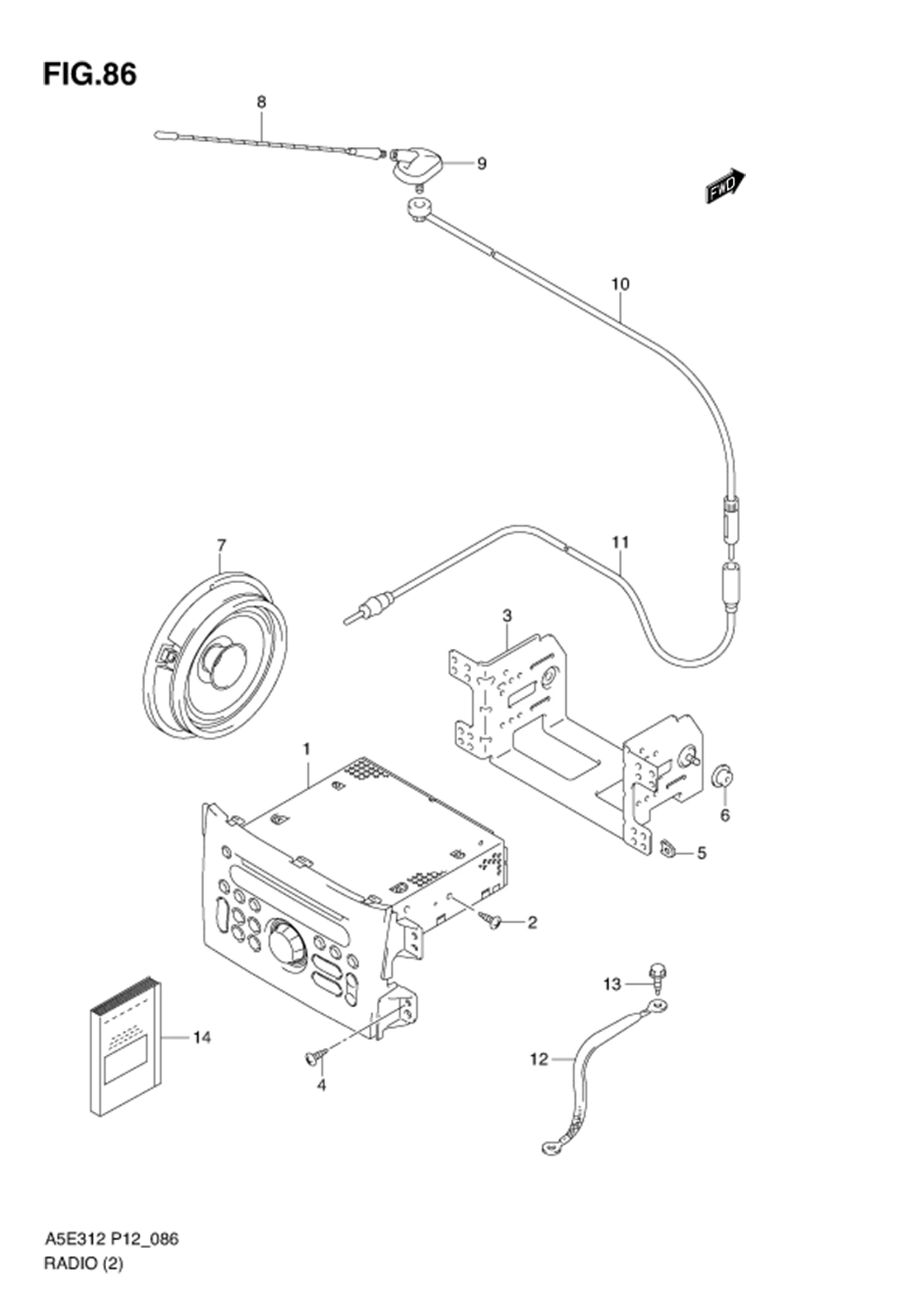

FIG.86 RADIO (TYPE 2)

FIG.86 RADIO (TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 39101M83K10-BWJ		 TUNER ASSY 1 -
2 02142-0508A-000
SUB: 02142-0506A-000		 SCREW 4 Rp3.500
3 39321M51K10-000 BRACKET,TUNER 1 Rp112.000
4 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
5 09148M05L04-000 NUT 4 Rp5.000
6 34955M66K00-000 BUSH,TUNER BRACKET 2 Rp8.000
7 39102M74LA1-000
SUB: 39102M74LA0-000		 SPEAKER ASSY 4 Rp504.500
8 39251M68K00-000 ROD,ANTENNA 1 Rp181.000
9 39253M75J00-000 BASE,ANTENNA 1 Rp449.000
10 39271M51K00-000 FEEDER,ROOF 1 Rp234.500
11 39270M51K00-000 FEEDER,INSTRUMENT PANEL 1 Rp165.500
12 39312-78F10-000
SUB: 39312M78F10-000		 WIRE,NOISE SUPPRESSOR 1 Rp47.500
13 09115-06005-000 BOLT (6X16) 1 Rp14.000
14 39103M83K10-000 MANUAL,AUDIO 1 Rp39.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
