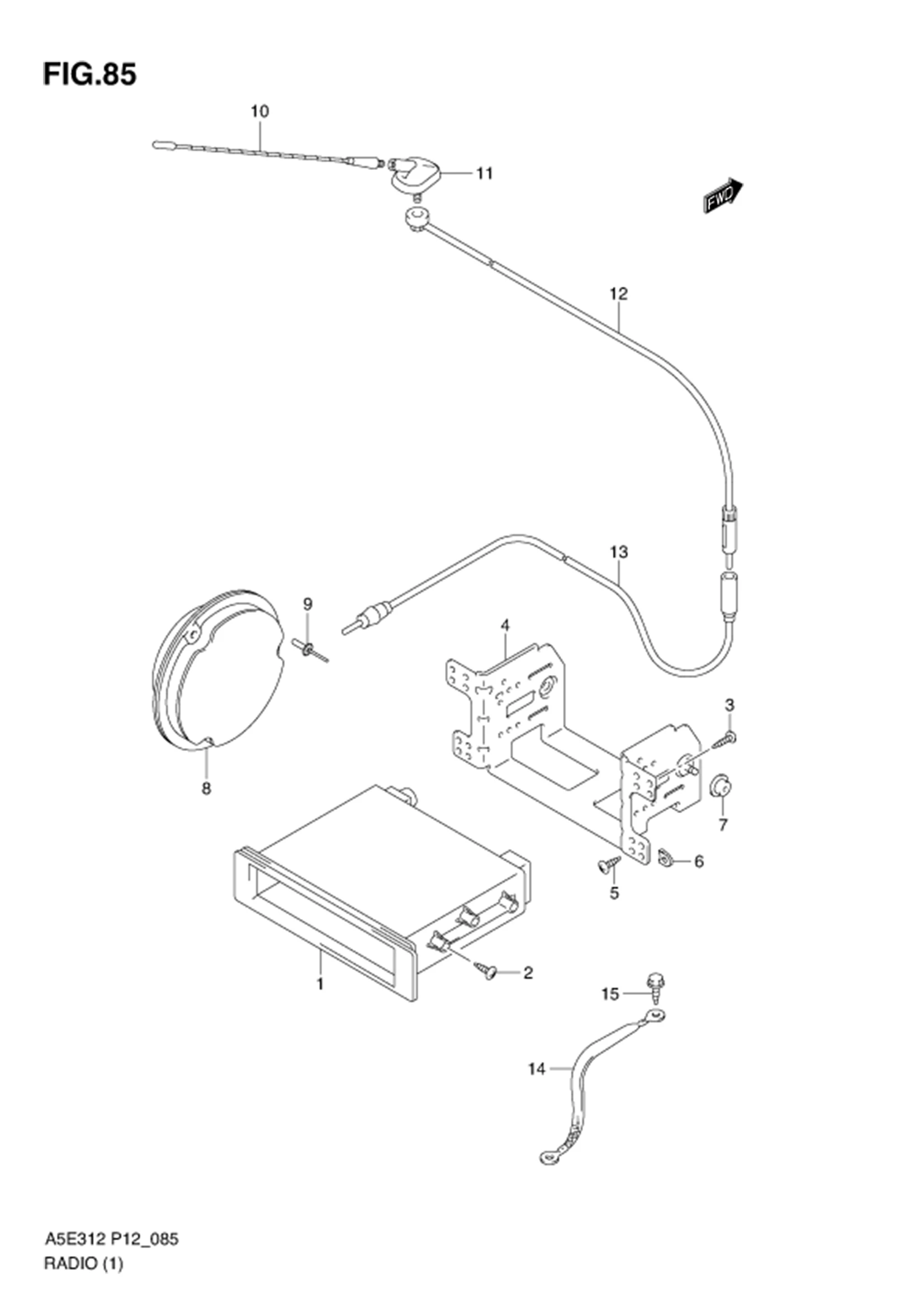

FIG.85 RADIO (TYPE 1)

FIG.85 RADIO (TYPE 1)
No No. Part Description Qty Price Per Pcs Remarks
1 39182M83K10-000 POCKET,TUNER 1 Rp97.000
2 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 4 Rp3.500
3 03541-0512A-000 SCREW 4 Rp3.500
4 39321M51K10-000 BRACKET,TUNER 1 Rp112.000
5 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
6 09148M05L04-000 NUT 4 Rp5.000
7 34955M66K00-000 BUSH,TUNER BRACKET 2 Rp8.000
8 39354M68K00-000 COVER,SPEAKER HOLE 4 Rp75.500
9 39242-55K00-000 RIVET,SPEAKER 12 Rp25.000
10 39251M68K00-000 ROD,ANTENNA 1 Rp181.000
11 39253M75J00-000 BASE,ANTENNA 1 Rp449.000
12 39271M51K00-000 FEEDER,ROOF 1 Rp234.500
13 39270M51K00-000 FEEDER,INSTRUMENT PANEL 1 Rp165.500
14 39312-78F10-000
SUB: 39312M78F10-000		 WIRE,NOISE SUPPRESSOR 1 Rp47.500
15 09115-06005-000 BOLT (6X16) 1 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
