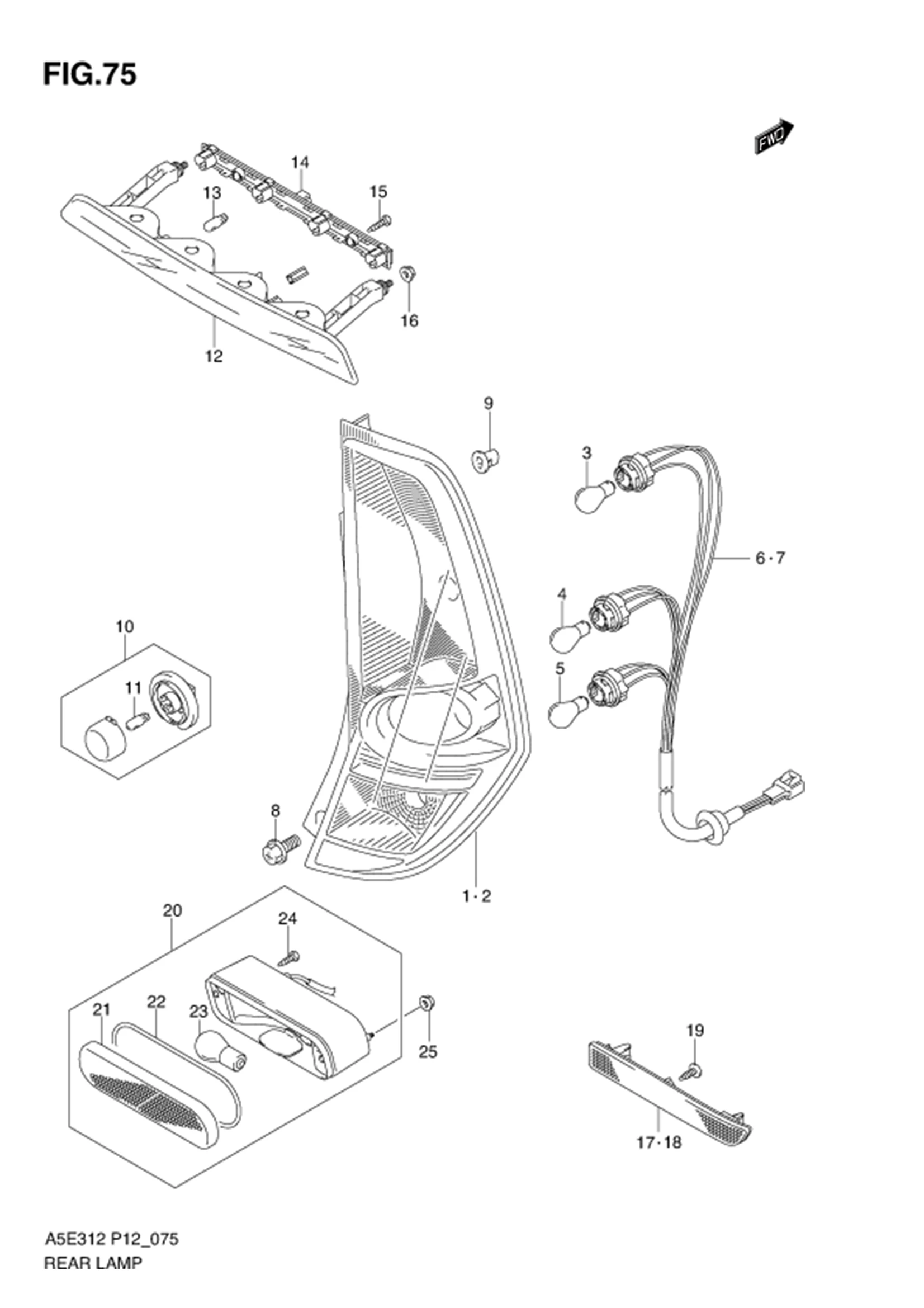

FIG.75 REAR LAMP

FIG.75 REAR LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35650M83K01-000
SUB: 35650M83K00-000		 LAMP UNIT,RR COMBINATION RH 1 Rp798.000
2 35750M83K01-000
SUB: 35670M83K00-000		 LAMP UNIT,RR COMBINATION LH 1 Rp798.000
3 09471-12083-000 BULB (12V,21/5W) 2 Rp62.000
4 09471-12186-000
SUB: 09471B12186N000		 BULB (12V,21W)(AMBER) 2 Rp22.000
5 09471-12045-000
SUB: 09471B12045N000		 BULB (12V,21W) 2 Rp13.500
6 35658M83K00-000 SOCKET & CORD ASSY 1 Rp170.000
7 35678M83K00-000 SOCKET & CORD ASSY 1 Rp165.500
8 02162-0616A-000 SCREW (6X16) 4 Rp3.000
9 35153M59K10-000 GROMMET,RR COMB LAMP 4 Rp8.000
10 35910-67L22-000
SUB: 35910M83K00-000		 LAMP ASSY,LICENSE 2 Rp62.000
11 09471-12216-000
SUB: 09471B12216N000		 •BULB (12V,5W) 2 Rp15.000
12 35820M83K11-000
SUB: 35820M83K10-000		 LAMP UNIT,HIGH MOUNT STOP 1 Rp281.500
13 09471-12216-000
SUB: 09471B12216N000		 BULB (12V,5W) 4 Rp15.000
14 35817M83K00-000 HOLDER,BULB 1 Rp21.000
15 35827M83K00-000 SCREW,BULB HOLDER 2 Rp12.500
16 09159-06100-000 NUT 2 Rp19.000
17 35950M55K01-000
SUB: 35950M55K00-000		 REFLECTOR ASSY,REAR RH 1 Rp54.000
18 35970M55K01-000
SUB: 35970M55K00-000		 REFLECTOR ASSY,REAR LH 1 Rp54.000
19 03141-0516B-000
SUB: 03141-0516A-000		 SCREW 2 Rp3.500
20 36570M83K00-000 LAMP ASSY,REAR FOG 1 Rp271.500
21 DISCONTINUE
SUB: 36572M75J00-000		 •LENS,REAR FOG LAMP 1 -
22 36573M75J00-000 •PACKING,REAR FOG LAMP 1 Rp12.500
23 09471-12045-000
SUB: 09471B12045N000		 •BULB (12V,21W) 1 Rp13.500
24 03511-0420B-000 •SCREW 2 Rp16.000
25 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
