  5. FIG.78 WIRING HARNESS (TYPE 2)

SPLASH

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.65 STARTING MOTOR (MT)FIG.66 STARTING MOTOR (AT)FIG.67 GENERATOR (MT)FIG.68 GENERATOR (AT)FIG.69 BATTERY (TYPE 1)FIG.70 BATTERY (TYPE 2)FIG.71 SPEEDOMETERFIG.72 ACHOMETERFIG.73 HEADLAMPFIG.74 FRONT FOG LAMPFIG.75 REAR LAMPFIG.76 ROOM LAMPFIG.77 WIRING HARNESS (TYPE 1)FIG.78 WIRING HARNESS (TYPE 2)FIG.79 ELECTRICAL CONTROL (TYPE 1)FIG.80 ELECTRICAL CONTROL (TYPE 2)FIG.81 LOCK SET (MT)FIG.82 LOCK SET (AT)FIG.83 FRONT WINDOW WIPERFIG.84 WINDOW WASHERFIG.85 RADIO (TYPE 1)FIG.86 RADIO (TYPE 2)

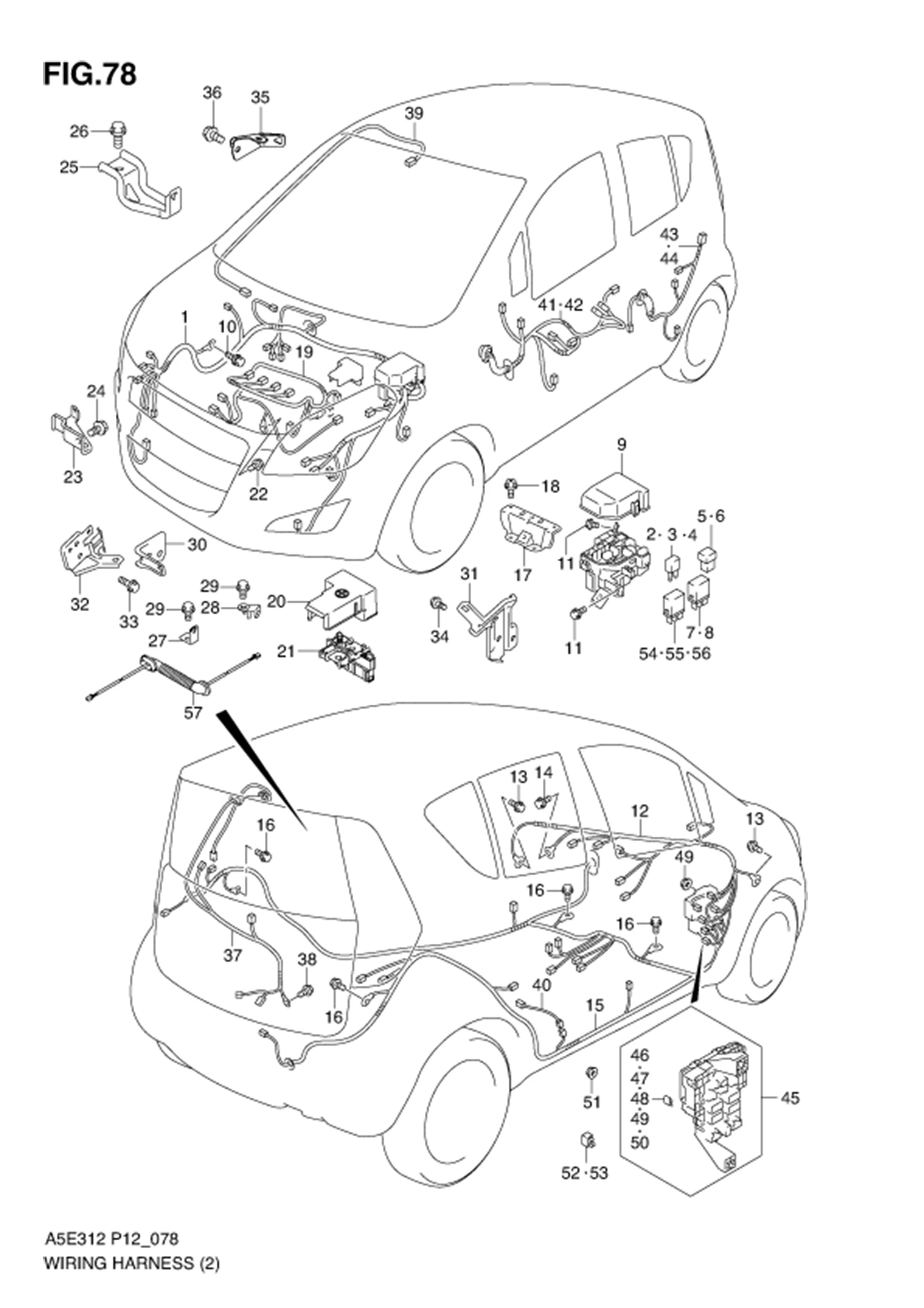

FIG.78 WIRING HARNESS (TYPE 2)

FIG.78 WIRING HARNESS (TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
1-2 36910M83K70-000 HARNESS ASSY,MAIN 1 Rp8.161.000 AT
1-1 36069M83K20-000
SUB: 36910M83K20-000		 HARNESS ASSY,MAIN 1 Rp12.890.500 MT
2 09481-10501-000 •FUSE (10A) 1 Rp12.000
3 09481-15501-000 •FUSE (15A) 0 Rp12.000
4 09481-30501-000 •FUSE (30A) 2 Rp13.000
5 09481-30401-000 •FUSE (30A) 5 Rp42.000
6 09481-50401-000 •FUSE (50A) 1 Rp50.500
7 38860-76F01-000
SUB: 38860M79F00-000		 •RELAY,STARTER MOTOR 1 Rp47.000
8 38860-76F01-000
SUB: 38860M79F00-000		 •RELAY,RADIATOR 3 Rp47.000
9 36717M63J00-000 COVER,RELAY BOX 1 Rp174.000
10 09115-06005-000 BOLT (6X16) 3 Rp14.000
11 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 2 Rp3.500
12 36620M83K60-000 HARNESS ASSY,INSTRUMENT PANEL 1 Rp3.447.000
13 09115-06005-000 BOLT (6X16) 2 Rp14.000
14 02162-0612A-000 BOLT 1 Rp11.000
15-2 36630M83KB0-000 HARNESS ASSY,FLOOR 1 Rp2.953.000 AT
15-1 36630M83K80-000 HARNESS ASSY,FLOOR 1 Rp2.953.000 MT
16 09115-06005-000 BOLT (6X16) 4 Rp14.000
17 75881M62J00-000 BRACKET,FLOOR HARNESS 1 Rp10.000
18 02162-0612A-000 SCREW 2 Rp11.000
19-1 36650M83K21-000
SUB: 36650M83K20-000		 HARNESS ASSY,ENGINE 1 Rp8.015.000 MT
19-2 36650M83K40-000 HARNESS ASSY,ENGINE 1 Rp5.971.000 AT
20 36739-62J00-000 •FUSE,BATTERY 1 Rp298.500
21 36694-75J00-000 •COVER,BATTERY TERMINAL 1 Rp144.500
22 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
23 36651-51K00-000
SUB: 36651M51K00-000		 BRACKET,ENGINE HARNESS T/M 1 Rp15.000 MT
24 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 1 Rp3.500 MT
25 DISCONTINUE
SUB: 36651M68K40-000		 BRACKET,ENGINE HARNESS MT 1 - MT
26 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 - MT
27 36651M68K00-000 BRACKET,ENGINE HARNESS AT 1 Rp10.000 AT
28 36995M57B30-000 BRACKET,HARNESS 1 Rp5.500 AT
29 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 2 Rp3.500 AT
30 36653-68L00-000
SUB: 36653B68L00N000		 BRACKET,ENGINE HARNESS THERMO 1 Rp9.000
31 36653M63J00-000 BRACKET,ENGINE HARNESS BODY 1 Rp14.500
32 36653-68K00-000
SUB: 36653M68K00-000		 BRACKET,ENGINE HARNESS EGR 1 Rp12.000
33 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
34 02162-0612A-000 BOLT 2 Rp11.000
35 36653-68L10-000
SUB: 36653M68L10-000		 BRACKET,ENGINE HARNESS HOOK 1 Rp11.000
36 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
37 36680M83K50-000 HARNESS ASSY,BACK DOOR 1 Rp290.500
38 09115-06005-000 BOLT (6X16) 1 Rp14.000
39 36820M83K00-000 WIRE,DOOM LAMP 1 Rp116.000
40 36840M83K00-000 WIRE,FUEL PUMP 1 Rp200.000
41 36756M83K30-000 WIRE,FRONT DOOR MAIN 1 Rp662.000
42 36757M83K30-000 WIRE,FRONT DOOR SUB 1 Rp428.500
43 36751M83K10-000 WIRE,REAR DOOR RH 1 Rp311.500
44 36751M83KB0-000 WIRE,REAR DOOR LH 1 Rp311.500
45 36780-83K02-000 MODULE SET,JUNCTION BLOCK & BODY CONTROL 1 Rp3.905.000
46 09481-10501-000 •FUSE (10A) 9 Rp12.000
47 09481-15501-000 •FUSE (15A) 9 Rp12.000
48 09481-20501-000 •FUSE (20A) 2 Rp14.500
49 09481-25501-000 •FUSE (25A) 1 Rp14.000
50 09481-30401-000 •FUSE (30A) 1 Rp42.000
51 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
52 38860-76F01-000
SUB: 38860M79F00-000		 RELAY,HEATER 1 Rp47.000
53 38860-76F01-000
SUB: 38860M79F00-000		 RELAY,HORN 1 Rp47.000
54 38860-76F01-000
SUB: 38860M79F00-000		 RELAY,MAIN 1 Rp47.000
55 38860-76F01-000
SUB: 38860M79F00-000		 RELAY,FUEL PUMP 1 Rp47.000
56 38860-76F01-000
SUB: 38860M79F00-000		 RELAY,AT 1 Rp47.000 AT
57 38834M83K20-000 WIRE,HIGH MOUNT STOP LAMP 1 Rp86.500
