  5. FIG.77 WIRING HARNESS (TYPE 1)

SPLASH

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.65 STARTING MOTOR (MT)FIG.66 STARTING MOTOR (AT)FIG.67 GENERATOR (MT)FIG.68 GENERATOR (AT)FIG.69 BATTERY (TYPE 1)FIG.70 BATTERY (TYPE 2)FIG.71 SPEEDOMETERFIG.72 ACHOMETERFIG.73 HEADLAMPFIG.74 FRONT FOG LAMPFIG.75 REAR LAMPFIG.76 ROOM LAMPFIG.77 WIRING HARNESS (TYPE 1)FIG.78 WIRING HARNESS (TYPE 2)FIG.79 ELECTRICAL CONTROL (TYPE 1)FIG.80 ELECTRICAL CONTROL (TYPE 2)FIG.81 LOCK SET (MT)FIG.82 LOCK SET (AT)FIG.83 FRONT WINDOW WIPERFIG.84 WINDOW WASHERFIG.85 RADIO (TYPE 1)FIG.86 RADIO (TYPE 2)

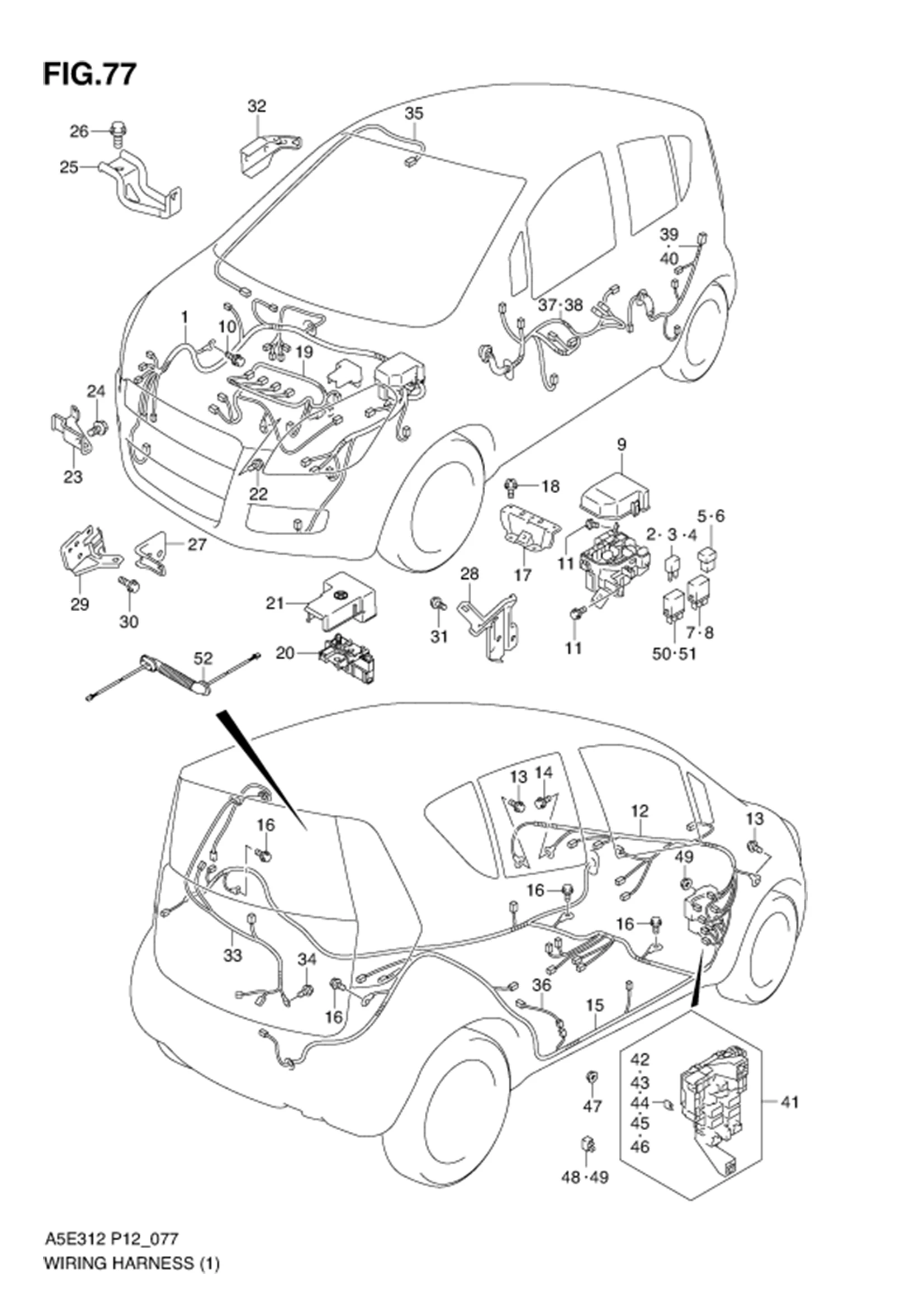

FIG.77 WIRING HARNESS (TYPE 1)

FIG.77 WIRING HARNESS (TYPE 1)
No No. Part Description Qty Price Per Pcs Remarks
1-2 36610M83K20-000 HARNESS ASSY,MAIN 1 Rp7.149.500 W/ABS
1-1 36610M83K10-000 HARNESS ASSY,MAIN 1 Rp5.989.500 N/ABS
2 09481-10501-000 •FUSE (10A) 1 Rp12.000
3 09481-15501-000 •FUSE (15A) 5 Rp12.000
4 09481-30501-000 •FUSE (30A) 2 Rp13.000
5 09481-30401-000 •FUSE (30A) 5 Rp42.000
6 09481-50401-000 •FUSE (50A) 1 Rp50.500
7 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY,STARTER MOTOR 1 Rp47.000
8 38860-76F01-000
SUB: 38860M79F00-000		 •RELAY,RADIATOR 3 Rp47.000
9 36717M63J00-000
SUB: 36717-63J00-000		 COVER,RELAY BOX 1 Rp174.000
10 09115-06005-000 BOLT (6X16) 3 Rp14.000
11 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 2 Rp3.500
12 36620M83K10-000 HARNESS ASSY,INSTRUMENT PANEL 1 Rp2.358.000
13 09115-06005-000 BOLT (6X16) 2 Rp14.000
14 02162-0612A-000 BOLT 1 Rp11.000
15-1 36630M83K10-000 HARNESS ASSY,FLOOR 1 Rp2.415.500 N/ABS
15-2 36630M83K20-000 HARNESS ASSY,FLOOR 1 Rp2.546.500 W/ABS
16 09115-06005-000 BOLT (6X16) 4 Rp14.000
17 75881M62J00-000 BRACKET,FLOOR HARNESS 1 Rp10.000
18 02162-0612A-000 SCREW 2 Rp11.000
19-1 36650M83K10-000 HARNESS ASSY,ENGINE 1 Rp5.159.000 N/ABS
19-2 36650M83K00-000 HARNESS ASSY,ENGINE 1 Rp5.120.500 W/ABS
20 36739-62J00-000 •FUSE,BATTERY 1 Rp298.500
21 36694-75J00-000 •COVER,BATTERY TERMINAL 1 Rp144.500
22 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
23 36651-51K00-000
SUB: 36651B51K00N000		 BRACKET,ENGINE HARNESS T/M 1 Rp15.000
24 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 1 Rp3.500
25 DISCONTINUE
SUB: 36651M68K40-000		 BRACKET,ENGINE HARNESS MT 1 -
26 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
27 36653-68L00-000
SUB: 36653B68L00N000		 BRACKET,ENGINE HARNESS THERMO 1 Rp9.000
28 DISCONTINUE
SUB: 36653-63J10-000		 BRACKET,ENGINE HARNESS BODY 1 -
29 36653-68K00-000
SUB: 36653M68K00-000		 BRACKET,ENGINE HARNESS EGR 1 Rp12.000
30 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
31 02162-0612A-000 BOLT 2 Rp11.000
32 36654-51K20-000 BRACKET,ENGINE HARNESS HOOK 1 Rp74.000
33 36680M83K00-000 HARNESS ASSY,BACK DOOR 1 Rp203.500
34 09115-06005-000 BOLT (6X16) 1 Rp14.000
35 36820M83K00-000 WIRE,DOOM LAMP 1 Rp116.000
36 36840M83K00-000 WIRE,FUEL PUMP 1 Rp200.000
37 36756M83K20-000 WIRE,FRONT DOOR MAIN 1 Rp515.500
38 36757M83K10-000 WIRE,FRONT DOOR SUB 1 Rp320.000
39 36751M83K10-000 WIRE,REAR DOOR RH 1 Rp311.500
40 36751M83KB0-000 WIRE,REAR DOOR LH 1 Rp311.500
41 36780-83K02-000 MODULE SET,JUNCTION BLOCK & BODY CONTROL 1 Rp3.905.000
42 09481-10501-000 •FUSE (10A) 9 Rp12.000
43 09481-15501-000 •FUSE (15A) 9 Rp12.000
44 09481-20501-000 •FUSE (20A) 2 Rp14.500
45 09481-25501-000 •FUSE (25A) 1 Rp14.000
46 09481-30401-000 •FUSE (30A) 1 Rp42.000
47 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
48 38860-76F01-000
SUB: 38860M79F00-000		 RELAY,HEATER 1 Rp47.000
49 38860-76F01-000
SUB: 38860M79F00-000		 RELAY,HORN 1 Rp47.000
50 38860-76F01-000
SUB: 38860M79F00-000		 RELAY,MAIN 1 Rp47.000
51 38860-76F01-000
SUB: 38860M79F00-000		 RELAY,FUEL PUMP 1 Rp47.000
52 38834M83K20-000 WIRE,HIGH MOUNT STOP LAMP 1 Rp86.500
