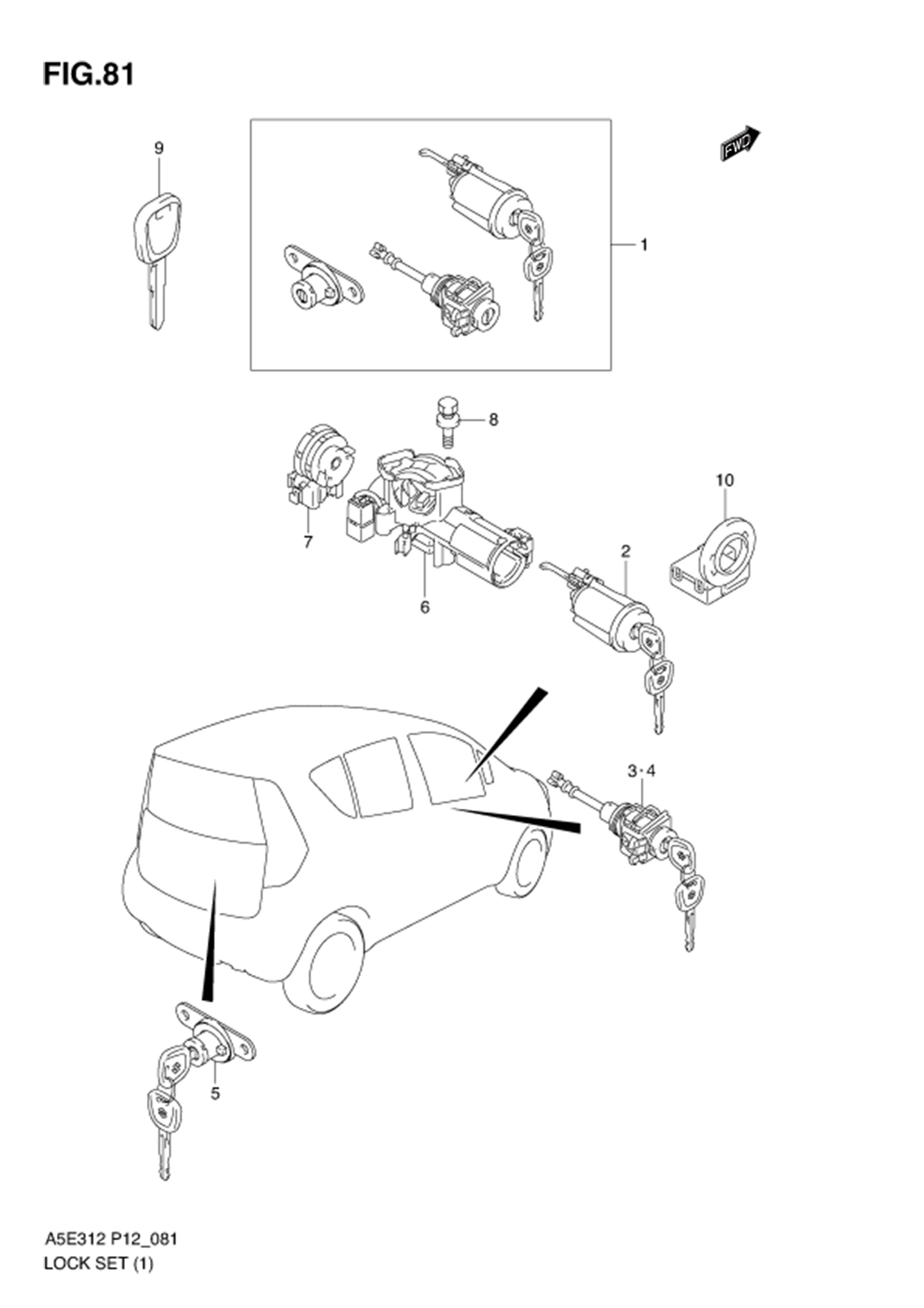

FIG.81 LOCK SET (MT)

FIG.81 LOCK SET (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 37019M83K50-000
SUB: 37102M83890-000		 LOCK SET 1 Rp2.258.500
2 37102M55840-000 LOCK ASSY,STEERING 1 Rp1.654.000
3 82270M63830-000 CYLINDER,FR DOOR LATCH RH 1 Rp391.000
4 82280M63830-000 CYLINDER,FR DOOR LATCH LH 1 Rp391.000
5 82504M83K00-000
SUB: 82500M83850-000		 CYLINDER ASSY,BACK DOOR LOCK 1 Rp282.500
6 37101M75J10-000 LOCK BODY,STEERING 1 Rp1.020.500
7 37111M75J00-000 SWITCH 1 Rp280.500
8 37152M75J00-000 BOLT,STEERING LOCK 2 Rp16.000
9 37145M75J20-000 KEY,BLANK 1 Rp262.500 OPT
10 33970M68K20-000
SUB: 33970M68K10-000		 CONTROLLER ASSY,IMMOBILIZER 1 Rp960.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
