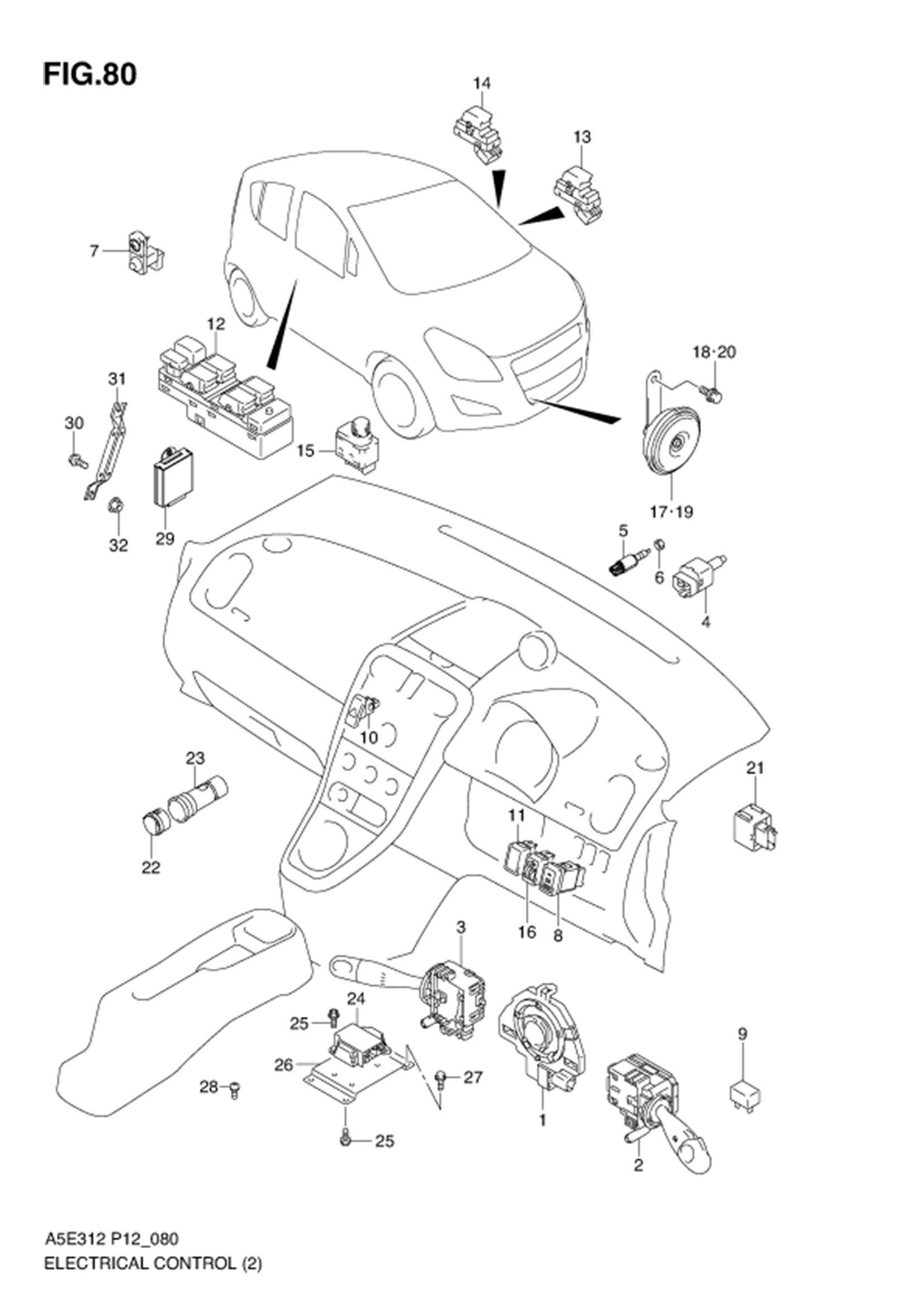

FIG.80 ELECTRICAL CONTROL (TYPE 2)

FIG.80 ELECTRICAL CONTROL (TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
1 37485M55K00-000 BODY ASSY,CANCEL CAM & HORN 1 Rp218.000
2 37210M75J00-000 SWITCH ASSY,LIGHTING & TURN SIGNAL 1 Rp463.000
3 37310M75J00-000 SWITCH ASSY,WIPER & WASHER 1 Rp504.000
4-1 37740M76G00-000
SUB: 37740M79G00-000		 SWITCH ASSY,STOP LAMP 1 Rp105.500 MT
4-2 37740M68K00-000 SET,STOP LAMP SWITCH 1 Rp162.000 AT
5 37970M71M02-000
SUB: 37970M71M00-000		 SWITCH ASSY,CLUTCH 1 Rp86.500 MT
6 09140-10043-000 NUT 1 Rp14.500 MT
7 37670M55K00-000 SWITCH ASSY,DOOR 4 Rp81.000
8 37270M75J20-000 SWITCH ASSY,FRONT FOG LAMP 1 Rp165.500
9 38860-76F01-000
SUB: 38860M79F00-000		 RELAY,FRONT FOG LAMP 1 Rp47.000
10 37430M75J00-P4Z SWITCH ASSY,HAZARD WARNING (GRAY) 1 Rp178.500
11 37285-75J00-000
SUB: 37285M75J00-000		 CAP,OPTION SWITCH HOLE 0 Rp11.000
12 37990M75J10-000 SWITCH ASSY,POWER WINDOW MAIN 1 Rp1.015.000
13 37995M75J00-000 SWITCH ASSY,POWER WINDOW SUB 1 Rp178.000
14 37995M75J00-000 SWITCH ASSY,POWER WINDOW REAR 2 Rp178.000
15 37950M55K01-000 SWITCH ASSY,MIRROR 1 Rp190.000
16 35180M68K20-000 SWITCH ASSY,HEADLAMP LEVELING 1 Rp168.500
17 38500M83K00-000 HORN ASSY,LOW PITCHED 1 Rp170.000
18 09115-08001-000 BOLT (8X18) 1 Rp21.500
19 38500M83KA0-000 HORN ASSY,HIGH PITCHED 1 Rp217.500
20 01580-0820A-000 BOLT 1 Rp32.000
21 38610M75J10-000
SUB: 38610M75J00-000		 RELAY,TURN & 4WAY 1 Rp368.000
22 DISCONTINUE
SUB: 39420M75J00-000		 BODY,ACCESSORY SOCKET 1 -
23 39441M75J01-P4Z COVER,ACCESSORY SOCKET 1 Rp27.000
24 38720M83K22-000
SUB: 38720M83K01-000		 CONTROLLER ASSY,POWER STEERING 1 Rp6.402.000
25 02162-0508A-000
SUB: 02162B0508AN000		 SCREW 4 Rp3.500
26 38721M51K00-000 BRACKET,POWER STEERING 1 Rp24.500
27 09115-06005-000 BOLT (6X16) 4 Rp14.000
28 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 3 -
29 38880-83K00-000 CONTROLLER ASSY,AT 1 Rp11.485.500 AT
30 02162-0610A-000 SCREW 2 Rp5.000 AT
31 38881M83K00-000 BRACKET,AT CONTROLLER 1 Rp21.000 AT
32 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500 AT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
