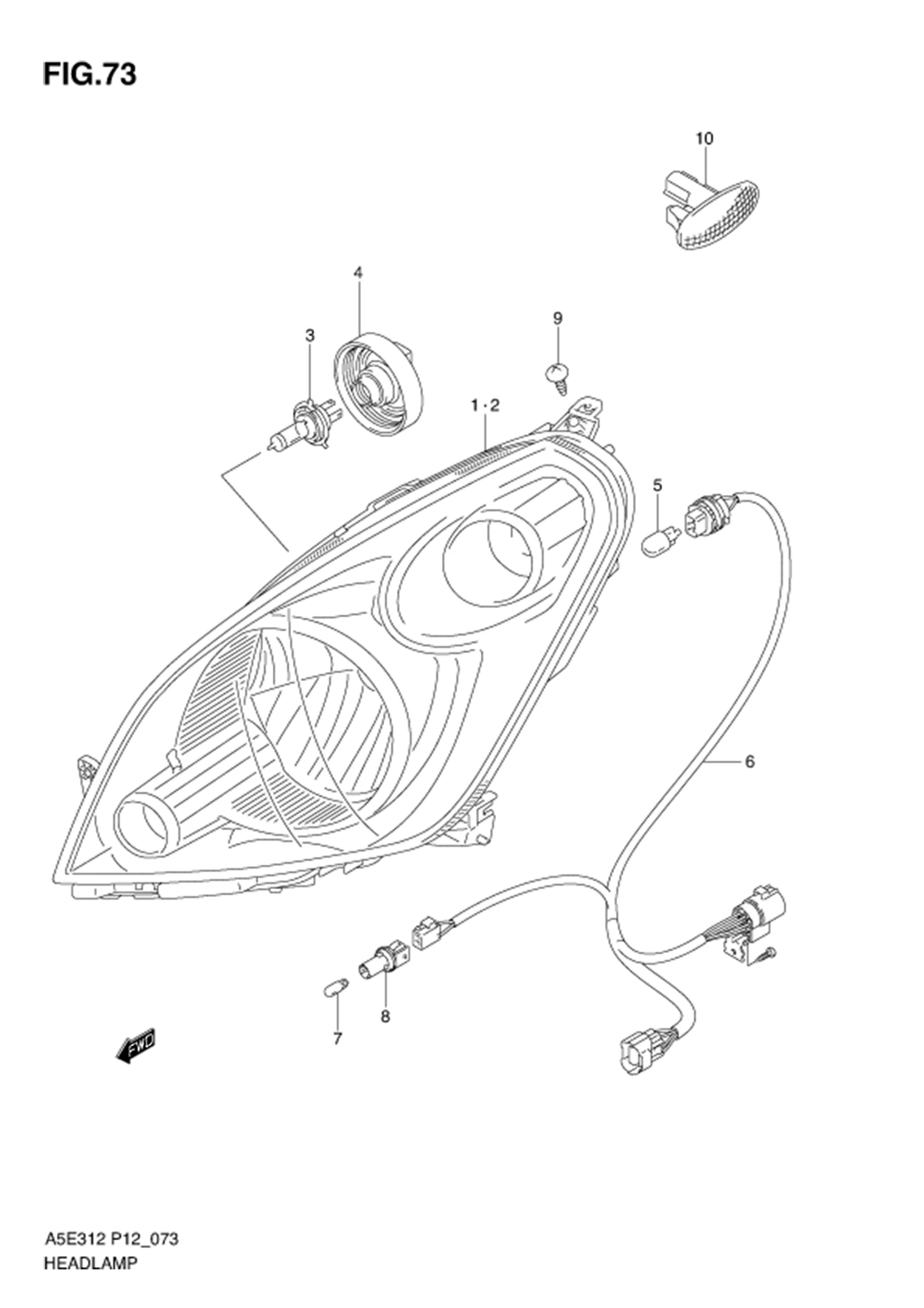

FIG.73 HEADLAMP

FIG.73 HEADLAMP
No No. Part Description Qty Price Per Pcs Remarks
1-1 35120M83K00-000 UNIT,HEADLAMP RH 1 Rp1.582.000 TYPE 1
1-2 35121M83K11-000
SUB: 35120M83K10-000		 UNIT,HEADLAMP RH 1 Rp1.728.500 TYPE 2
2-1 35320M83K00-000 UNIT,HEADLAMP LH 1 Rp1.582.000 TYPE 1
2-2 35321M83K11-000
SUB: 35320M83K10-000		 UNIT,HEADLAMP LH 1 Rp1.728.500 TYPE 2
3 09471-12182-000
SUB: 09471B12182N000		 BULB (12V,60/55W H4) 2 Rp70.000
4 35179M83K00-000 COVER,SOCKET 2 Rp61.500
5 09471-12202-000 BULB (12V,21W)(AMBER) 2 Rp78.000
6 35618M83K00-000 CORD ASSY 2 Rp318.500
7 09471-12081-000
SUB: 09471B12081N000		 BULB (12V,5W) 2 Rp11.000
8 36118M83K00-000 SOCKET,POSITION LAMP 2 Rp31.500
9 09122-76006-000 SCREW (6X16) 6 Rp13.000
10 36410M67K00-000 LAMP ASSY,SIDE TURNSIGNAL 2 Rp72.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
