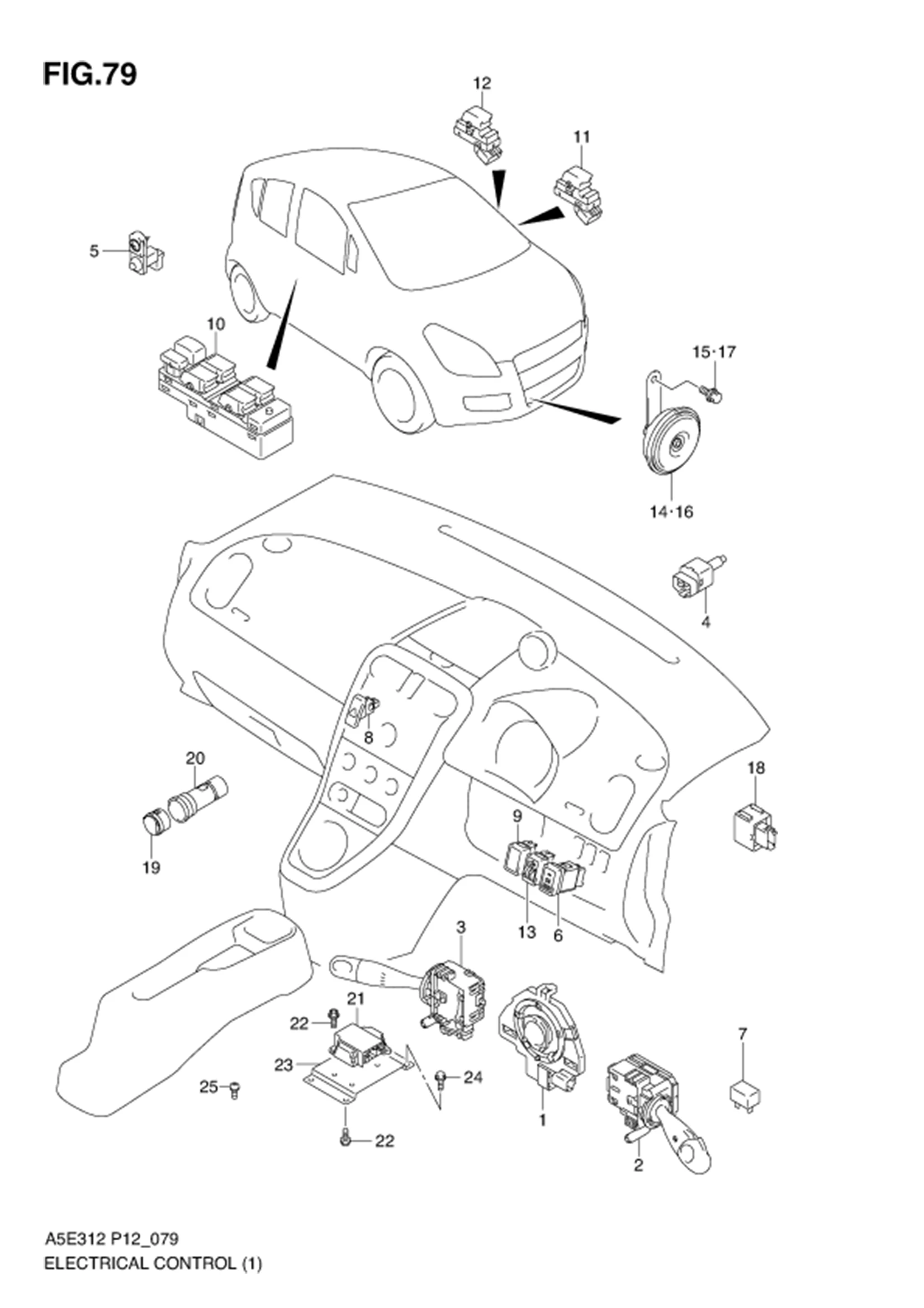

FIG.79 ELECTRICAL CONTROL (TYPE 1)

FIG.79 ELECTRICAL CONTROL (TYPE 1)
No No. Part Description Qty Price Per Pcs Remarks
1 37485M55K00-000 BODY ASSY,CANCEL CAM & HORN 1 Rp218.000
2 37210M75J00-000 SWITCH ASSY,LIGHTING & TURN SIGNAL 1 Rp463.000
3 37310M75J00-000 SWITCH ASSY,WIPER & WASHER 1 Rp504.000
4 37740M76G00-000
SUB: 37740M79G00-000		 SWITCH ASSY,STOP LAMP 1 Rp105.500
5 37670M55K00-000 SWITCH ASSY,DOOR 4 Rp81.000
6 37270M75J20-000 SWITCH ASSY,FRONT FOG LAMP 1 Rp165.500
7 38860-76F01-000
SUB: 38860M79F00-000		 RELAY,FRONT FOG LAMP 1 Rp47.000
8 37430M75J00-P4Z SWITCH ASSY,HAZARD WARNING (GRAY) 1 Rp178.500
9 37285-75J00-000
SUB: 37285M75J00-000		 CAP,OPTION SWITCH HOLE 0 Rp11.000
10 37990M75J10-000 SWITCH ASSY,POWER WINDOW MAIN 1 Rp1.015.000
11 37995M75J00-000 SWITCH ASSY,POWER WINDOW SUB 1 Rp178.000
12 37995M75J00-000 SWITCH ASSY,POWER WINDOW REAR 2 Rp178.000
13 35180M68K20-000 SWITCH ASSY,HEADLAMP LEVELING 1 Rp168.500
14 38500M83K00-000 HORN ASSY,LOW PITCHED 1 Rp170.000
15 09115-08001-000 BOLT (8X18) 1 Rp21.500
16 38500M83K10-000 HORN ASSY,HIGH PITCHED 1 Rp180.000
17 01580-0820A-000 BOLT 1 Rp32.000
18 38610M75J10-000
SUB: 38610M75J00-000		 RELAY,TURN & 4WAY 1 Rp368.000
19 DISCONTINUE
SUB: 39420M75J00-000		 BODY,ACCESSORY SOCKET 1 -
20 39441M75J01-P4Z COVER,ACCESSORY SOCKET 1 Rp27.000
21 38720M83K22-000
SUB: 38720M83K01-000		 CONTROLLER ASSY,POWER STEERING 1 Rp6.402.000
22 02162-0508A-000
SUB: 02162B0508AN000		 SCREW 4 Rp3.500
23 38721M51K00-000 BRACKET,POWER STEERING 1 Rp24.500
24 09115-06005-000 BOLT (6X16) 4 Rp14.000
25 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 3 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
