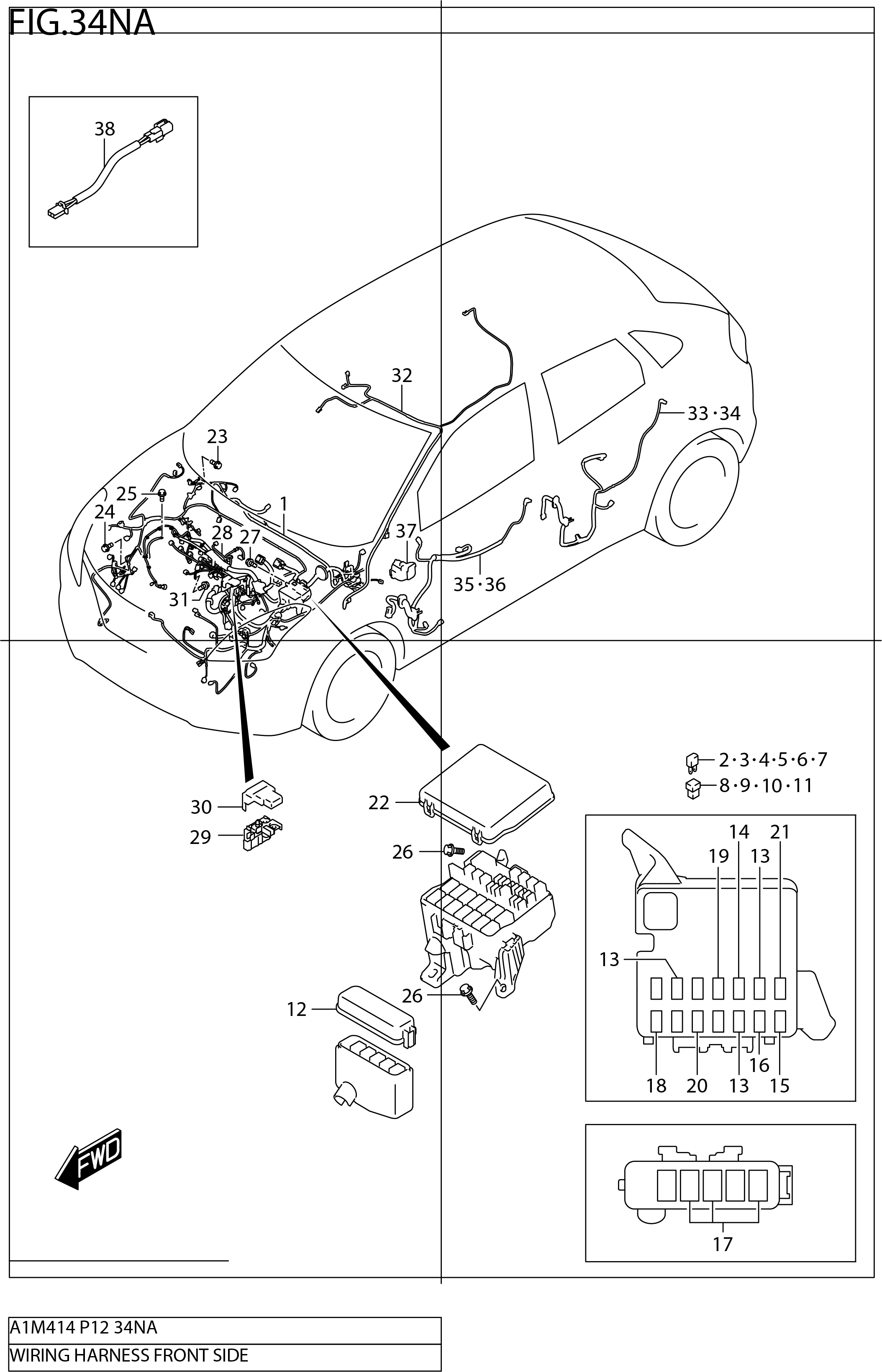

FIG.34NA WIRING HARNESS FRONT SIDE

FIG.34NA WIRING HARNESS FRONT SIDE
No No. Part Description Qty Price Per Pcs Remarks
1-2 36610M50SE0-000 HARNESS ASSY, MAIN 1 Rp6.241.000 4AT
1-1 36610M50SD0-000 HARNESS ASSY, MAIN 1 Rp6.241.000 5MT
2 09481-05501-000 .FUSE (5A) 1 Rp17.000
3 09481-10504-000 .FUSE (10A) 1 Rp12.500
4-1 09481-15504-000 .FUSE (15A) 5 Rp13.000 5MT
4-2 09481-15504-000 .FUSE (15A) 6 Rp13.000 4AT
5 09481-20504-000 .FUSE (20A) 1 Rp14.500
6 09481-25504-000 .FUSE (25A) 2 Rp17.500
7 09481-30504-000 .FUSE (30A) 1 Rp15.000
8 09481-30403-000 .FUSE (30A) 3 Rp41.000
9 09481-40403-000 .FUSE (40A) 3 Rp51.500
10 09481-50403-000 .FUSE (50A) 1 Rp51.000
11 09481-60403-000 .FUSE (60A) 1 Rp52.000
12 36717M68P10-000 .COVER, SUB RELAY BOX 1 Rp95.000
13 38860M76M00-000 .RELAY ASSY 3 Rp58.500 RDTR
14-1 38860M76M00-000 .RELAY ASSY (DENSO) 1 Rp58.500 HORN
14-2 38860M76M00-000 .RELAY ASSY (INTERFACE MICROSYSTEMS) 1 Rp58.500 HORN
15 38860M76M00-000 .RELAY ASSY 1 Rp58.500 HTR
16-1 38860M76M00-000 .RELAY ASSY (DENSO) 1 Rp58.500 ST
16-2 38860M76M00-000 .RELAY ASSY (INTERFACE MICROSYSTEMS) 1 Rp58.500 ST
17-1 38860M76M00-000 .RELAY ASSY (DENSO) 3 Rp58.500 HEAD LAMP
17-2 38860M76M00-000 .RELAY ASSY (INTERFACE MICROSYSTEMS) 3 Rp58.500 HEAD LAMP
18 38860M76M00-000 RELAY ASSY 1 Rp58.500
19 38860M76M00-000 RELAY ASSY 1 Rp58.500
20-1 38860M76M00-000 RELAY ASSY (DENSO) 1 Rp58.500 FR FOG
20-2 38860M76M00-000 RELAY ASSY (INTERFACE MICROSYSTEMS) 1 Rp58.500 FR FOG
21-2 38860M76M00-000 RELAY ASSY (INTERFACE MICROSYSTEMS) 1 Rp58.500 A/C
21-1 38860M76M00-000 RELAY ASSY (DENSO) 1 Rp58.500 A/C
22 36717M50S00-000 COVER, RELAY BOX 1 Rp69.000
23 09115-06005-000 BOLT (6X16) 4 Rp14.000
24 09115-06005-000 BOLT (6X16) 1 Rp14.000
25 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
26 01551-0616C-000 BOLT 2 Rp14.500
27 01551-0616C-000 BOLT 1 Rp14.500
28-1 36650M50S00-000 HARNESS ASSY, ENG 1 Rp3.557.500 5MT
28-2 36650M50S80-000 HARNESS ASSY, ENG 1 Rp3.557.500 4AT
29 36739M66R00-000 .FUSE, BATTERY 1 Rp338.500
30 36694-68K10-000 COVER, BTRY TERMINAL 1 Rp98.000
31 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
32 36820M68P40-000 WIRE, ROOF 1 Rp118.500
33 36751M50S10-000 WIRE, REAR DOOR RH SIDE 1 Rp342.000
34 36751M50SB0-000 WIRE, REAR DOOR LH SIDE 1 Rp342.000
35 36756M50S90-000 WIRE, DR DOOR 1 Rp79.500
36 36757M50S90-000 WIRE, SUB DOOR 1 Rp79.500
37 36759M68P00-000 PROTECTOR, DOOR HARN 2 Rp17.500
38 36691M68P00-000 WIRE, A/B 1 Rp321.000 OPT,SEE SERVICE MANUAL

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
