New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITCONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENER ROOF SIDE AIR BAGROOF LININGMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCKMIRROR/SUNVISOR (W/SUNVISOR MIRROR LAMP)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSORFRONT BUMPER (SOP 2023)BACK DOOR PANEL (W/BACK CAMERA) SOP 2023MIRROR/SUNVISOR(W/SUNVISORMIRRORLAMP) SOP 2023

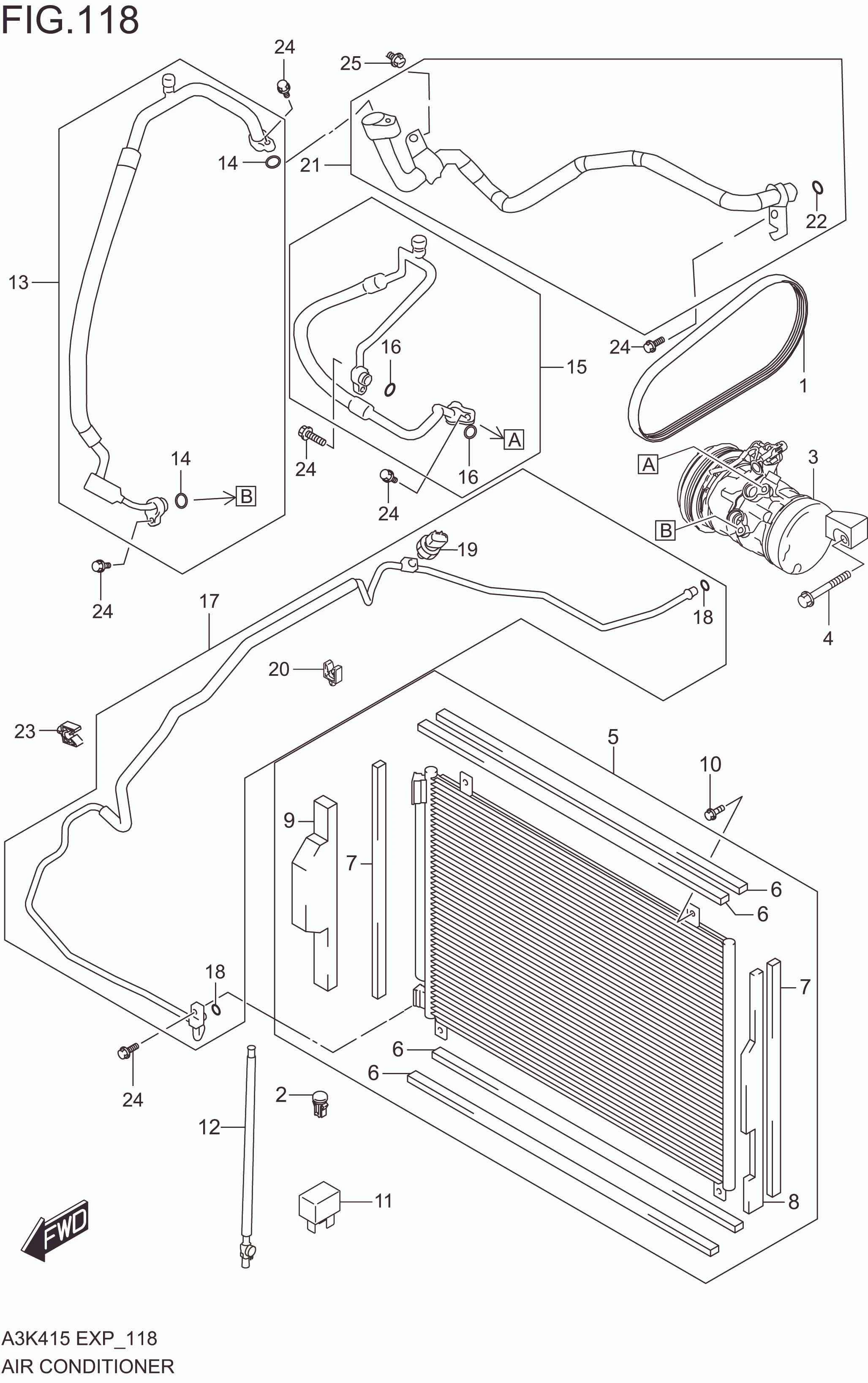

AIR CONDITIONER

AIR CONDITIONER
No No. Part Description Qty Price Per Pcs Remarks
1 95141M68P10-000 V-BELT(4PK) 1 Rp139.000
2 95642-64G20-000 SENSOR,SUN LIGHT 1 Rp578.000
3 95200M55T00-000 COMPRESSOR ASSY 1 Rp6.104.500
4 01550-0850A-000 BOLT 3 Rp3.500
5 95310M55T00-000 CONDENSER ASSY 1 Rp2.024.000
6 95811M55T00-000 .PACKING 4 Rp10.500
7 95812M55T00-000 .PACKING 2 Rp10.500
8 95813M55T00-000 .PACKING 1 Rp15.000
9 95814M55T00-000 .PACKING 1 Rp13.500
10 02162-0612A-000 BOLT,COND 4 Rp11.000
11 38860M76M00-000 RELAY,A/C 1 Rp58.500
12 95647M55T00-000 DUCT,ROOM TEMP SNSR 1 Rp69.500
13 95710M55T00-000 HOSE,SUCTION 1 Rp641.500
14 95896-50G00-000 .O RING 2 Rp19.000
15 95720M55T00-000 HOSE,DISCHARGE 1 Rp462.000
16 95895-50G00-000 .O RING 2 Rp12.500
17 95731M55T00-000 PIPE,LIQUID 1 Rp842.000
18 95891-50G00-000 .O RING 2 Rp12.500
19 95546M74L10-000 .SENSOR,REFRIGERANT PRESSURE 1 Rp698.000
20 95761M55KA0-000 .CLAMP,LIQUID PIPE 1 Rp19.500
21 95741M55T00-000 PIPE,SUCTION 1 Rp270.500
22 95896-50G00-000 .O RING 1 Rp19.000
23 09403M08331-000
SUB: 09403-08331-000		 CLAMP,LIQUID PIPE 1 Rp6.500
24 01550-0620C-000 BOLT 6 Rp5.500
25 01551-0612C-000 BOLT 1 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
