New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITCONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENER ROOF SIDE AIR BAGROOF LININGMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCKMIRROR/SUNVISOR (W/SUNVISOR MIRROR LAMP)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSORFRONT BUMPER (SOP 2023)BACK DOOR PANEL (W/BACK CAMERA) SOP 2023MIRROR/SUNVISOR(W/SUNVISORMIRRORLAMP) SOP 2023

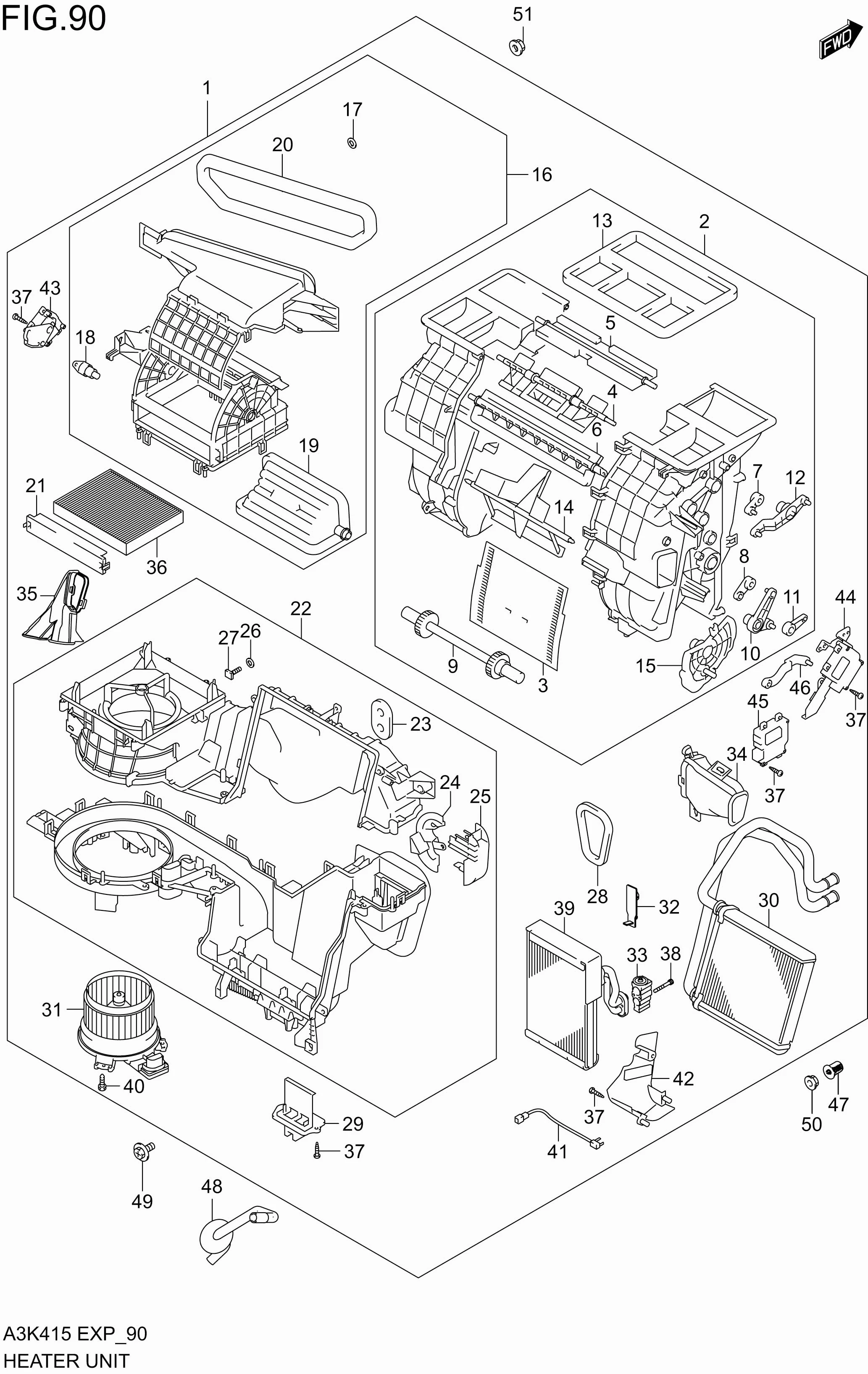

HEATER UNIT

HEATER UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 74100M55T30-000 HVAC 1 Rp9.656.500
2 74110M55R60-000 .CASE, HEATER 1 Rp673.000
3 74178M79M00-000 ..DOOR, A/M 1 Rp187.500
4 74171M68P00-000 ..DOOR ASSY 1 Rp44.000
5 74172M68P00-000 ..DOOR ASSY 1 Rp61.500
6 74173M68P00-000 ..DOOR ASSY 1 Rp49.500
7 74191M68P00-000 ..LEVER 1 Rp6.500
8 74193M68P00-000 ..LEVER 1 Rp10.500
9 74197M68P00-000 ..SHAFT 1 Rp10.500
10 74192M68P10-000 ..LEVER 1 Rp11.000
11 74194M68P00-000 ..LEVER 1 Rp6.500
12 74195M68P10-000 ..LEVER 1 Rp11.500
13 74116M68P20-000 ..PACKING 1 Rp37.000
14 74113M68P00-000 ..DUCT, AIR 1 Rp15.000
15 74181M68P90-000 ..LEVER, PLATE 1 Rp13.000
16 74210M55T30-000 .CASE, BLOWER 1 Rp483.500
17 74119-78F10-000 ..BUSH 1 Rp8.000
18 74281M55R60-000 ..LEVER 1 Rp13.500
19 74176M68P00-000 ..DOOR ASSY 1 Rp54.500
20 74119M68P20-000 ..PACKING 1 Rp27.000
21 74214M68P00-000 .HOLDER, FILTER 1 Rp18.500
22 74220M55T30-000 .CASE BLOWER 1 Rp507.500
23 74118-63J01-000 ..PACKING, HTR PIPE 1 Rp74.000
24 74221M68P00-000 ..BRACKET 1 Rp17.000
25 74222M68P00-000 ..BRACKET 1 Rp19.500
26 74119-78F10-000 ..BUSH 1 Rp8.000
27 74119M79M00-000 ..BOLT 3 Rp9.000
28 74117M79M00-000 .PACKING 1 Rp41.000
29 95626-79M00-000 .POWER TRANSISTOR ASSY, BLO 1 Rp411.500
30 74120M55R00-000 .CORE S/ASSY, HTR 1 Rp866.000
31 74150M55T30-000 .MOTOR ASSY WITH FAN 1 Rp2.196.500
32 74661M66L00-000 .PLUG 1 Rp9.000
33 95431M67P00-000 .VALE EXPANSIION 1 Rp591.500
34 74114M68P20-000 .DUCT, S/ASSY AIR 1 Rp19.500
35 74115M55R00-000 .DUCT, S/ASSY AIR 1 Rp22.500
36 95850M55R00-000 .FILTER ASSY 1 Rp159.000
37 03112-0416A-000 .SCREW 22 Rp23.500
38 74134-58J00-000 .BOLT, EXPANSION 2 Rp14.000
39 95411M56R00-000 .EVAPORATOR SUB ASSY 1 Rp1.297.000
40 74135-82000-000 .SCREW, MOTOR 3 Rp19.500
41 95541M68P20-000 .THERMISTER ASSY 1 Rp255.500
42 74131M55R00-000 .COVER 1 Rp12.500
43 95655M68P90-000 .SERVO & ACC ASSY 1 Rp508.500
44 95653M68P90-000 .SERVO MOTOR ASSY, W/ACC 1 Rp526.500
45 95654M68P90-000 .SERVO MOTOR ASSY, W/ACC 1 Rp481.500
46 74196M68P90-000 .ROD 1 Rp11.500
47 75162M63H10-000 CAP 1 Rp8.000
48 95481M55R01-000 HOSE, DRAIN 1 Rp47.500
49 09122-76003-000 BOLT 1 Rp15.000
50 09159-06086-000 NUT 3 Rp26.500
51 09159-06081-000 NUT 1 Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
