New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITCONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENER ROOF SIDE AIR BAGROOF LININGMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCKMIRROR/SUNVISOR (W/SUNVISOR MIRROR LAMP)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSORFRONT BUMPER (SOP 2023)BACK DOOR PANEL (W/BACK CAMERA) SOP 2023MIRROR/SUNVISOR(W/SUNVISORMIRRORLAMP) SOP 2023

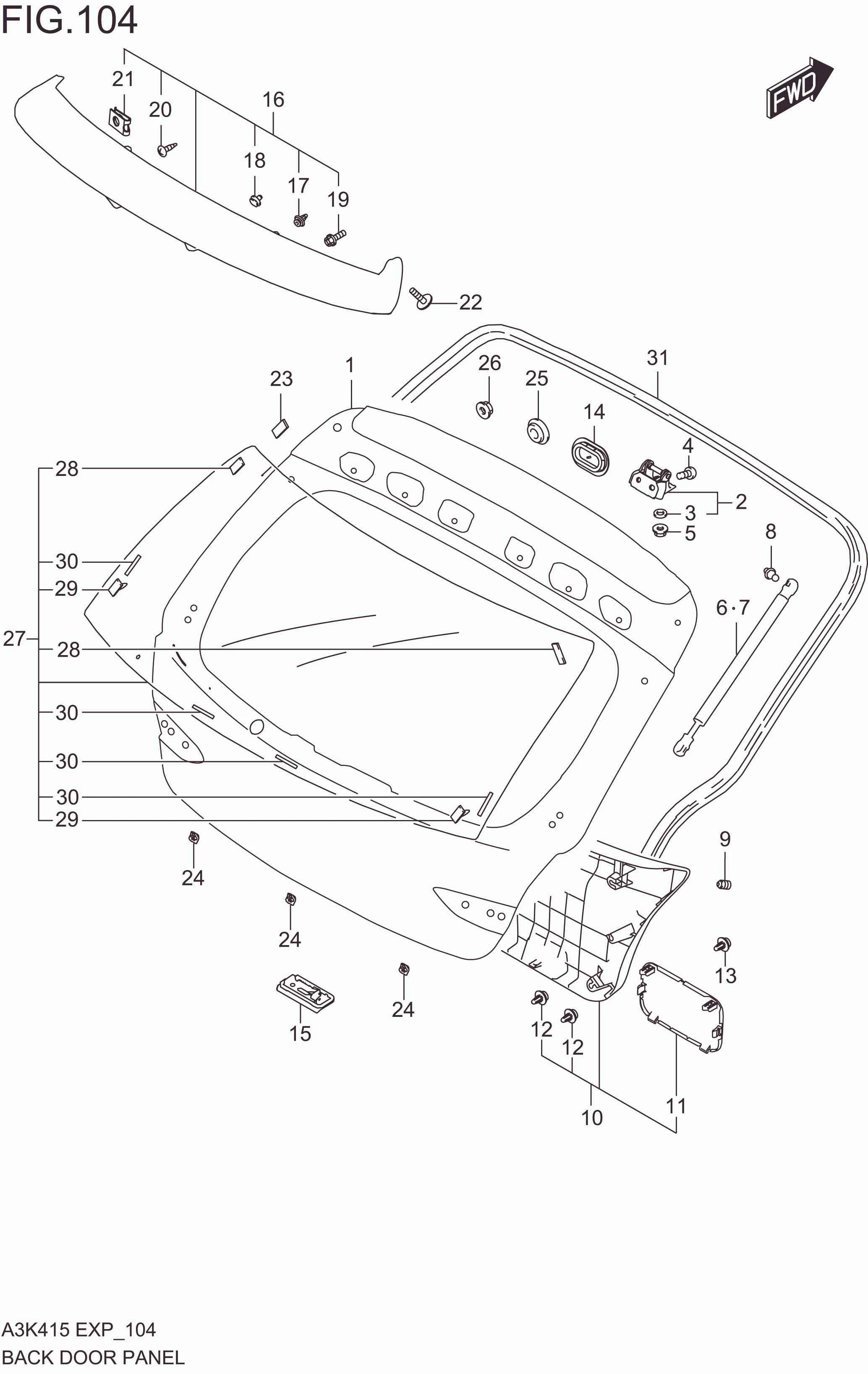

BACK DOOR PANEL

BACK DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 69100M55T00-000 PANEL ASSY, BACK DOOR 1 Rp4.117.500
2 69510M68P01-000 HINGE, BACK DOOR 2 Rp62.500
3 69571M76G00-000
SUB: 69571-76G00-000		 .PACKING, BACK DR HINGE FEMALE 2 Rp6.500
4 09111M06115-000
SUB: 09111-06115-000		 BOLT 4 Rp5.500
5 08361-2508A-000 NUT 2 Rp16.500
6 81850M55T00-000 BALANCER, BACK DOOR RH 1 Rp284.000
7 81860M55T00-000 BALANCER, BACK DOOR LH 1 Rp284.000
8 81871M55T00-000 BALLSTUD, BACK DOOR BALANCER 4 Rp32.000
9 82683M81R00-000 CUSHION, BACK DOOR 4 Rp12.500
10 83770M55T00-5PK TRIM, BACK DOOR (BLACK) 1 Rp275.000
11 83772M55T00-5PK .CAP, BACK DOOR TRIM (BLACK) 1 Rp15.000
12 09409M10321-000 .CLIP 12 Rp5.000
13 09409-07340-000 CLIP 1 Rp17.500
14 36994M68K00-000 CAP, BACK DOOR INNER NO.2 3 Rp10.500
15 83970M55T10-000 HOLDER, BACK DOOR SWITCH 1 Rp26.500
16-7 839A0M55T10-ZHJ SPOILER ASSY, BACK DOOR (WHITE) 1 Rp1.585.500
16-6 839A0M55T10-ZAM SPOILER ASSY, BACK DOOR (BLACK) 1 Rp1.482.500
16-5 839A0M55T10-WBJ SPOILER ASSY, BACK DOOR (BEIGE) 1 Rp1.482.500
16-4 839A0M55T10-WBH SPOILER ASSY, BACK DOOR (BLUE) 1 Rp1.585.500
16-2 839A0M55T10-WBF SPOILER ASSY, BACK DOOR (GREY) 1 Rp1.585.500
16-1 839A0M55T10-WBE SPOILER ASSY, BACK DOOR (SILVER) 1 Rp1.575.500
16-3 839A0M55T10-WBG SPOILER ASSY, BACK DOOR (RED) 1 Rp1.585.500
17 71812M78F00-000
SUB: 71812M60M00-000		 .CLIP, BACK DOOR SPOILER 4 Rp8.000
18 775A2M55T00-000 .NUT, BACK DOOR SPOILER 2 Rp18.000
19 83947M66R00-000 .BOLT BACK DOOR SPOILER 2 Rp9.000
20 03541-0412A-000 .SCREW 2 Rp3.500
21 DISCONTINUE
SUB: 09148-05052-000		 .NUT 2 -
22 83915-73P01-000 BOLT, BACK DOOR SPOILER 2 Rp37.500
23 84515M65D10-000 FEMALE, GLASS FASTENER NO.2 2 Rp22.000
24 83994M72R00-000 CAP, BACK DOOR DRAIN HOLE 3 Rp7.000
25 09250M20031-000 CAP (OD:25.8) 1 Rp4.500
26 08316-1006A-000 NUT 2 Rp2.000
27 84570M55T10-000 GLASS, BACK DOOR WINDOW 1 Rp1.039.500
28 84513M75J00-000 .MALE, GLASS FASTENER NO.2 2 Rp8.500
29 84575M74L00-000 .CLIP, GLASS FASTENER 2 Rp16.000
30 84617M60M00-000 .SPACER, BACK DOOR WINDOW 4 Rp4.500
31 84681M55T00-000 WEATHERSTRIP, BACK DOOR OPNG 1 Rp339.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
