New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITCONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENER ROOF SIDE AIR BAGROOF LININGMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCKMIRROR/SUNVISOR (W/SUNVISOR MIRROR LAMP)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSORFRONT BUMPER (SOP 2023)BACK DOOR PANEL (W/BACK CAMERA) SOP 2023MIRROR/SUNVISOR(W/SUNVISORMIRRORLAMP) SOP 2023

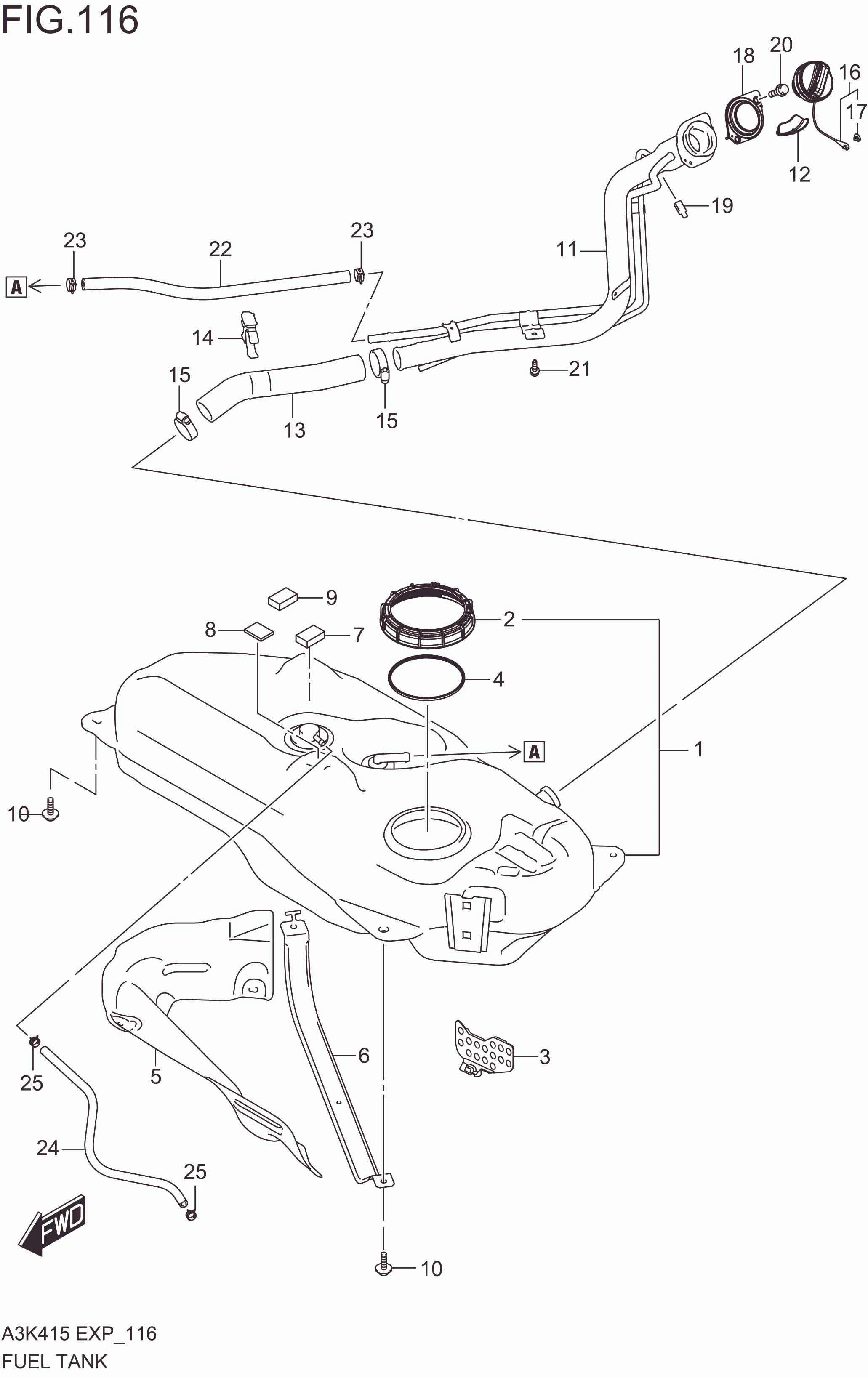

FUEL TANK

FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 89100M68830-000 TANK, FUEL 1 Rp2.958.500
2 89191M66R00-000 .NUT, FUEL PUMP LOCK 1 Rp75.500
3 89185M68P00-000 PLATE, FUEL TANK BAFFLE 1 Rp144.000
4 89192-62J00-000 O-RING, FUEL PUMP 1 Rp313.500
5 89311M68P00-000 INSULATOR, HEAT 1 Rp343.500
6 89363M68P00-000 BELT, FUEL TANK SUPPORT 1 Rp91.500
7 89385M66R00-000 PAD, FUEL TANK 1 Rp73.000
8 89385-76M00-000 PAD, FUEL TANK 1 Rp359.000
9 89387M68P00-000 PAD, FUEL TANK 1 Rp82.500
10 89199M68P00-000 BOLT, FUEL TANK FIXER 4 Rp13.500
11 89210M55T10-000 NECK, FUEL FILLER 1 Rp1.321.000
12 89232M74L00-000 COVER, FUEL FILLER NECK 1 Rp11.000
13 89241M68P00-000 HOSE, FUEL TANK FILLER 1 Rp218.000
14 89242M68P00-000 CLAMP, FILLER & BREATHER HOSE 1 Rp12.500
15 89243M68PA0-000 CLAMP, FUEL FILLER HOSE 2 Rp41.000
16 89260M60MA0-000 CAP ASSY, FUEL FILLER 1 Rp599.500
17 89267M60M00-000 .CLIP, CAP TETHER 1 Rp14.000
18 89285M58J00-000
SUB: 89285-58J00-000		 PACKING, FUEL FILLER 1 Rp13.500
19 89481M68P00-000 FILTER, AIR SUCTION 1 Rp8.500
20 09116-05023-000 BOLT (5X20) 2 Rp18.500
21 DISCONTINUE
SUB: 09116-06205-000		 BOLT (6X16) 1 -
22 09355M11189-440 HOSE, FUEL TANK BREATHER 1 Rp134.500
23 09401M16L01-000 CLIP 2 Rp9.000
24 18888M75J00-520 HOSE, FUEL EVAP 1 Rp45.000
25 09401M11432-000 CLIP (ID:11.1) 2 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
