New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITCONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENER ROOF SIDE AIR BAGROOF LININGMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCKMIRROR/SUNVISOR (W/SUNVISOR MIRROR LAMP)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSORFRONT BUMPER (SOP 2023)BACK DOOR PANEL (W/BACK CAMERA) SOP 2023MIRROR/SUNVISOR(W/SUNVISORMIRRORLAMP) SOP 2023

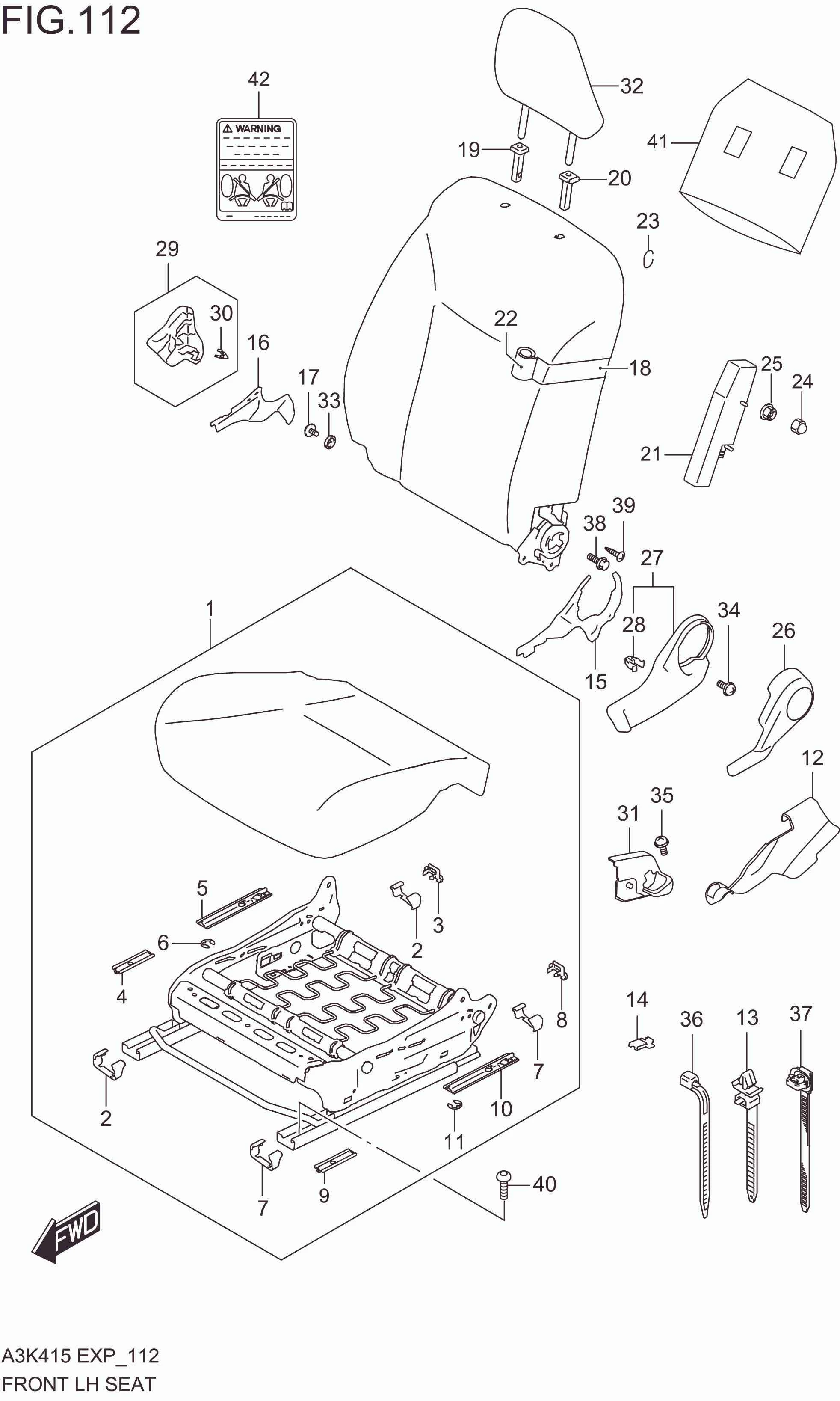

FRONT LH SEAT

FRONT LH SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 85102M55T00-EPG CUSHION ASSY, FR LH 1 Rp6.450.500
2 86652M74P50-000 .CAP, FR ADJUSTER LOWER 2 Rp5.500
3 86653M74P50-000 .CAP, FR ADJUSTER UPPER 1 Rp5.500
4 86656M68P00-000 .PROTECTOR, FR ADJUSTER FRONT 1 Rp15.000
5 86657-68P00-000 .PROTECTOR, FR ADJUSTER REAR 1 Rp10.000
6 86658-68P00-000 .RING, FR ADJUSTER REAR 2 Rp6.500
7 86652M74P50-000 .CAP, FR ADJUSTER LOWER 2 Rp5.500
8 86653M74P50-000 .CAP, FR ADJUSTER UPPER 1 Rp5.500
9 86656M68P00-000 .PROTECTOR, FR ADJUSTER FRONT 1 Rp15.000
10 86657-68P00-000 .PROTECTOR, FR ADJUSTER REAR 1 Rp10.000
11 86658-68P00-000 .RING, FR ADJUSTER 2 Rp6.500
12 85726M81R00-000 .SUPPORT, FR CUSH PAD LOWER LH 1 Rp175.000
13 85191M74L00-000 CLAMP 1 Rp9.000
14 85192-74P00-000 HOLDER, HARNESS 1 Rp6.500
15 85242-68P00-5PK COVER, FR RCLNG INSIDE LOWER LH (BLACK) 1 Rp10.500
16 85242M68P10-5PK COVER, FR RCLNG INSIDE LOWER LH (BLACK) 1 Rp23.000
17 85295-58J01-000 BOLT, FR BACK FIX 1 Rp34.000
18 85306M55TA0-000 BACK S/ASSY, FR LH 1 Rp3.174.500
19 85341M68P00-5PK GUIDE, HEADRESTRAINT (BLACK) 1 Rp15.000
20 85840M68P00-5PK GUIDE, HEADRESTRAINT (BLACK) 1 Rp31.000
21 85850M55T00-000 MODULE ASSY, SIDE AIR BAG 1 Rp1.798.500
22 85880M55TC0-EPG TRIM, FR BACK LH 1 Rp1.107.500
23 09387-19001-000 RING (OD:22.6) 16 Rp9.000
24 08313-2006A-000 NUT 1 Rp14.000
25 08319-3106A-000 NUT 2 Rp6.500
26 85711M76T00-5PK KNOB, RCLNG LH (BLACK) 1 Rp110.500
27 85720M52R00-5PK COVER, FR RCLNG OUTSIDE LH (BLACK) 1 Rp34.000
28 85249M68P00-000 .CLIP 1 Rp9.500
29 85741-68P10-5PK COVER, FR RCLNG INSIDE LH (BLACK) 1 Rp11.500
30 85249M68P00-000 .CLIP 1 Rp9.500
31 85780M73S00-000 COVER, FR HARNESS BRKT LH 1 Rp12.000
32 86401M72R00-EPH HEADRESTRAINT ASSY, FR (BLACK) 1 Rp775.500
33 87286-81P00-000 BUSH, FR BACK FIX 1 Rp37.000
34 09132-04037-000 SCREW 1 Rp15.000
35 09132-04037-000 SCREW 1 Rp15.000
36 36990-25G00-000
SUB: 09407-14403-000		 CLAMP 1 Rp13.000
37 09407M17404-000 CLAMP 1 Rp8.500
38 01550-1016A-000 BOLT 2 Rp5.500
39 03541-0410A-000 SCREW 2 Rp11.000
40 09119M08118-000 BOLT (8X25) 4 Rp6.500
41 85369-73R00-000 SILENCER, FR BACK 1 Rp42.000
42 DISCONTINUE
SUB: 85354-59JC1-000		 LABEL, SIDE AIRBAG 1 - NOTE :SPECIAL PROCEDURES ARE REQUIRED FOR SERVICING OR REPLACING , AN AIR BAG. FOR THAT REASON, ONLY A FACTORY-AUTHORIZED DEALER

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
