New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITCONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENER ROOF SIDE AIR BAGROOF LININGMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCKMIRROR/SUNVISOR (W/SUNVISOR MIRROR LAMP)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSORFRONT BUMPER (SOP 2023)BACK DOOR PANEL (W/BACK CAMERA) SOP 2023MIRROR/SUNVISOR(W/SUNVISORMIRRORLAMP) SOP 2023

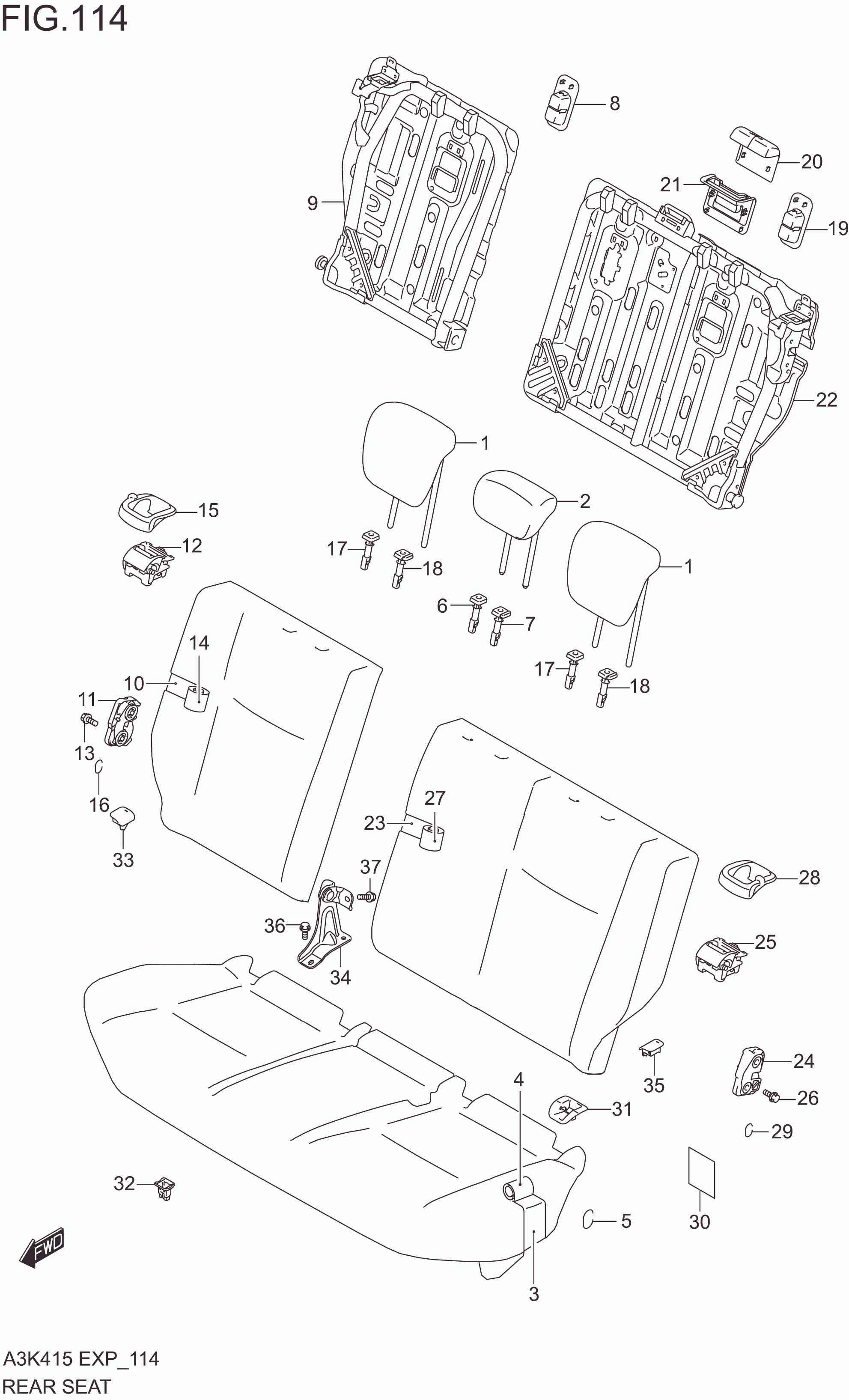

REAR SEAT

REAR SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 86401M68P10-EPH HEADRESTRAINT ASSY, RR (BLACK) 2 Rp609.500
2 86401M68P20-EPH HEADRESTRAINT ASSY, RR CTR (BLACK) 1 Rp523.500
3 87160M55T00-000 PAD, RR CUSH 1 Rp2.280.500
4 87180M55T00-EPQ TRIM, RR CUSH (BLACK) 1 Rp1.069.500
5 09387-19001-000 RING (OD:22.6) 63 Rp9.000
6 85341M79M10-5PK GUIDE, HEADRESTRAINT (BLACK) 1 Rp9.500
7 85840M79M20-5PK GUIDE, HEADRESTRAINT (BLACK) 1 Rp11.000
8 87225M68P00-5PK COVER, TETHER ANCHOR (BLACK) 1 Rp20.500
9 87310M55TG0-000 FRAME, RR BACK RH 1 Rp1.592.000
10 87360M55TG0-000 PAD, RR BACK RH 1 Rp766.500
11 87480M83P00-000 LOCK ASSY, RR BACK LH 1 Rp470.500
12 87481M68PB0-5PK KNOB, RR BACK LOCK RH (BLACK) 1 Rp97.000
13 01550-0835A-000 BOLT 2 Rp3.500
14 87380M55TG0-EPQ TRIM, RR BACK RH (BLACK) 1 Rp750.000
15 87482M55T00-5PK BEZEL, RR BACK LOCK RH (BLACK) 1 Rp22.500
16 09387-19001-000 RING (OD:22.6) 14 Rp9.000
17 85341M79M10-5PK GUIDE, HEADRESTRAINT (BLACK) 2 Rp9.500
18 85840M79M20-5PK GUIDE, HEADRESTRAINT (BLACK) 2 Rp11.000
19 87225M68P00-5PK COVER, TETHER ANCHOR (BLACK) 1 Rp20.500
20 87227M68PA0-5PK COVER, SHOULDER ANCHOR (BLACK) 1 Rp42.000
21 87321M55T00-000 COVER, SHOULDER ANCHOR INNER 1 Rp26.500
22 87810M55TG0-000 FRAME, RR BACK LH 1 Rp1.964.500
23 87860M55TG0-000 PAD, RR BACK LH 1 Rp844.500
24 87980M83P00-000 LOCK ASSY, RR BACK LH 1 Rp470.500
25 87981M68PB0-5PK KNOB, RR BACK LOCK LH (BLACK) 1 Rp97.000
26 01550-0835A-000 BOLT 2 Rp3.500
27 87880M55TG0-EPQ TRIM, RR BACK LH (BLACK) 1 Rp558.500
28 87982M55T00-5PK BEZEL, RR BACK LOCK LH (BLACK) 1 Rp22.500
29 09387-19001-000 RING (OD:22.6) 13 Rp9.000
30 77151-82000-000 SEAL, RR SIDE TONGUE HOLE 2 Rp7.000
31 87228M68P00-5PK BEZEL, LOWER ANCHOR (BLACK) 4 Rp17.500
32 87460-76G11-000
SUB: 87460-76G01-000		 HOOK, RR SEAT CUSH 2 Rp39.000
33 87491M68P10-5PK COVER, RR SEAT HINGE RH (BLACK) 1 Rp10.000
34 87950M55R00-000 HINGE, RR CENTER 1 Rp154.000
35 87991M68P10-5PK COVER, RR SEAT HINGE LH (BLACK) 1 Rp10.000
36 01551-1025A-000 BOLT 2 Rp29.000
37 01551-1025A-000 BOLT 2 Rp29.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
