New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITCONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENER ROOF SIDE AIR BAGROOF LININGMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCKMIRROR/SUNVISOR (W/SUNVISOR MIRROR LAMP)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSORFRONT BUMPER (SOP 2023)BACK DOOR PANEL (W/BACK CAMERA) SOP 2023MIRROR/SUNVISOR(W/SUNVISORMIRRORLAMP) SOP 2023

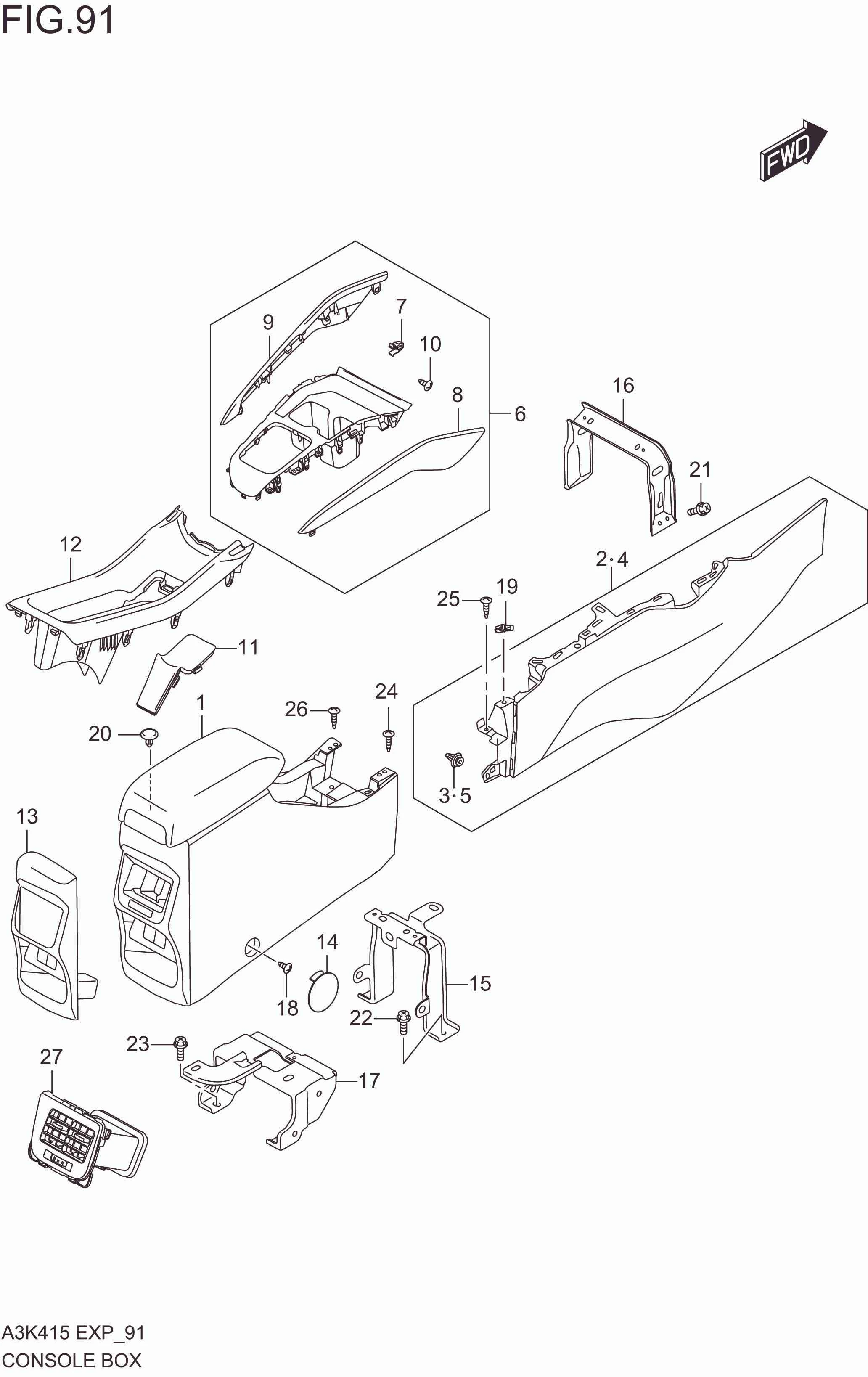

CONSOLE BOX

CONSOLE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 75850M55T00-5PK BOX, FLOOR CONSOLE RR (BLACK) 1 Rp1.539.500
2 75810M55T00-5PK COVER, FLOOR CSL FR RH (BLACK) 1 Rp207.500
3 09409M10321-000 .CLIP 2 Rp5.000
4 75820M55T00-5PK COVER, FLOOR CSL FR LH (BLACK) 1 Rp207.500
5 09409M10321-000 .CLIP 2 Rp5.000
6 75830M55T10-BHY GARNISH, FLOOR CONSOLE (BLACK/GRAY) 1 Rp365.500
7 09409-08351-000 .CLIP 2 Rp21.000
8 75832M55T10-PSG .ORNAMENT, FL CONSOLE GARNISH RH (BLACK) 1 Rp96.500
9 75833M55T10-PSG .ORNAMENT, FL CONSOLE GARNISH LH (BLACK) 1 Rp96.500
10 03541-0410A-000 .SCREW 8 Rp11.000
11 75835M55T00-5PK CAP, FLOOR CONSOLE GARNISH (BLACK) 1 Rp21.000
12 75836M55T10-5PK GARNISH, FLOOR CONSOLE RR (BLACK) 1 Rp82.500
13 75851M55T00-5PK COVER, FLOOR CONSOLE BOX RR (BLACK) 1 Rp67.000
14 75854-72R00-5PK CAP, FLOOR CONSOLE BOX SIDE (BLACK) 2 Rp14.500
15 75880M55T00-000 BRACKET, FL CSL BOX CTR 1 Rp56.500
16 75881M55T00-000 BRACKET, FLOOR CONSOLE COVER FR 1 Rp47.000
17 75890M55T10-000 BRACKET COMP,FL CONSOLE BOX RR 1 Rp60.000
18 09125M05144-000 SCREW 2 Rp7.500
19 09148-05L04-000 NUT 2 Rp7.500
20 09409-06328-000 CLIP 1 Rp20.500
21 02162-0612A-000 SCREW 2 Rp11.000
22 02162-0612A-000 SCREW 2 Rp11.000
23 02162-0612A-000 SCREW 2 Rp11.000
24 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 2 Rp3.500
25 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 4 Rp3.500
26 03541-0516A-000 SCREW 2 Rp3.500
27 73610M56RB0-5PK LOUVER, REAR VENT (BLACK) 1 Rp211.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
